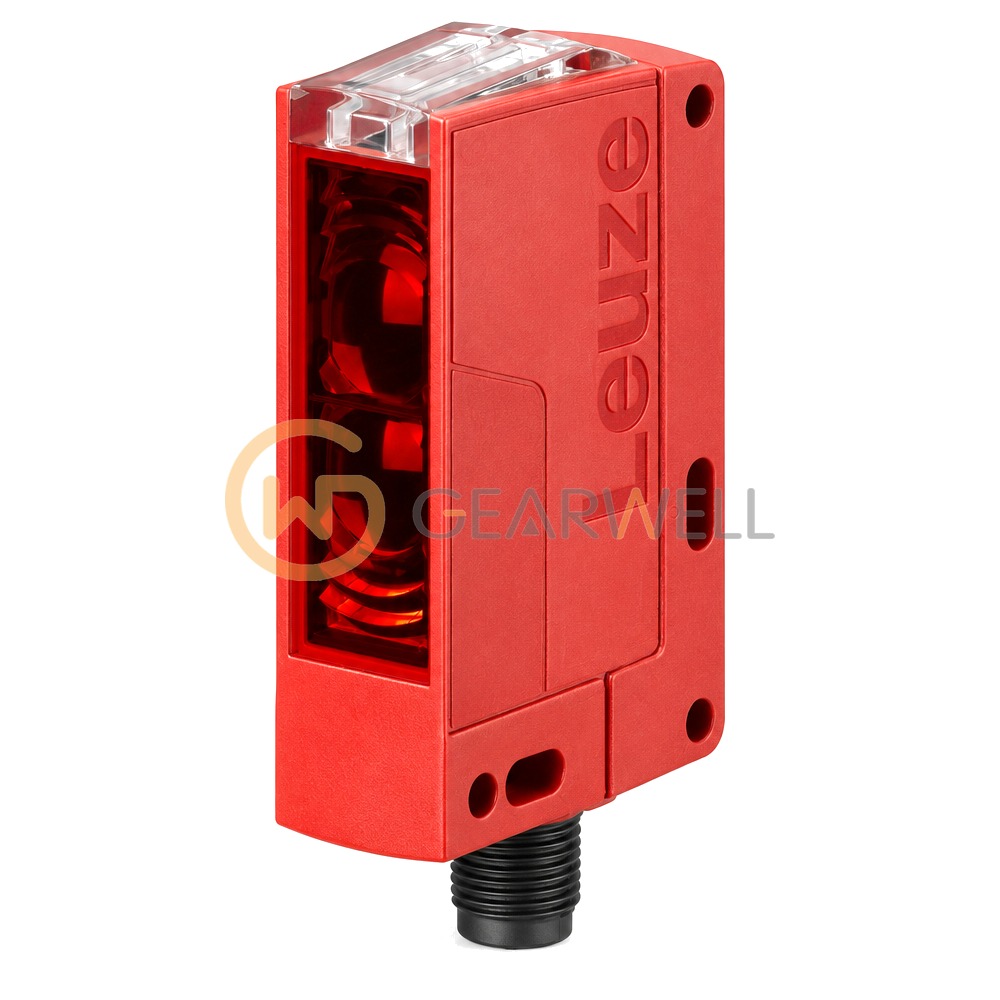

Leuze 50127048 Diffuse Sensor with Background Suppression
- Brand
- Leuze
- Model
- 50127048
- GEARWELL SKU
- GWP-000027341
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Display
- LED
- Fastening
- Through-hole mounting, optional mounting device
- Net weight
- 60 g
- Wavelength
- 630 nm
- Light source
- LED, red
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Leuze 50127048 Diffuse Sensor with Background Suppression |
|---|---|
| Brand | Leuze |
| Model | 50127048 |
| Category | Proximity & Photoelectric Sensors |
| Display | LED |
| Fastening | Through-hole mounting, optional mounting device |
| Net weight | 60 g |
| Wavelength | 630 nm |
| Light source | LED, red |
| Supply voltage | 10 ... 30 V DC, incl. residual ripple |
| Residual ripple | 0 ... 15 % of UB |
| Housing material | Plastic |
| Protection class | III |
| Type designation | HT46C/4P-M12 |
| Operating control | Multi-turn potentiometer |
| Specification note | Specifications from supplier data; please verify against the nameplate before ordering. |
| Lens cover material | Plastic (PMMA) |
| Operating principle | Diffuse with background suppression |
| Degree of protection | IP67, IP69K |
| Dimensions (W x H x L) | 20.5 x 76.3 x 44 mm |
| Open-circuit current | 0 ... 30 mA |
| Operating temperature | -40 ... 60 °C |
