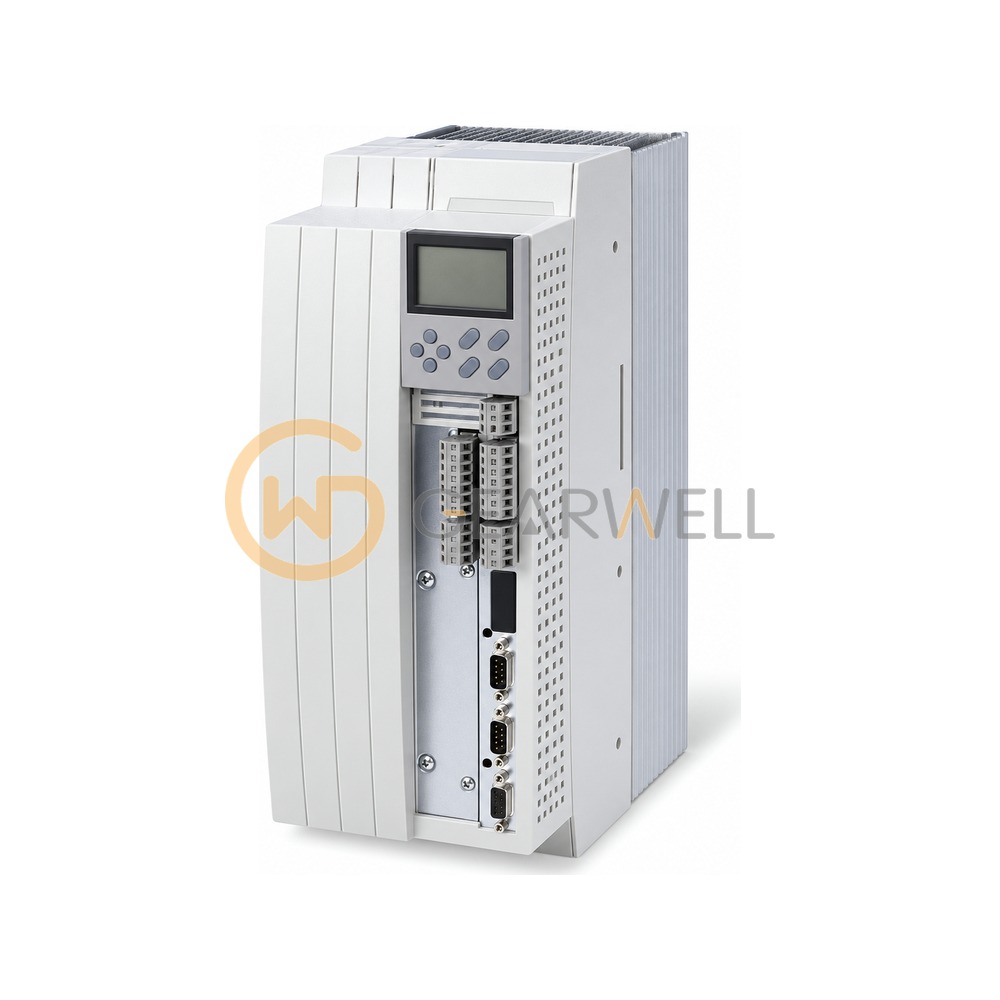

LENZE EVF9326-EV 9300 vector 11 kW Frequency Inverter
- Brand
- LENZE
- Model
- EVF9326-EV
- GEARWELL SKU
- GWP-000015732
- Category
- Variable Frequency Drives
Key specifications
- Mass
- 7.4 kg
- Design
- EVF93xx-EV = standard (panel-mounted) device
- Mains voltage
- 3/PE AC 320 ... 440 V, 45 ... 65 Hz (DC 450 ... 620 V alternatively)
- Output power (2/4 kHz)
- 16.3 kVA
- Max. output current (2/4 kHz)
- 35.0 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | LENZE EVF9326-EV 9300 vector 11 kW Frequency Inverter |
|---|---|
| Brand | LENZE |
| Model | EVF9326-EV |
| Category | Variable Frequency Drives |
| Mass | 7.4 kg |
| Design | EVF93xx-EV = standard (panel-mounted) device |
| Mains voltage | 3/PE AC 320 ... 440 V, 45 ... 65 Hz (DC 450 ... 620 V alternatively) |
| Output power (2/4 kHz) | 16.3 kVA |
| Max. output current (2/4 kHz) | 35.0 A |
| Rated output current (2/4 kHz) | 23.5 A |
| Mains current (with mains choke) | 20.5 A |
| Typical motor power (4-pole ASM, 400 V) | 11.0 kW |
