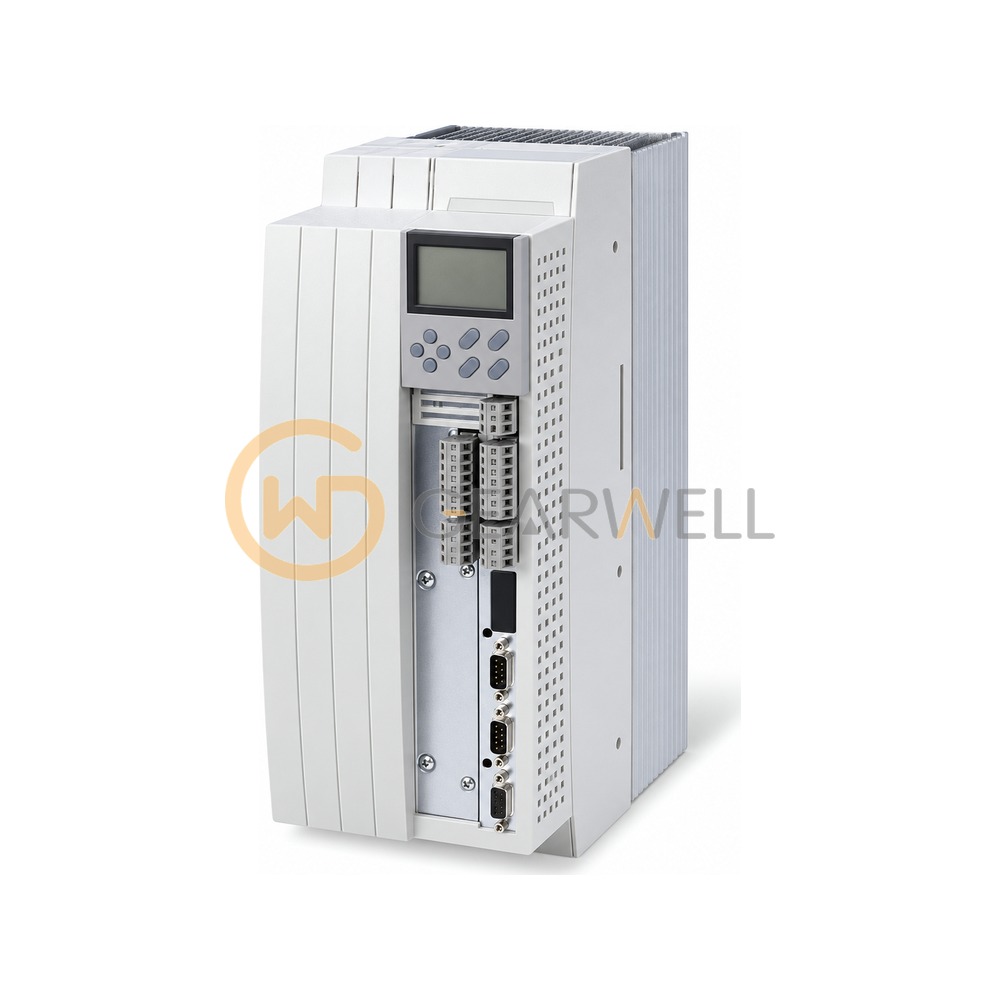

LENZE Evf9325cvv003 9300 vector 5.5 kW Cold-Plate Frequency Inverter
- Brand
- LENZE
- Model
- Evf9325cvv003
- GEARWELL SKU
- GWP-000015731
- Category
- Variable Frequency Drives
Key specifications
- Mass
- 5.2 kg
- Design
- EVF93xx-CV = cold-plate device (variant V003)
- Mains voltage
- 3/PE AC 320 ... 440 V, 45 ... 65 Hz (DC 450 ... 620 V alternatively)
- Manufacturer code
- EVF9325-CVV003
- Output power (2/4 kHz)
- 9.0 kVA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | LENZE Evf9325cvv003 9300 vector 5.5 kW Cold-Plate Frequency Inverter |
|---|---|
| Brand | LENZE |
| Model | Evf9325cvv003 |
| Category | Variable Frequency Drives |
| Mass | 5.2 kg |
| Design | EVF93xx-CV = cold-plate device (variant V003) |
| Mains voltage | 3/PE AC 320 ... 440 V, 45 ... 65 Hz (DC 450 ... 620 V alternatively) |
| Manufacturer code | EVF9325-CVV003 |
| Output power (2/4 kHz) | 9.0 kVA |
| Max. output current (2/4 kHz) | 19.5 A |
| Rated output current (2/4 kHz) | 13.0 A |
| Mains current (with mains choke) | 12.0 A |
| Dimensions cold plate (a x b x d) | 135 x 381 x 168 (e) mm |
| Typical motor power (4-pole ASM, 400 V) | 5.5 kW |
