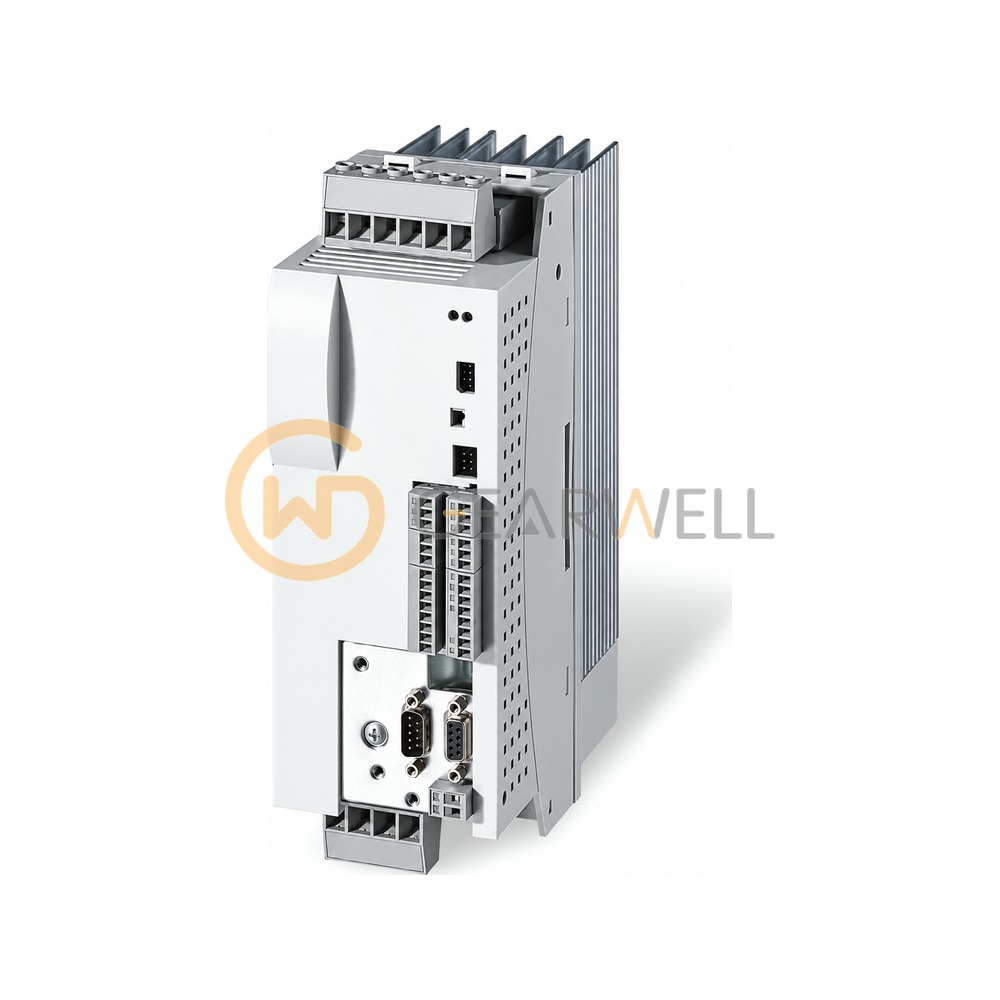

LENZE ECSEA004C4B ECS Application Servo Axis Module 4 A
- Brand
- LENZE
- Model
- ECSEA004C4B
- GEARWELL SKU
- GWP-000015657
- Category
- Servo Systems
Key specifications
- Mass
- approx. 2.4 kg
- Design
- E = standard panel-mounted unit, IP20
- Peak current
- 004 = 4 A
- Voltage class
- 4 = 400 V / 500 V
- DC-bus voltage
- 15 ... 770 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | LENZE ECSEA004C4B ECS Application Servo Axis Module 4 A |
|---|---|
| Brand | LENZE |
| Model | ECSEA004C4B |
| Category | Servo Systems |
| Mass | approx. 2.4 kg |
| Design | E = standard panel-mounted unit, IP20 |
| Peak current | 004 = 4 A |
| Voltage class | 4 = 400 V / 500 V |
| DC-bus voltage | 15 ... 770 V |
| Technical version | B = standard |
| Fieldbus interface | C = system bus (CAN) |
| Application software | A = Application |
| DC-bus current (400 / 480 V) | 2.5 / 2.0 A |
| Rated output current at 4 kHz (400 / 480 V) | 2.0 / 1.6 A |
