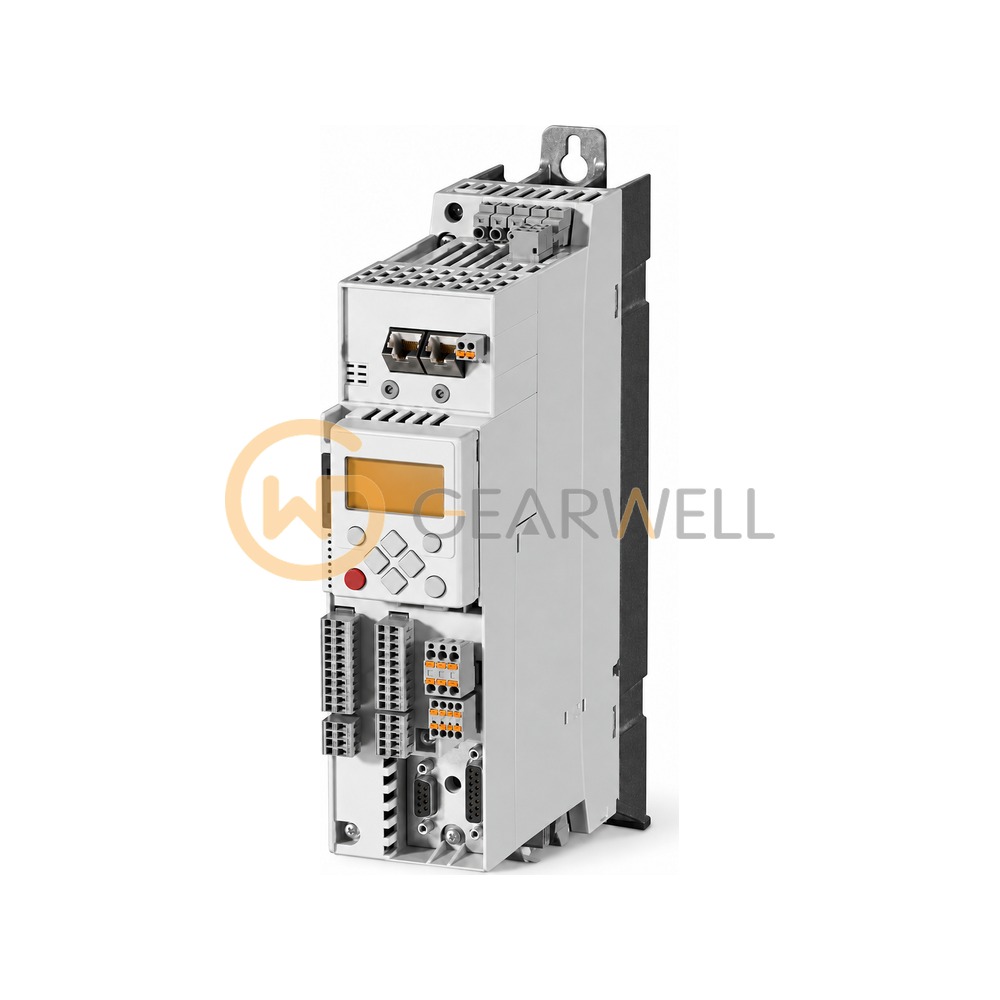

LENZE E84AVTCE1522 8400 TopLine Frequency Inverter 1.5 kW 230 V

Key specifications

Series: Inverter Drives 8400 TopLine
Mains voltage: 1/N/PE AC 180 V -0 % ... 264 V +0 %, 45 ... 65 Hz
Product key decoded: E84AV + TC = TopLine + E = installation + 152 = 1.5 kW + 2 = 230/240 V, 1/N/PE AC
Rated output current: 7.0 A
Max. output current (60 s / 3 s): 10.5 / 14.0 A

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	LENZE E84AVTCE1522 8400 TopLine Frequency Inverter 1.5 kW 230 V
Brand	LENZE
Model	E84AVTCE1522
Category	Variable Frequency Drives
Series	Inverter Drives 8400 TopLine
Mains voltage	1/N/PE AC 180 V -0 % ... 264 V +0 %, 45 ... 65 Hz
Product key decoded	E84AV + TC = TopLine + E = installation + 152 = 1.5 kW + 2 = 230/240 V, 1/N/PE AC
Rated output current	7.0 A
Max. output current (60 s / 3 s)	10.5 / 14.0 A
Rated power (4-pole asynchronous motor)	1.5 kW
Open code positions (ambient / safety / version)	S = standard or V = coated circuit boards; X = without or B = with safety engineering (STO); 0 / S = 599 Hz or 7 = 1000 Hz (specify on order)
Rated mains current with / without mains choke	11.4 / 13.7 A
