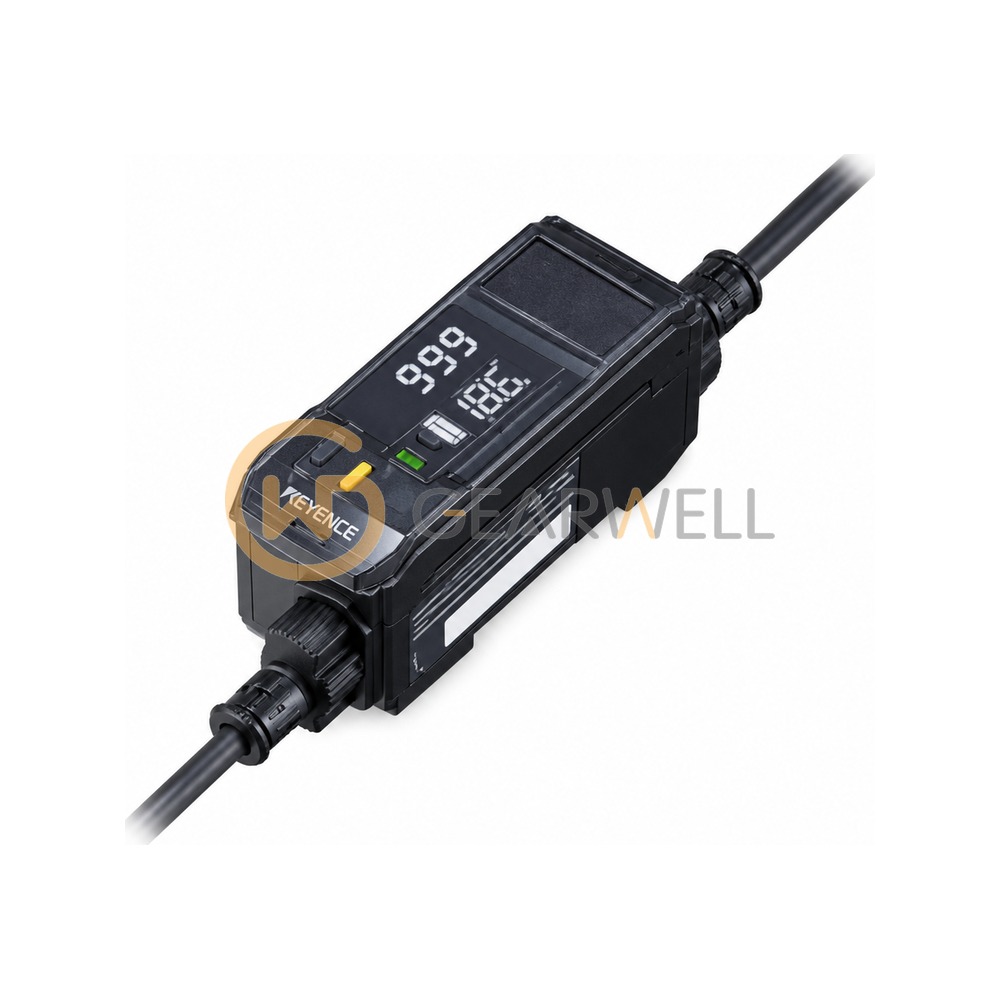

KEYENCE MU-N11 FD-Q Multi-Sensor Controller

Key specifications

Response time: Depends on the connected sensor model
Expansion units: Up to 4 expansion units
Current consumption: 70 mA or less (without load)
Main unit/Expansion unit: Main unit
Power supply / Power voltage: 24 VDC, ripple (P-P) 10% or less, Class 2 or LPS

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	KEYENCE MU-N11 FD-Q Multi-Sensor Controller
Brand	KEYENCE
Model	MU-N11
Category	Pressure, Flow & Temperature
Response time	Depends on the connected sensor model
Expansion units	Up to 4 expansion units
Current consumption	70 mA or less (without load)
Main unit/Expansion unit	Main unit
Power supply / Power voltage	24 VDC, ripple (P-P) 10% or less, Class 2 or LPS
Environmental resistance / Ambient temperature	-20 to +50 °C (No freezing)
N-bus connection specification / Allowable passing current	1200 mA or less
Sensor connection specification / Allowable sensor current	150 mA or less
