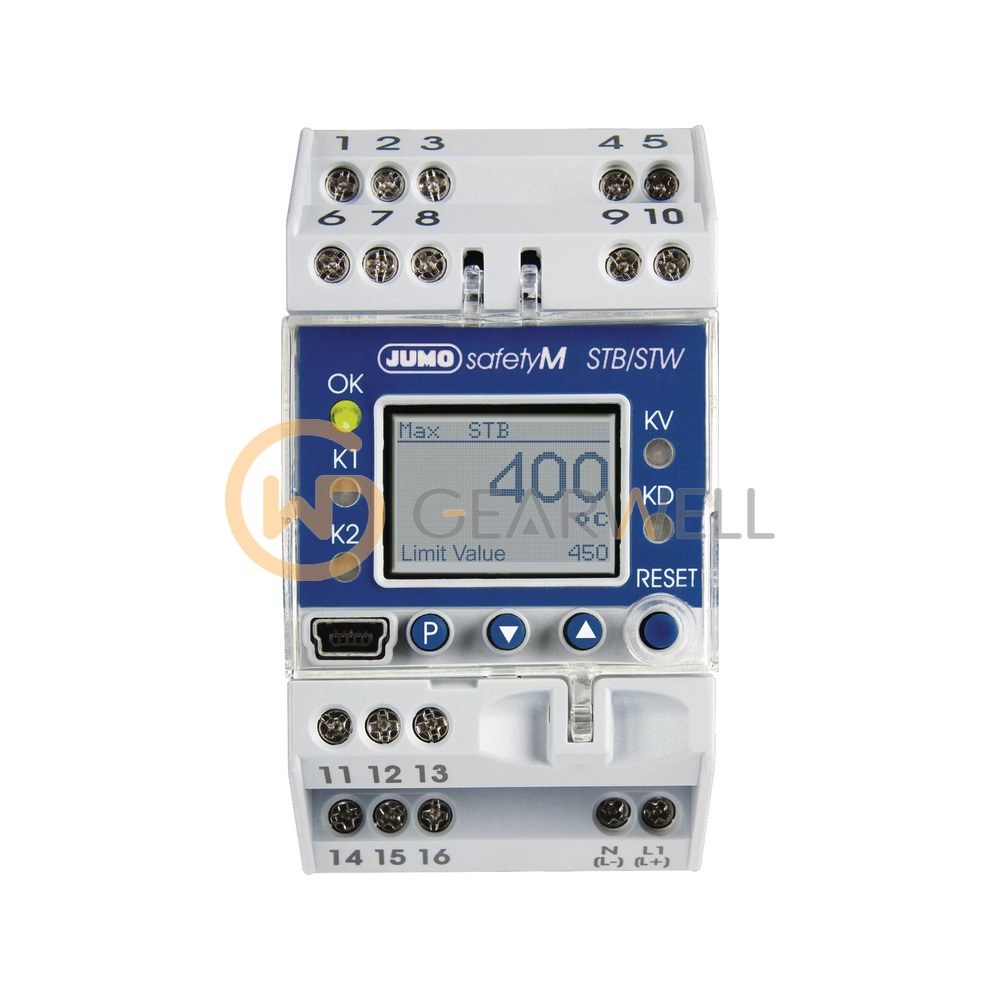

JUMO 701150/8-01-0253-2001-25/005 safetyM STB/STW Safety Temp Limiter
- Brand
- JUMO
- Model
- 701150/8-01-0253-2001-25/005
- GEARWELL SKU
- GWP-000016902
- Category
- Pressure, Flow & Temperature
Key specifications
- Output
- 005 = 4-20 mA analog
- Language
- 01 = German
- Configuration
- 8 = with factory settings
- Voltage supply
- 25 = AC/DC 20-30 V, 48-63 Hz
- Measuring input
- 2001 = 2x Pt100 3-wire
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | JUMO 701150/8-01-0253-2001-25/005 safetyM STB/STW Safety Temp Limiter |
|---|---|
| Brand | JUMO |
| Model | 701150/8-01-0253-2001-25/005 |
| Category | Pressure, Flow & Temperature |
| Output | 005 = 4-20 mA analog |
| Language | 01 = German |
| Configuration | 8 = with factory settings |
| Voltage supply | 25 = AC/DC 20-30 V, 48-63 Hz |
| Measuring input | 2001 = 2x Pt100 3-wire |
| Basic type extension | 0253 = Safety temperature limiter (O-function) |
| Error tolerance time | ≤ 5 s |
| Pt100 measuring range | -200 to +850 °C |
