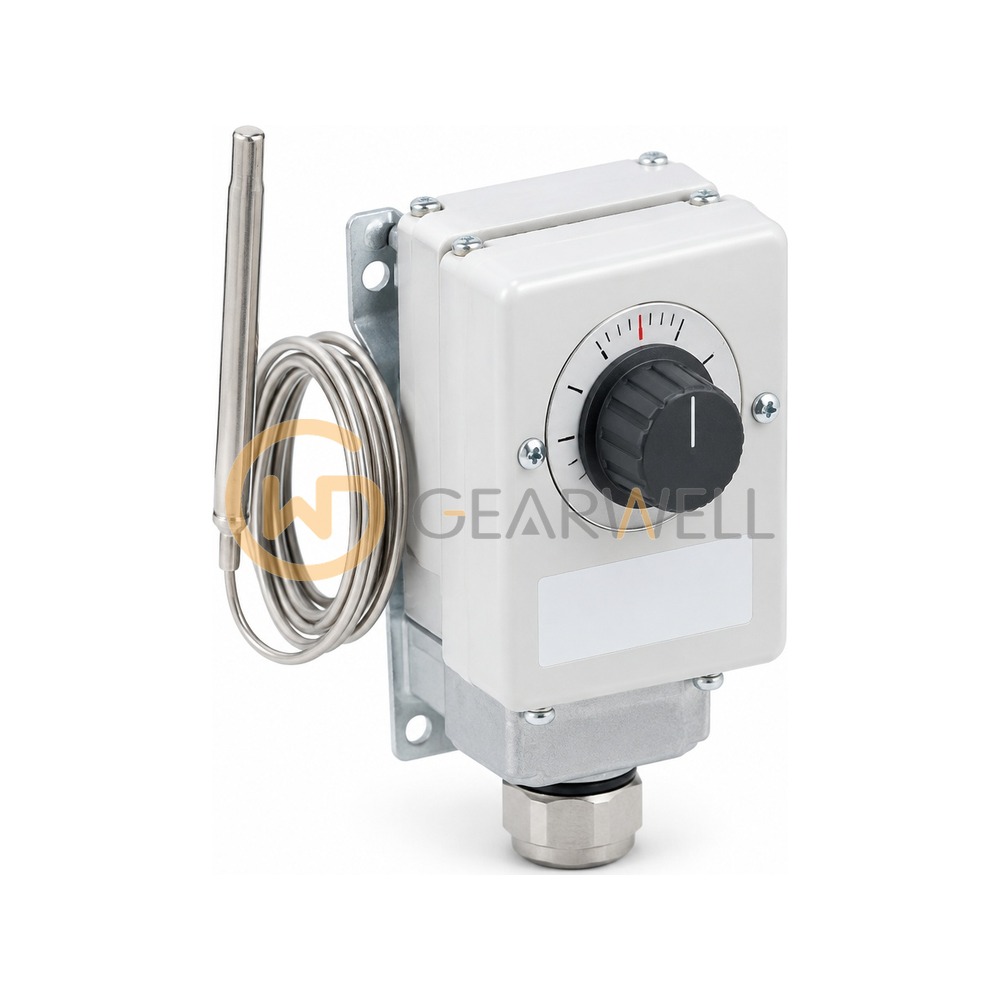

JUMO 701130/0253-001-02/206,231,245,056 Safety Temp Limiter
- Brand
- JUMO
- Model
- 701130/0253-001-02/206,231,245,056
- GEARWELL SKU
- GWP-000022890
- Category
- Pressure, Flow & Temperature
Key specifications
- Product state
- Archive
- Extra code 056
- DIN approval
- Extra code 206
- Switching differential 30 °C
- Extra code 231
- Lead resistance 10 Ω internally compensated
- Extra code 245
- Internal reset button
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | JUMO 701130/0253-001-02/206,231,245,056 Safety Temp Limiter |
|---|---|
| Brand | JUMO |
| Model | 701130/0253-001-02/206,231,245,056 |
| Category | Pressure, Flow & Temperature |
| Product state | Archive |
| Extra code 056 | DIN approval |
| Extra code 206 | Switching differential 30 °C |
| Extra code 231 | Lead resistance 10 Ω internally compensated |
| Extra code 245 | Internal reset button |
| Voltage supply | 02 = 230 V AC +10/-15 %, 48-63 Hz |
| Measuring input | 001 = RTD Pt100 2-wire |
| Code as collected | 701130/0253-001-02/206,231,245,056 (seller title: [待拆] 701130/0253-001-02/206,231,245,056 JUMO 久茂 温湿度产品) |
| Basic type extension | 0253 = Safety temperature limiter with O-function |
