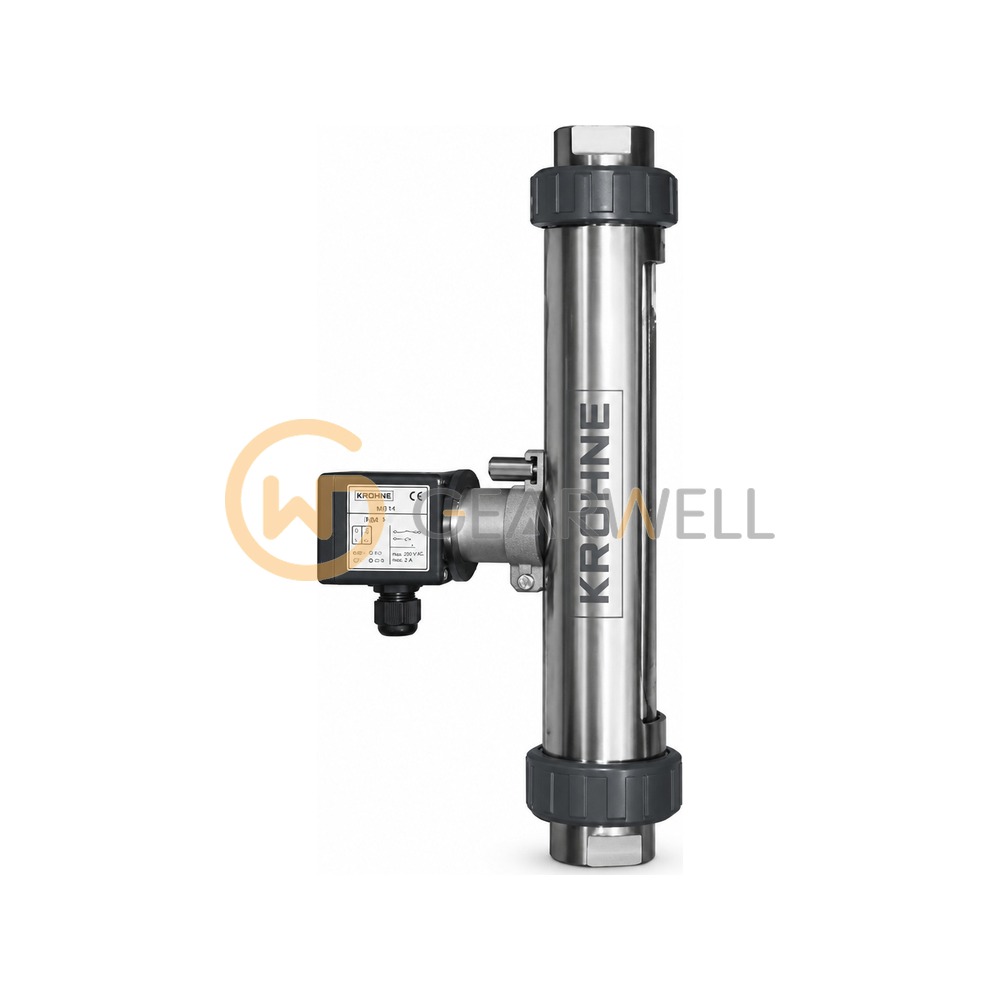

KROHNE MS14 VA40/VA45 Reed Limit Switch for Variable Area Flowmeter
- Brand
- KROHNE
- Model
- MS14
- GEARWELL SKU
- GWP-000036722
- Category
- Pressure, Flow & Temperature
Key specifications
- Protection
- IP44
- Application
- VA40 / VA45 variable area flowmeters, DN15 - DN50
- Switch type
- Reed contact, bistable, two-wire potential-free
- Contact type
- N/C or N/O, can be reversed
- Contact rating
- 12 VA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | KROHNE MS14 VA40/VA45 Reed Limit Switch for Variable Area Flowmeter |
|---|---|
| Brand | KROHNE |
| Model | MS14 |
| Category | Pressure, Flow & Temperature |
| Protection | IP44 |
| Application | VA40 / VA45 variable area flowmeters, DN15 - DN50 |
| Switch type | Reed contact, bistable, two-wire potential-free |
| Contact type | N/C or N/O, can be reversed |
| Contact rating | 12 VA |
| Ambient temperature | -20 ... +85 C |
| Max. switching current | 0.5 A |
| Max. switching voltage | 30 V DC |
| Switching reproducibility | < 2% of measuring range end value |
