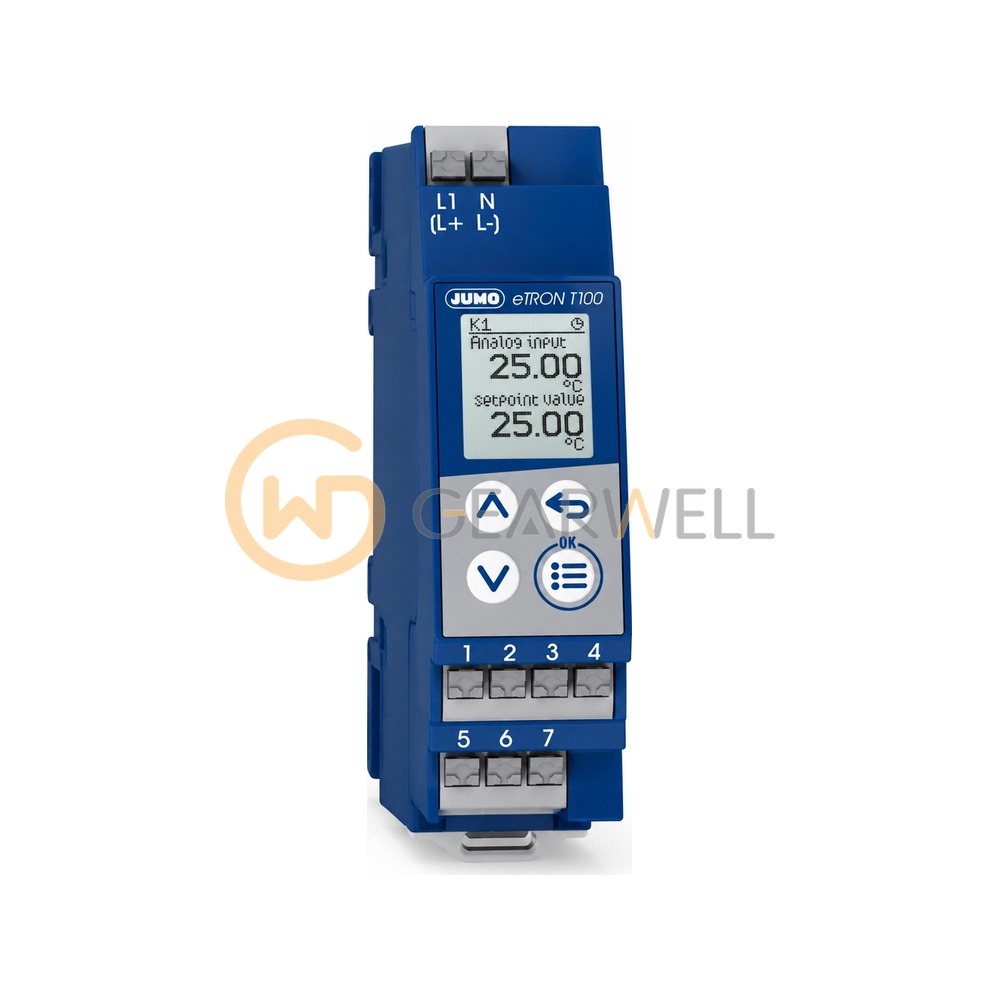

JUMO 701052/8-01-02-00/000 eTRON T100 Electronic Thermostat
- Brand
- JUMO
- Model
- 701052/8-01-02-00/000
- GEARWELL SKU
- GWP-000022194
- Category
- Pressure, Flow & Temperature
Key specifications
- Outputs
- 1 relay (changeover contact 10 A); 1 PhotoMOS relay (option)
- Input (01)
- RTD temperature probes Pt100, Pt1000, KTY2X-6
- Version (8)
- Standard with default settings
- Options (00)
- None (3-wire Pt100/Pt1000 connection possible)
- Extra codes
- 000 (none) as collected
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | JUMO 701052/8-01-02-00/000 eTRON T100 Electronic Thermostat |
|---|---|
| Brand | JUMO |
| Model | 701052/8-01-02-00/000 |
| Category | Pressure, Flow & Temperature |
| Outputs | 1 relay (changeover contact 10 A); 1 PhotoMOS relay (option) |
| Input (01) | RTD temperature probes Pt100, Pt1000, KTY2X-6 |
| Version (8) | Standard with default settings |
| Options (00) | None (3-wire Pt100/Pt1000 connection possible) |
| Extra codes | 000 (none) as collected |
| Format (W × H × D) | 22.5 mm × 93.5 mm × 61.6 mm |
| Voltage supply (02) | AC 230 V +10/-15 %, 48 to 63 Hz |
| Electrical connection | PUSH IN terminals |
