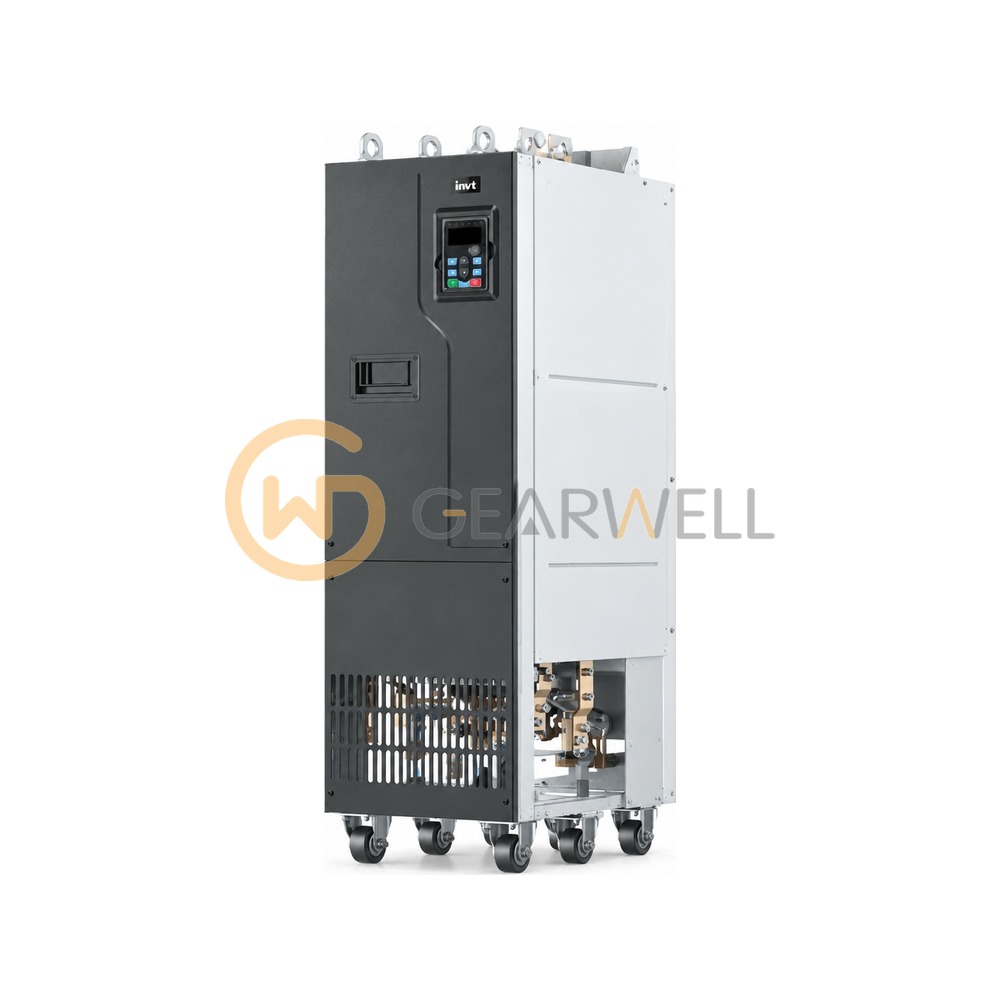

INVT GD270-315-4-L1 Goodrive270 Fan and Pump AC Drive
- Brand
- INVT
- Model
- GD270-315-4-L1
- GEARWELL SKU
- GWP-000025047
- Category
- Variable Frequency Drives
Key specifications
- Frame
- Floor-standing frame 280–355 kW (without output reactor)
- Keypad
- Remote-mountable LED keypad standard (30 kW and higher)
- Mounting
- Floor mounting
- IP rating
- IP00
- EMC filter
- Built-in C3 filter standard (160 kW and higher)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | INVT GD270-315-4-L1 Goodrive270 Fan and Pump AC Drive |
|---|---|
| Brand | INVT |
| Model | GD270-315-4-L1 |
| Category | Variable Frequency Drives |
| Frame | Floor-standing frame 280–355 kW (without output reactor) |
| Keypad | Remote-mountable LED keypad standard (30 kW and higher) |
| Mounting | Floor mounting |
| IP rating | IP00 |
| EMC filter | Built-in C3 filter standard (160 kW and higher) |
| Relay outputs | 2 programmable (3 A/AC 250 V, 1 A/DC 30 V) |
| Voltage class | 4: AC 3PH 380–480 V (rated 380 V) |
| Rated output power | 315 kW |
| Reactor configuration | L1: built-in DC reactor |
| Outline dimensions W × H × D | 330 × 1288 × 552 mm |
| Rated output current (at 380 V output) | 600 A |
| Rated input current (380 V, with DC reactor) | 550 A |
| Rated input current (380 V, without DC reactor) | 605 A |
| Full-load power dissipation (this configuration) | 6395 W |
