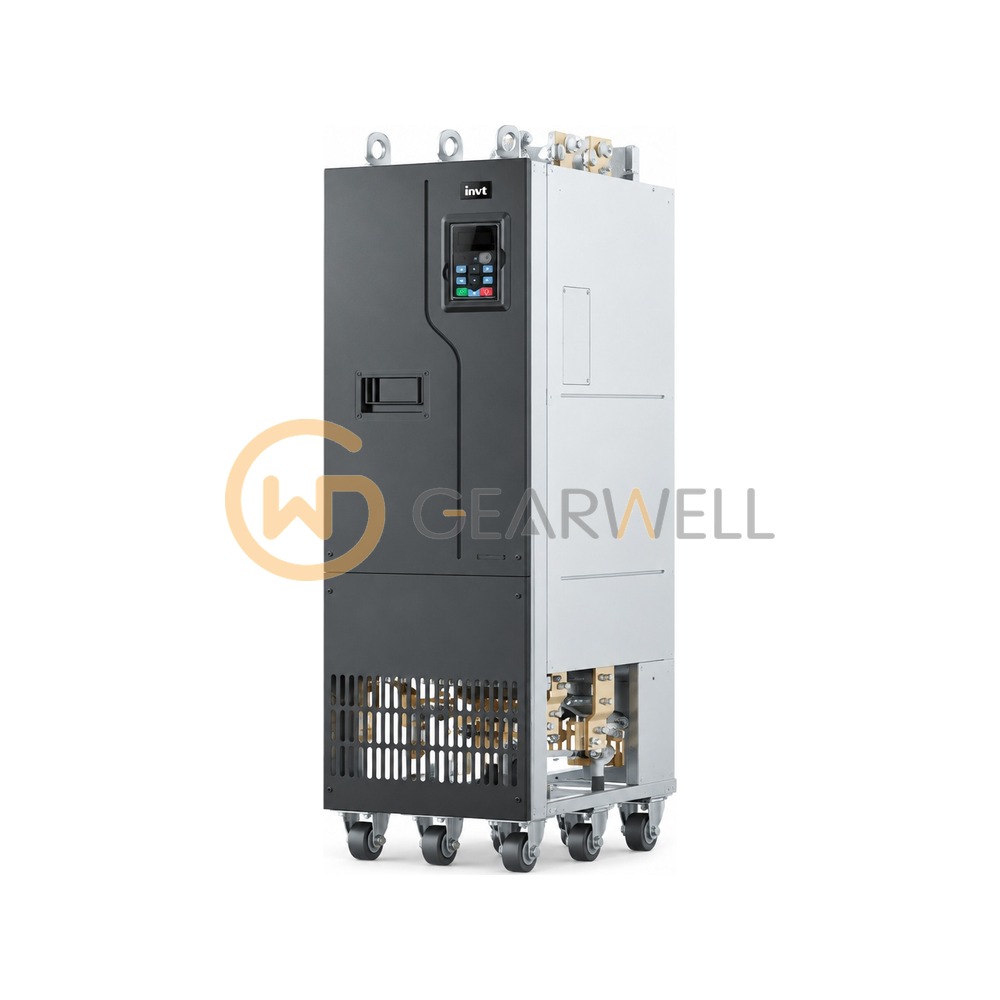

INVT GD270-220-4-L3 Goodrive270 Fan and Pump AC Drive
- Brand
- INVT
- Model
- GD270-220-4-L3
- GEARWELL SKU
- GWP-000025042
- Category
- Variable Frequency Drives
Key specifications
- Frame
- Floor-standing frame 220–250 kW L3 (with output reactor)
- Keypad
- Remote-mountable LED keypad standard (30 kW and higher)
- Mounting
- Floor mounting
- IP rating
- IP00
- EMC filter
- Built-in C3 filter standard (160 kW and higher)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | INVT GD270-220-4-L3 Goodrive270 Fan and Pump AC Drive |
|---|---|
| Brand | INVT |
| Model | GD270-220-4-L3 |
| Category | Variable Frequency Drives |
| Frame | Floor-standing frame 220–250 kW L3 (with output reactor) |
| Keypad | Remote-mountable LED keypad standard (30 kW and higher) |
| Mounting | Floor mounting |
| IP rating | IP00 |
| EMC filter | Built-in C3 filter standard (160 kW and higher) |
| Relay outputs | 2 programmable (3 A/AC 250 V, 1 A/DC 30 V) |
| Voltage class | 4: AC 3PH 380–480 V (rated 380 V) |
| Rated output power | 220 kW |
| Reactor configuration | L3: built-in DC reactor and output reactor |
| Outline dimensions W × H × D | 303 (350 incl. reactor) × 1470 × 477 mm |
| Rated output current (at 380 V output) | 425 A |
| Rated input current (380 V, with DC reactor) | 411 A |
| Rated input current (380 V, without DC reactor) | 430 A |
| Full-load power dissipation (this configuration) | 4547 W |
