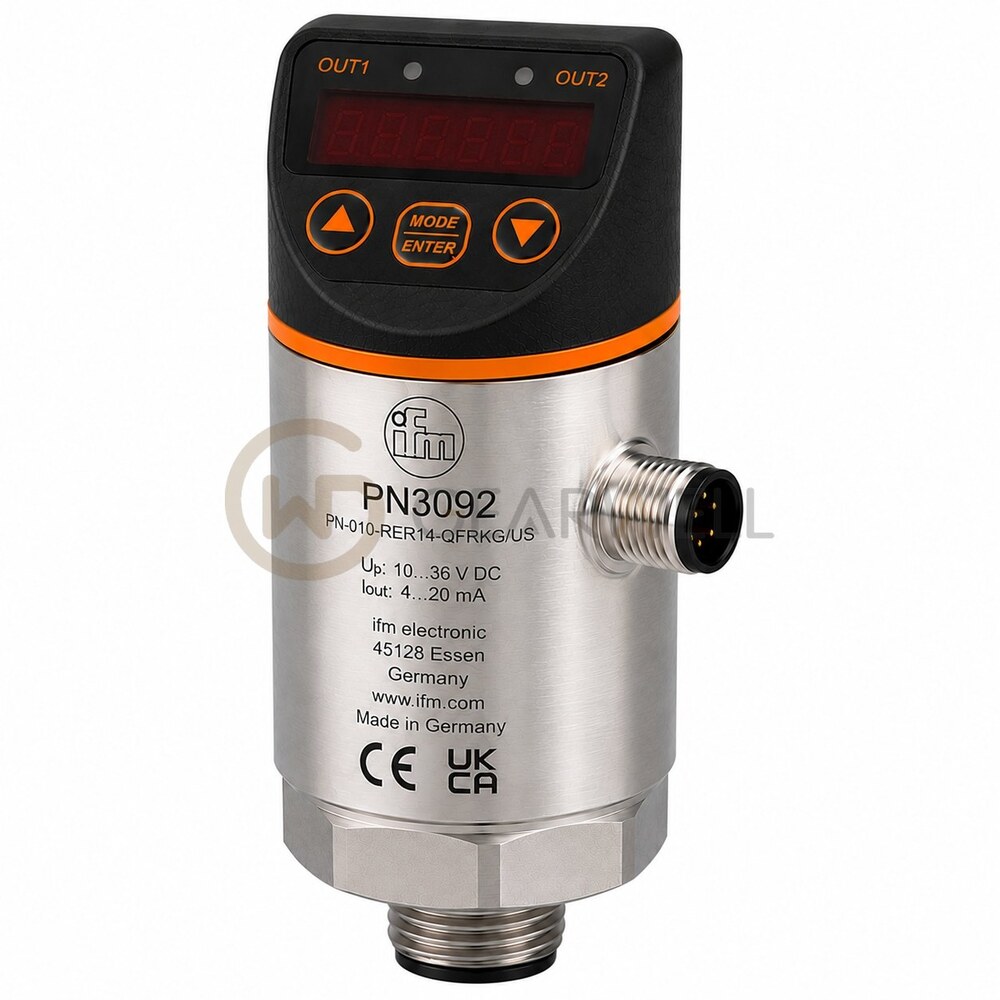

IFM PN3092 Pressure Sensor with Display
- Brand
- IFM
- Model
- PN3092
- GEARWELL SKU
- GWP-000000081
- Category
- Industrial Automation Parts
Key specifications
- Product type
- Pressure sensor with display
- Output signal
- Switching signal; analogue signal; IO-Link (configurable)
- Measuring range
- 0...100 bar
- Electrical design
- PNP
- Switching frequency DC
- < 170 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm PN3092 (PN-100-SER14-MFRKG/US/ /V) is a pressure sensor with display for liquids. It measures relative pressure over 0…100 bar (0…1450 psi), with a pressure rating of 300 bar and a minimum burst pressure of 650 bar. The process connection is a G 1/4 internal thread (M6 I), the wetted parts are stainless steel (1.4404 / 316L), ceramics (Al2O3) and FKM, and the permitted medium temperature is -25…80 °C. It provides 1 switching output (PNP), 1 analog output (4…20 mA or 0…10 V) and IO-Link, runs on 18…30 V DC and connects through an M12 connector (A-coded, 4 gold-plated contacts). ifm specifies characteristic deviation < ± 0.25 % of span and repeatability < ± 0.1 % of span. The sensor is rated IP65 and IP67 for -25…80 °C ambient.
Technical reference
| Product name | IFM PN3092 Pressure Sensor with Display |
|---|---|
| Brand | IFM |
| Model | PN3092 |
| Category | Industrial Automation Parts |
| Product type | Pressure sensor with display |
| Output signal | Switching signal; analogue signal; IO-Link (configurable) |
| Measuring range | 0...100 bar |
| Electrical design | PNP |
| Switching frequency DC | < 170 Hz |
| Analogue current output | 4...20 mA |
| Analogue voltage output | 0...10 V |
| Number of inputs and outputs | Digital outputs: 1; analogue outputs: 1 |
