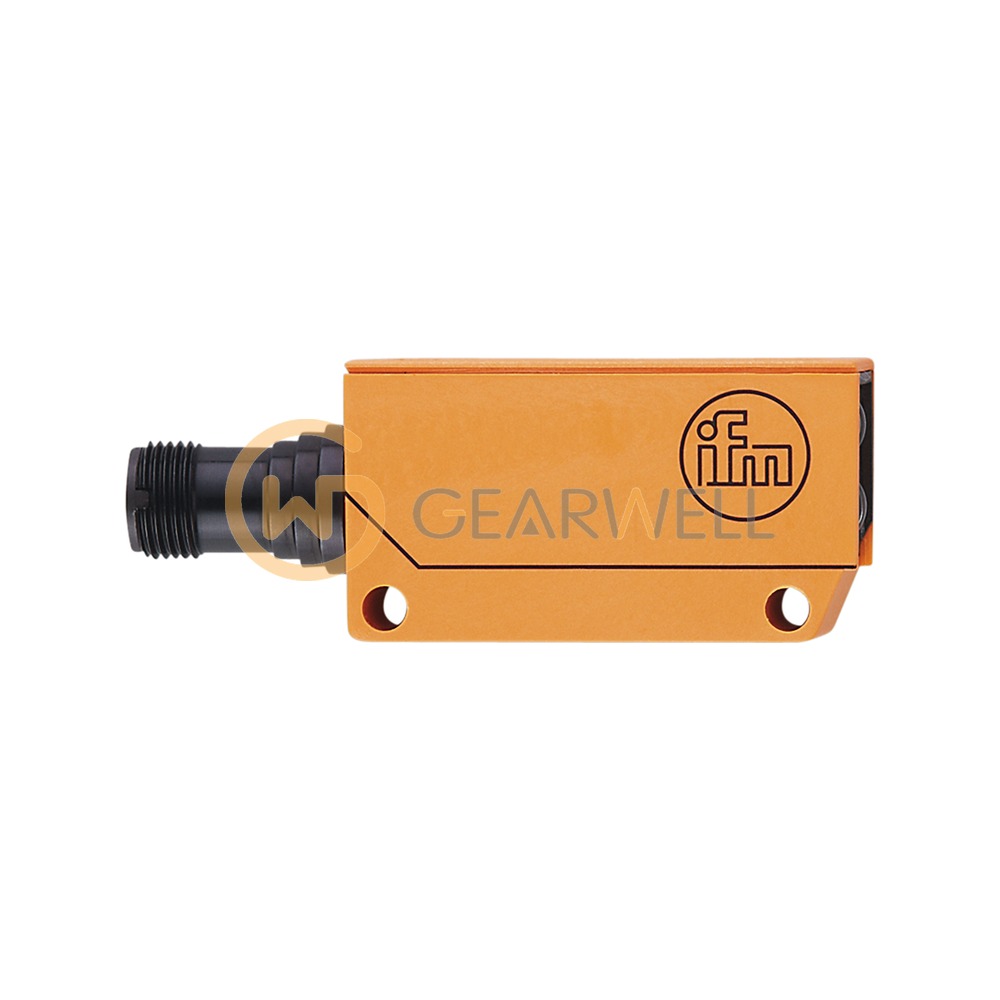

IFM OU5034 OUT-HPKG/US-100-DPS Diffuse Reflection Sensor
- Brand
- IFM
- Model
- OU5034
- GEARWELL SKU
- GWP-000009377
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Range
- 1...200 (white paper 200 x 200 mm) mm
- Dimensions
- 28 x 16 x 51 mm
- Protection
- IP 67
- Output function
- light-on mode
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm OU5034 (OUT-HPKG/US-100-DPS) is a diffuse reflection sensor in a rectangular housing measuring 28 x 16 x 51 mm. ifm specifies a range of 1…200 mm on white paper 200 x 200 mm. It works with infrared light (880 nm). The light spot is at most 180 mm in diameter at maximum range. It has 1 PNP switching output. The switching output works in light-on mode, switches at up to 160 Hz and carries up to 250 mA. It runs on 10…55 V DC and connects through an M12 connector (A-coded, 4 contacts). It has a PPO modified housing and a glass front lens and is rated IP67 for -25…80 °C ambient.
Technical reference
| Product name | IFM OU5034 OUT-HPKG/US-100-DPS Diffuse Reflection Sensor |
|---|---|
| Brand | IFM |
| Model | OU5034 |
| Category | Proximity & Photoelectric Sensors |
| Range | 1...200 (white paper 200 x 200 mm) mm |
| Dimensions | 28 x 16 x 51 mm |
| Protection | IP 67 |
| Output function | light-on mode |
| Electrical design | PNP |
| Operating voltage | 10...55 DC ("supply class 2" to cULus) V |
| Current consumption | 35 ((24 V)) mA |
| Switching frequency DC | 160 Hz |
