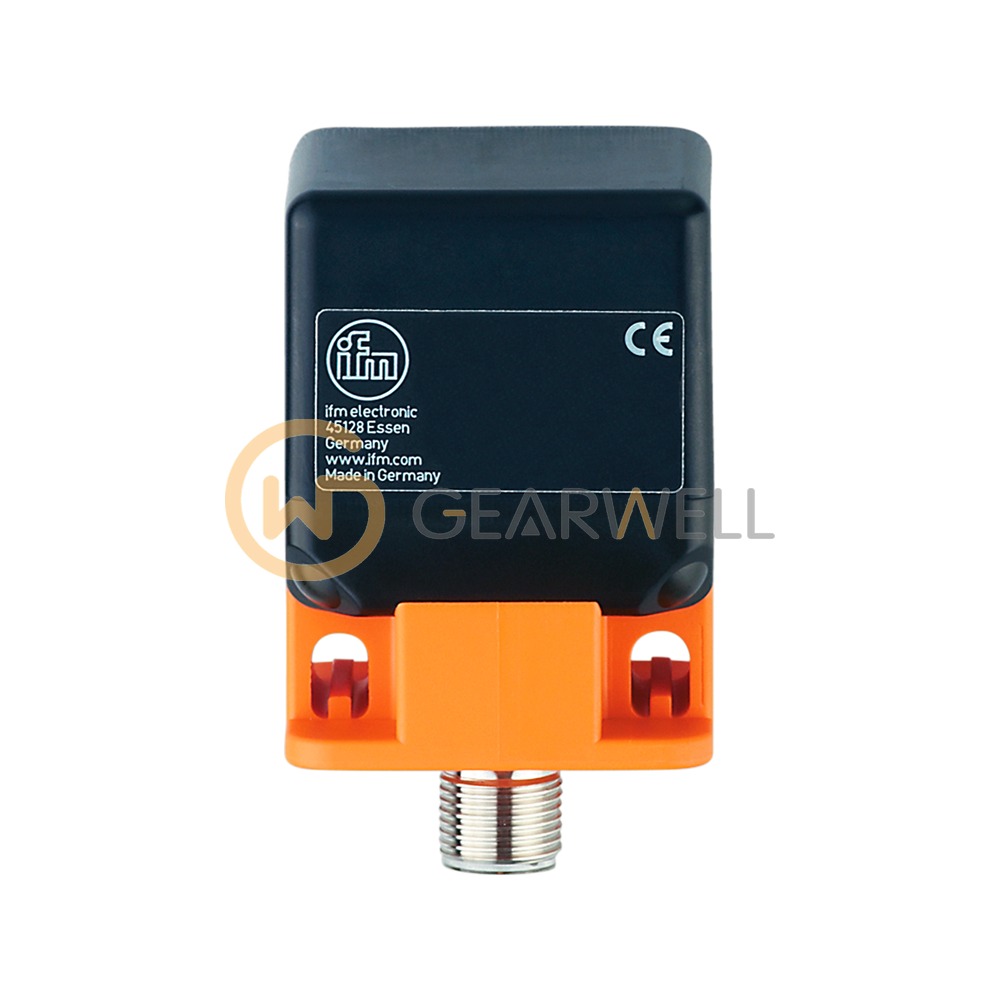

IFM IM5129 IM series Inductive sensor

Product overview

The ifm IM5129 (IMC3040UBPKG/K1/SC/US-100-DPS) is an inductive proximity sensor in a rectangular housing measuring 40 x 40 x 54 mm, for non-flush mounting. Its rated sensing range is 40 mm. The real sensing range is 40 mm ± 10% and the operating distance on steel is 0…32.4 mm. The sensing face can be set to 5 positions. The PNP switching output is normally open, rated at 200 mA and up to 200 Hz on 10…36 V DC, with reverse polarity and short-circuit protection. Its correction factor is 1 for steel, stainless steel, brass, aluminum and copper, so these metals are detected at the same distance. The sensor has a weld-coated PA housing with a weld-coated black PA sensing face, connects through an M12 connector (A-coded, 4 contacts, rotatable locking) and is rated IP67 for -25…70 °C ambient. It is immune to magnetic fields up to 300 mT and it has UL approval under file E174191.
