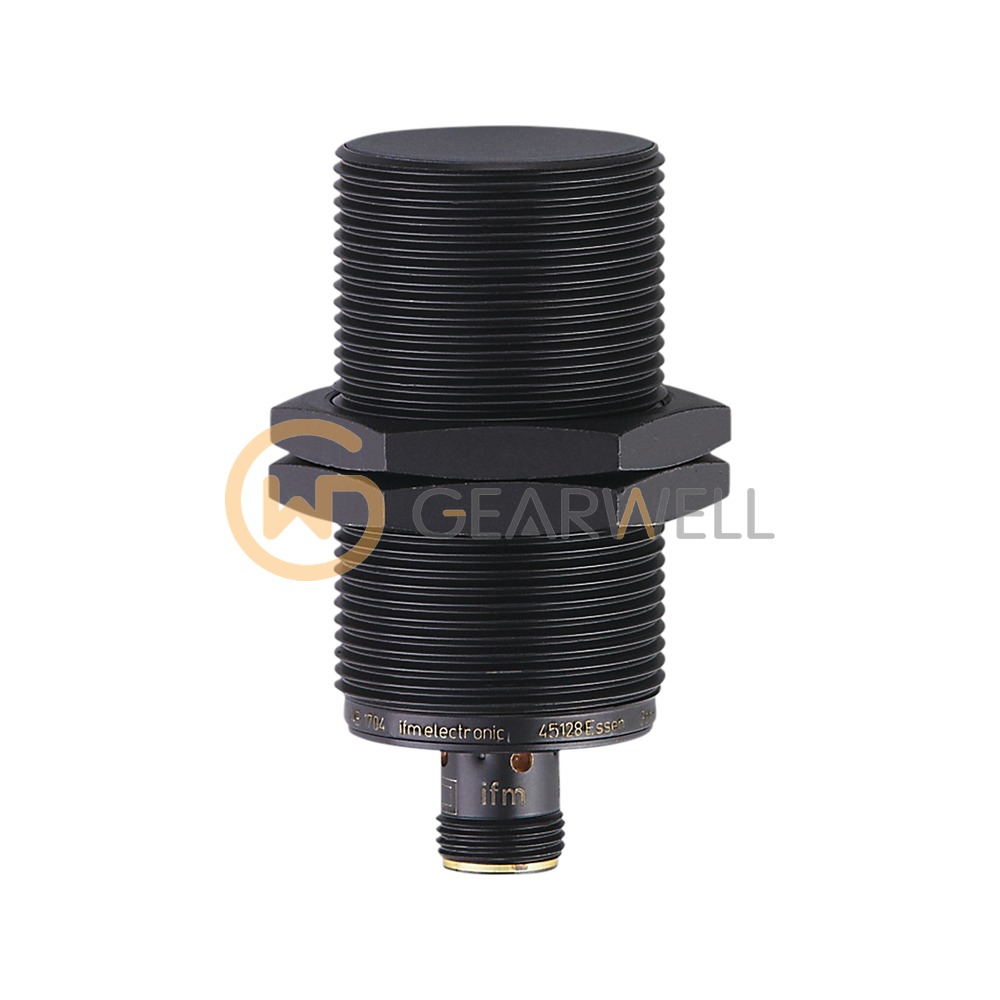

IFM IIW200 II series Inductive sensor
- Brand
- IFM
- Model
- IIW200
- GEARWELL SKU
- GWP-000012424
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- M30 x 1.5 / L = 65 mm
- Protection
- IP 67
- Sensing range
- 10 mm
- Output function
- normally open
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm IIW200 (IIK3010-BPKG/K1/SC/US-104) is an inductive proximity sensor in an M30 x 1.5 threaded housing 65 mm long, for flush mounting. Its rated sensing range is 10 mm. The real sensing range is 10 mm ± 10% and the operating distance on steel is 0…8.1 mm. The PNP switching output is normally open, rated at 100 mA and up to 2000 Hz on 10…30 V DC, with reverse polarity and short-circuit protection. Its correction factor is 1 for steel, stainless steel, brass, aluminum and copper, so these metals are detected at the same distance. The sensor has a weld-coated brass housing with a black LCP sensing face, connects through an M12 connector (A-coded, 3 gold-plated contacts) and is rated IP67 for -25…70 °C ambient. It is immune to magnetic fields and it has UL approval under file E174191. Two lock nuts are included.
Technical reference
| Product name | IFM IIW200 II series Inductive sensor |
|---|---|
| Brand | IFM |
| Model | IIW200 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | M30 x 1.5 / L = 65 mm |
| Protection | IP 67 |
| Sensing range | 10 mm |
| Output function | normally open |
| Electrical design | PNP |
| Operating voltage | 10...30 DC V |
| Ambient temperature | -25...70 °C |
| Switching frequency DC | 2000 Hz |
