IFM II502A Inductive full-metal sensor
- Brand
- IFM
- Model
- II502A
- GEARWELL SKU
- GWP-000012405
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Connection
- Connector: 1 x M12; coding: A; Contacts: gold-plated
- Dimensions
- M30 x 1.5 / L = 65 mm
- Protection
- IP 67; (when used outside the hazardous area: IP 65, IP 67, IP 68, IP 69K)
- Sensing range
- 10 mm
- Output function
- normally open
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

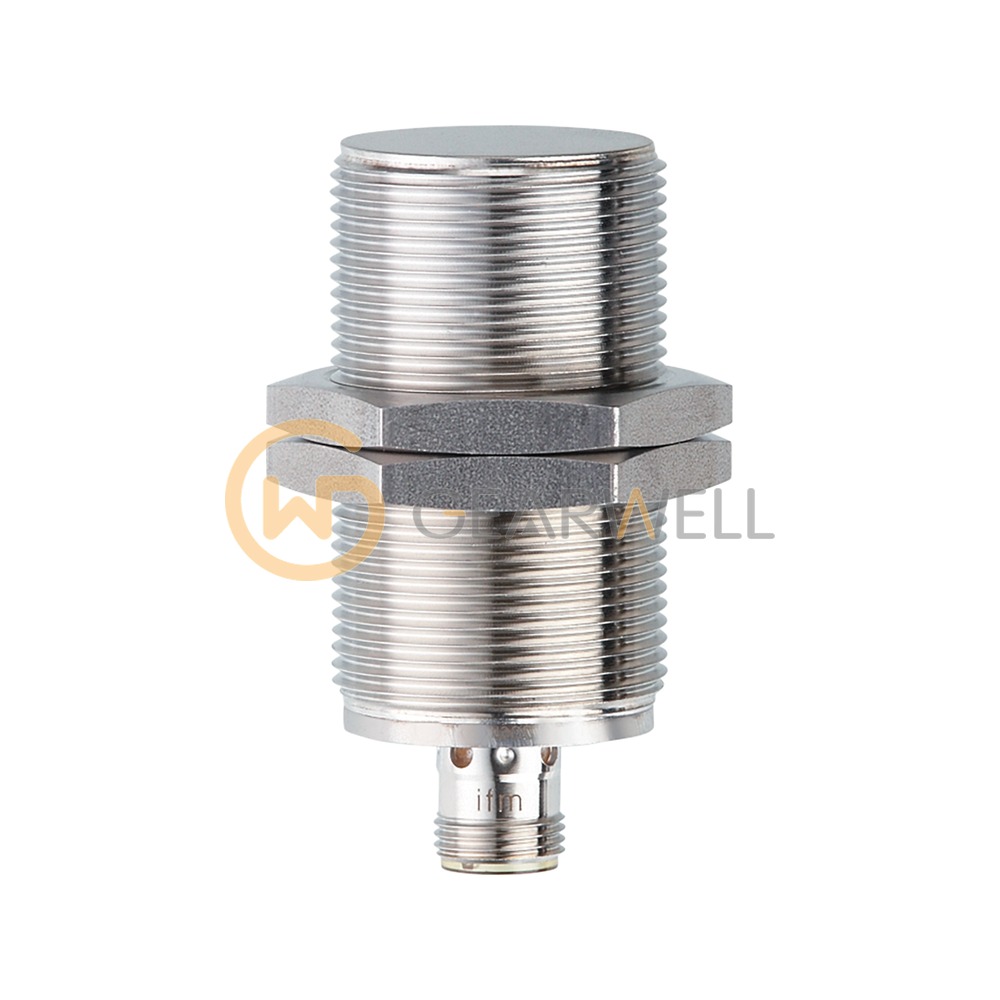

The ifm II502A (IIK3010-BPKG/AM/US104DPS/3G/3D) is an inductive full-metal proximity sensor in an M30 x 1.5 threaded housing 65 mm long, for flush mounting. Its rated sensing range is 10 mm, which ifm classes as an increased sensing range. The real sensing range is 10 mm ± 10% and the operating distance on steel is 0…8.1 mm. The PNP switching output is normally open, rated at 100 mA and up to 50 Hz on 10…30 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.6 for stainless steel, 0.8 for brass, 0.6 for aluminum and 0.2 for copper. The sensor has a stainless steel (1.4404 / 316L) housing, connects through an M12 connector (A-coded, 3 gold-plated contacts) and is rated IP67 for -40…60 °C ambient. The sensing face withstands 100 bar. Two lock nuts are included.
Technical reference
| Product name | IFM II502A Inductive full-metal sensor |
|---|---|
| Brand | IFM |
| Model | II502A |
| Category | Proximity & Photoelectric Sensors |
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
| Dimensions | M30 x 1.5 / L = 65 mm |
| Protection | IP 67; (when used outside the hazardous area: IP 65, IP 67, IP 68, IP 69K) |
| Sensing range | 10 mm |
| Output function | normally open |
| Electrical design | PNP |
| Operating voltage | 10...30 V DC |
| Switching frequency DC | 50 Hz |
