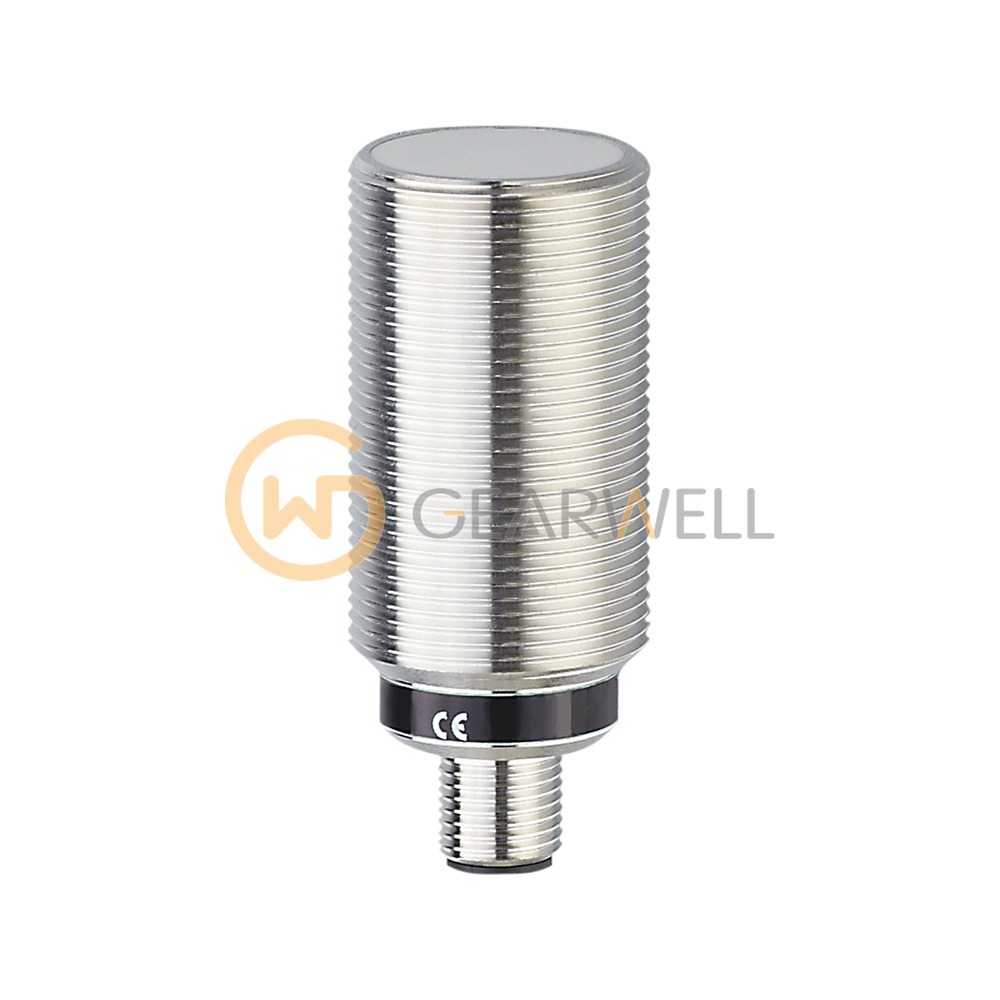

IFM II0340 IIK2015BABOA/SL/LS-100-AK Inductive Sensor

Product overview

The ifm II0340 (IIK2015BABOA/SL/LS-100-AK) is an inductive proximity sensor in an M30 x 1.5 threaded housing 72 mm long, for flush mounting. Its rated sensing range is 15 mm, which ifm classes as an increased sensing range. The operating distance on steel is 0…12.1 mm. It is a two-wire normally open sensor for 20…250 V AC/DC, with an AC load current of 250 (350 (…50 °C)) mA and a switching frequency of 25 Hz on AC, or 100 mA and 40 Hz on DC. ifm specifies a fast-acting miniature fuse of 2 A or less in the supply. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.5 for brass, 0.47 for aluminum and 0.4 for copper. The sensor has a white-bronze-coated brass housing with a PBT sensing face, connects through a 1/2-inch connector (C-coded, 3 contacts) and is rated IP67 for -25…70 °C ambient. Two lock nuts are included.
