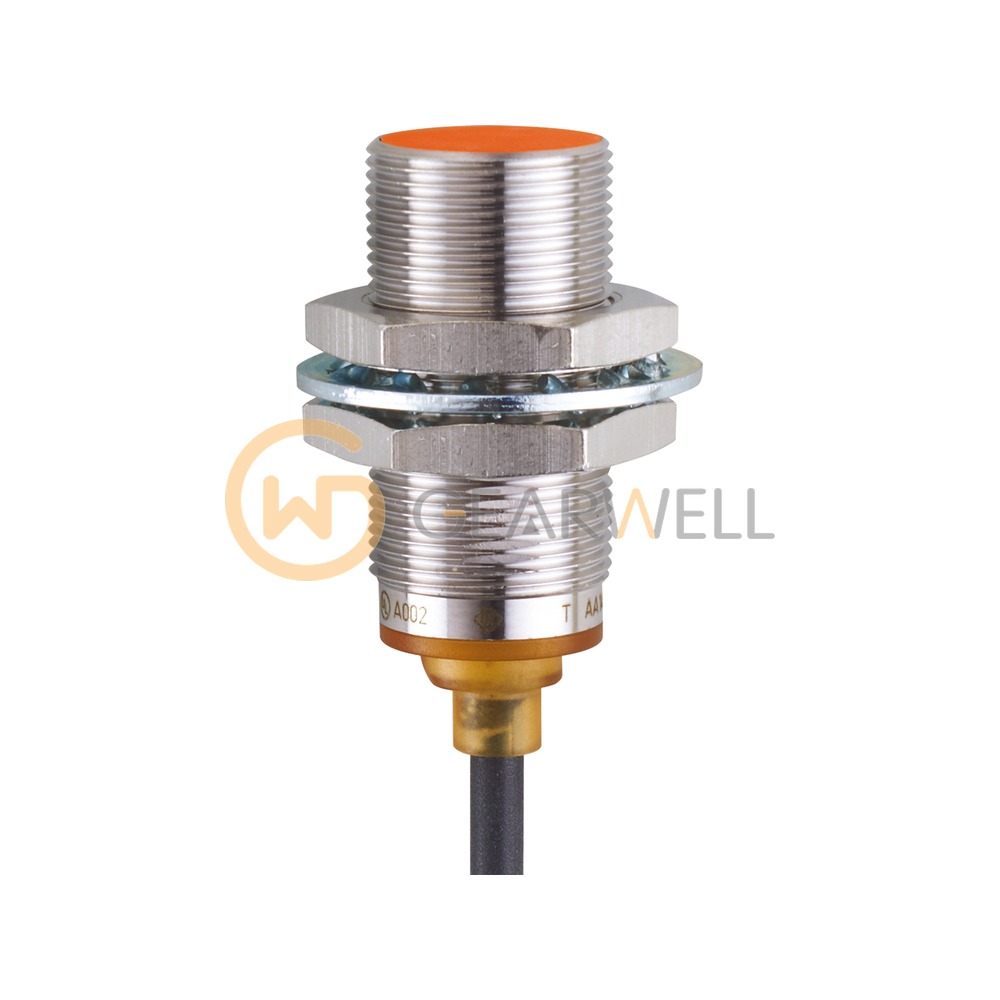

IFM IGS712 IGB2008BBRKG/2M/PUR Inductive Sensor
- Brand
- IFM
- Model
- IGS712
- GEARWELL SKU
- GWP-000009165
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- M18 x 1 / L = 40 mm
- Protection
- IP 65; IP 66; IP 67; IP 68; IP 69K
- Sensing range
- 8 mm
- Output function
- normally closed
- Electrical design
- PNP/NPN
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM IGS712 IGB2008BBRKG/2M/PUR Inductive Sensor |
|---|---|
| Brand | IFM |
| Model | IGS712 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | M18 x 1 / L = 40 mm |
| Protection | IP 65; IP 66; IP 67; IP 68; IP 69K |
| Sensing range | 8 mm |
| Output function | normally closed |
| Electrical design | PNP/NPN |
| Operating voltage | 10...30 DC ("supply limited voltage / current" to UL) V |
| Ambient temperature | -40...85 °C |
| Switching frequency DC | 400 Hz |
