IFM IGC232 Inductive sensor
- Brand
- IFM
- Model
- IGC232
- GEARWELL SKU
- GWP-000012316
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Connection
- Connector: 1 x M12; coding: A; Contacts: gold-plated
- Dimensions
- M18 x 1 / L = 65 mm
- Protection
- IP 68; ("Coolant")
- Sensing range
- 5 mm
- Output function
- normally open
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

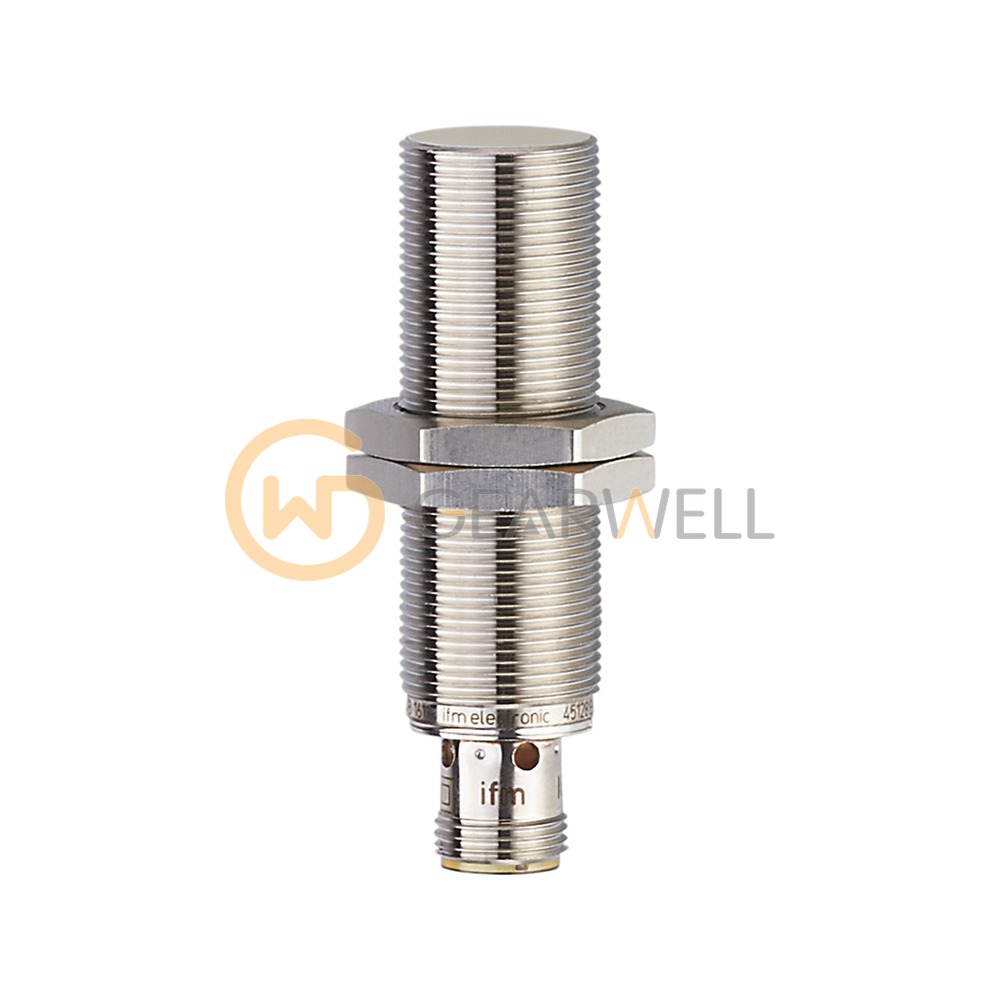

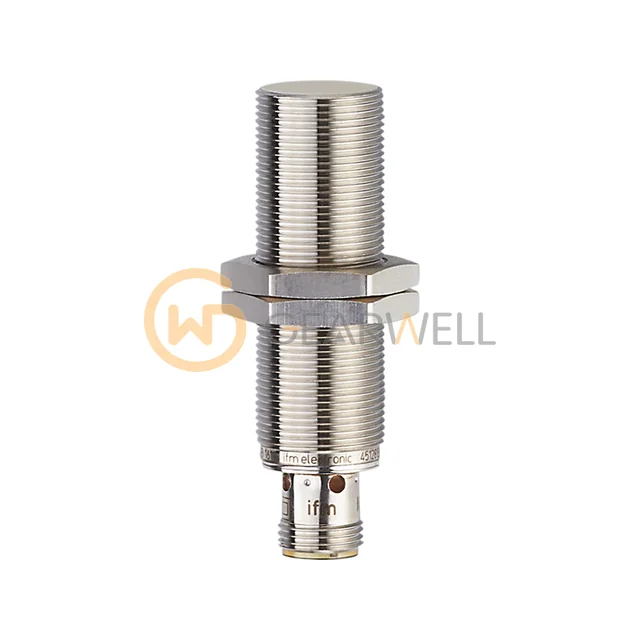

The ifm IGC232 (IGK3005-BPKG/K1/V4A/US-104) is an inductive proximity sensor in an M18 x 1 threaded housing 65 mm long, for flush mounting. Its rated sensing range is 5 mm. The real sensing range is 5 mm ± 10% and the operating distance on steel is 0…4.05 mm. The PNP switching output is normally open, rated at 100 mA and up to 2000 Hz on 10…30 V DC, with reverse polarity and short-circuit protection. Its correction factor is 1 for steel, stainless steel, brass, aluminum and copper, so these metals are detected at the same distance. The sensor has a stainless steel (1.4404 / 316L) housing with a white LCP sensing face, connects through an M12 connector (A-coded, 3 gold-plated contacts) and is rated IP68 for -25…70 °C ambient. It is immune to magnetic fields, ifm lists it for use with oils and coolants and it has UL approval under file E174191. Two lock nuts are included.
Technical reference
| Product name | IFM IGC232 Inductive sensor |
|---|---|
| Brand | IFM |
| Model | IGC232 |
| Category | Proximity & Photoelectric Sensors |
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
| Dimensions | M18 x 1 / L = 65 mm |
| Protection | IP 68; ("Coolant") |
| Sensing range | 5 mm |
| Output function | normally open |
| Electrical design | PNP |
| Operating voltage | 10...30 V DC |
| Switching frequency DC | 2000 Hz |
