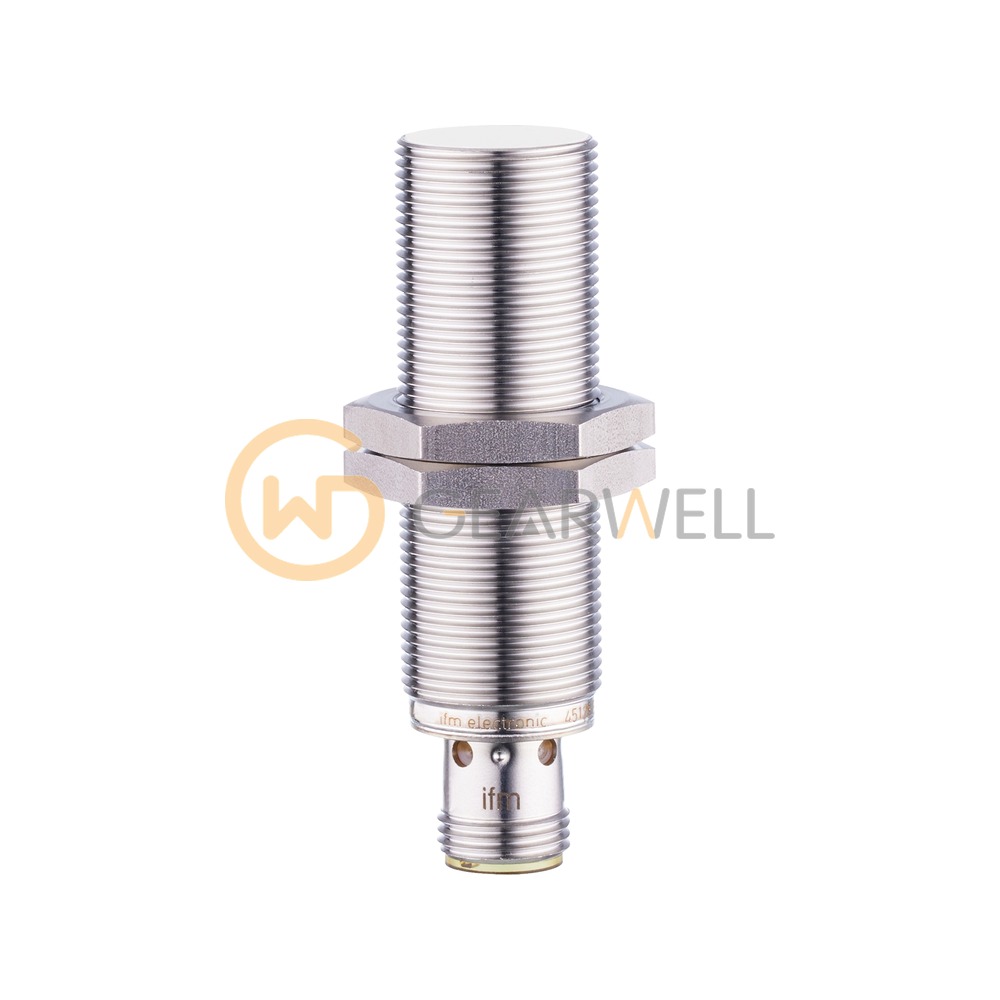

IFM IG5744 IGK3005-BPKG/V4A/US-104 Inductive Sensor
- Brand
- IFM
- Model
- IG5744
- GEARWELL SKU
- GWP-000008395
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- M18 x 1 / L = 65 mm
- Protection
- IP 65
- Sensing range
- 5 mm
- Output function
- normally open
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm IG5744 (IGK3005-BPKG/V4A/US-104) is an inductive proximity sensor in an M18 x 1 threaded housing 65 mm long, for flush mounting. Its rated sensing range is 5 mm. The real sensing range is 5 mm ± 10% and the operating distance on steel is 0…4.05 mm. The PNP switching output is normally open, rated at 200 mA and up to 500 Hz on 10…30 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.5 for brass, 0.4 for aluminum and 0.3 for copper. The sensor has a stainless steel (1.4404 / 316L) housing with a white PBT sensing face, connects through an M12 connector (A-coded, 3 gold-plated contacts) and is rated IP65 for -25…80 °C ambient. It has UL approval under file E174191. Two lock nuts are included.
Technical reference
| Product name | IFM IG5744 IGK3005-BPKG/V4A/US-104 Inductive Sensor |
|---|---|
| Brand | IFM |
| Model | IG5744 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | M18 x 1 / L = 65 mm |
| Protection | IP 65 |
| Sensing range | 5 mm |
| Output function | normally open |
| Electrical design | PNP |
| Operating voltage | 10...30 DC V |
| Current consumption | < 10 mA |
| Switching frequency DC | 500 Hz |
