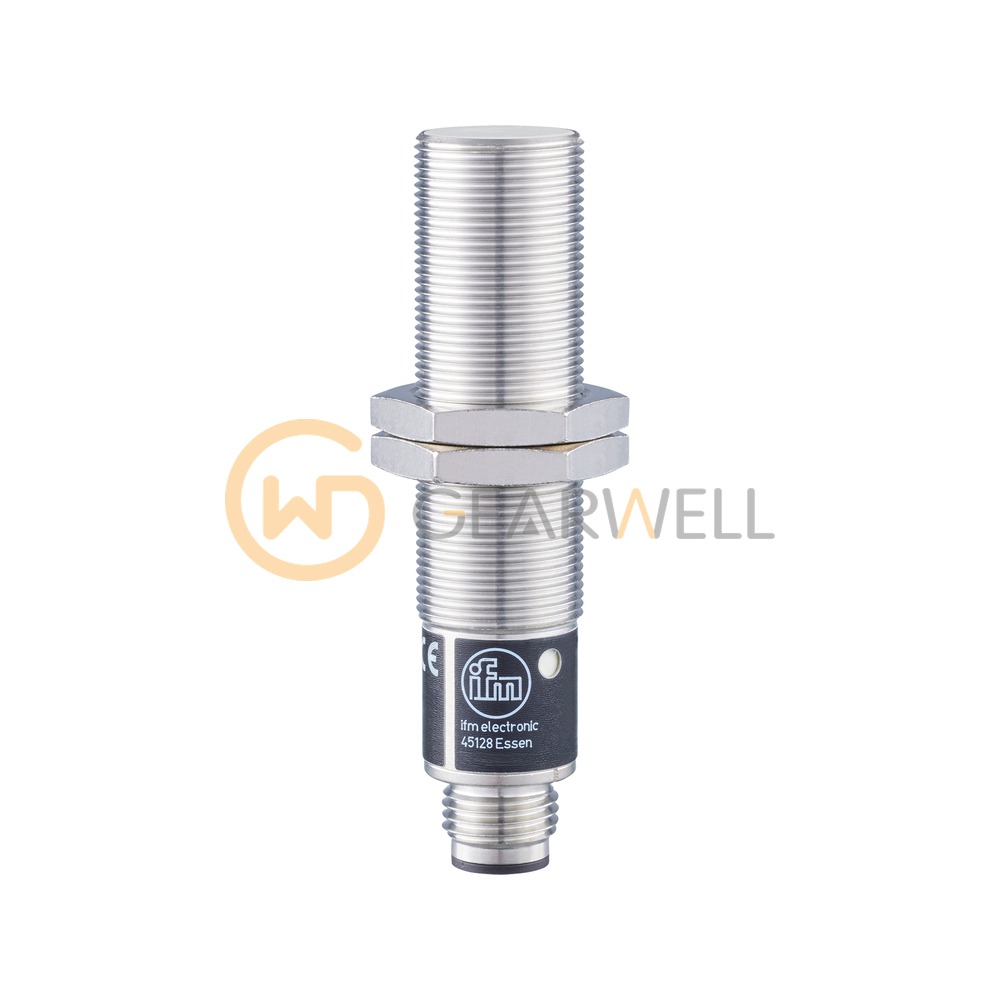

IFM IG0337 IGA2005-ABOA/SL/LS-100AK/RT Inductive Sensor

Product overview

The ifm IG0337 (IGA2005-ABOA/SL/LS-100AK/RT) is an inductive proximity sensor in an M18 x 1 threaded housing 79 mm long, for flush mounting. Its rated sensing range is 5 mm. The real sensing range is 5 mm ± 10% and the operating distance on steel is 0…4.05 mm. It is a two-wire normally open sensor for 20…250 V AC/DC, with an AC load current of 250 (350 (…50 °C)) mA and a switching frequency of 25 Hz on AC, or 100 mA and 100 Hz on DC. ifm specifies a fast-acting miniature fuse of 2 A or less in the supply. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.4 for brass, 0.3 for aluminum and 0.2 for copper. The sensor has a white-bronze-coated brass housing with a white PBT sensing face, connects through a 1/2-inch connector (C-coded, 3 contacts) and is rated IP67 for -25…80 °C ambient. It has UL approval under file E174191. Two lock nuts are included.
