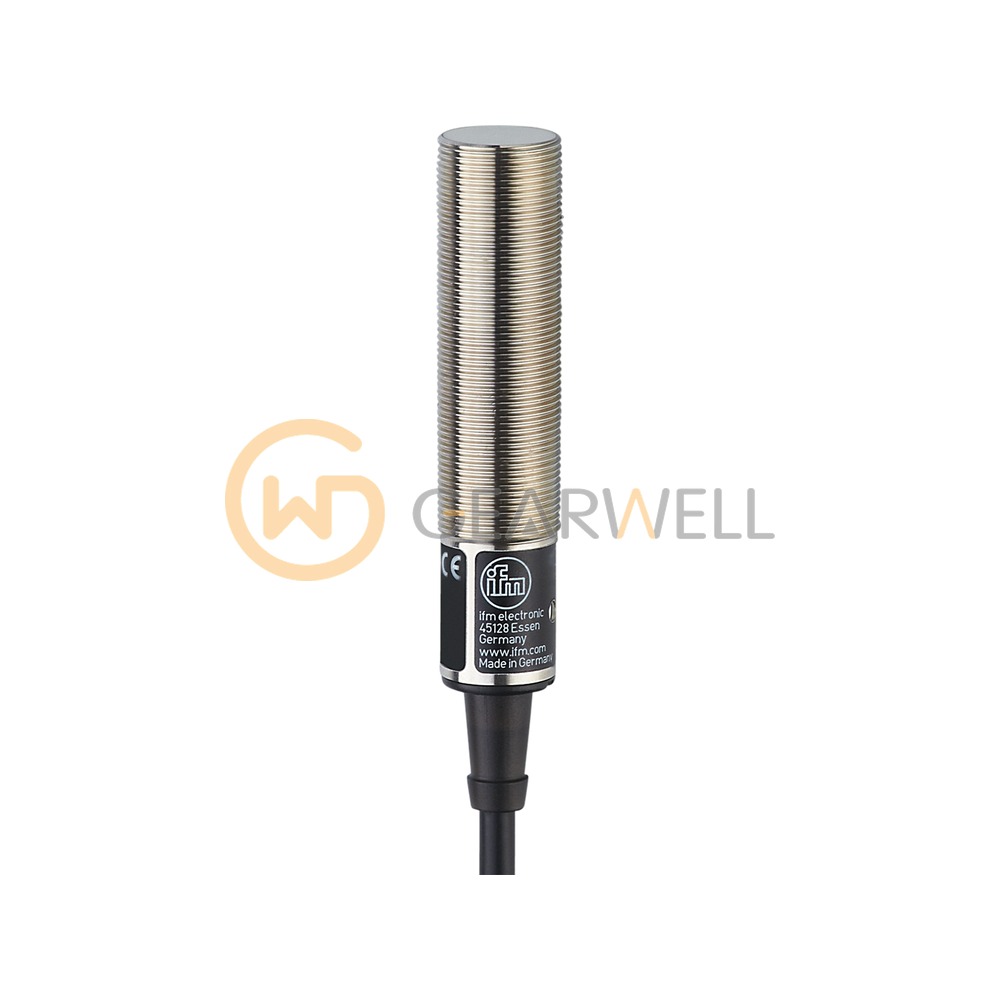

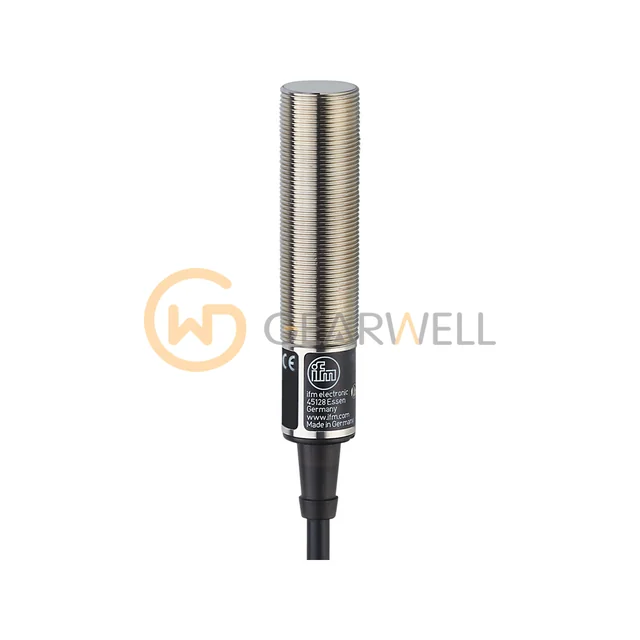

IFM IG0328 IGA2005-ABOA/V4A Inductive Sensor

Product overview

The ifm IG0328 (IGA2005-ABOA/V4A) is an inductive proximity sensor in an M18 x 1 threaded housing 80 mm long, for flush mounting. Its rated sensing range is 5 mm. The real sensing range is 5 mm ± 10% and the operating distance on steel is 0…4.05 mm. It is a two-wire normally open sensor for 20…250 V AC/DC, with an AC load current of 250 (350 (…50 °C)) mA and a switching frequency of 25 Hz on AC, or 100 mA and 50 Hz on DC. ifm specifies a fast-acting miniature fuse of 2 A or less in the supply. The sensor has a PBT uncolored housing, connects through a 2 m PVC cable with 2 x 0.5 mm² conductors and is rated IP67 for -25…80 °C ambient. It has UL approval under file E174191. Two lock nuts are included.
