IFM IFS203 IFB2007-ARKG/M/US-104-ARS Inductive Sensor

Product overview

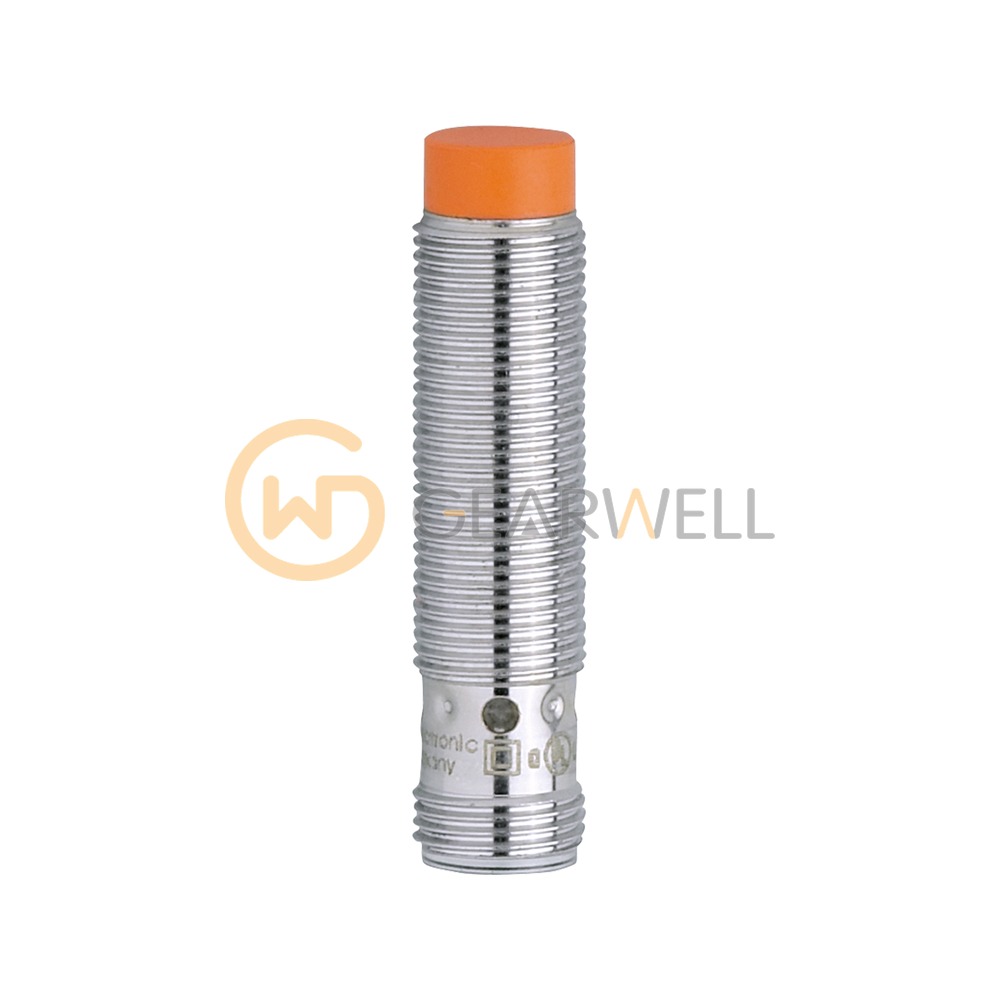

The ifm IFS203 (IFB2007-ARKG/M/US-104-ARS) is an inductive proximity sensor in an M12 x 1 threaded housing 50 mm long, for non-flush mounting. Its rated sensing range is 7 mm, which ifm classes as an increased sensing range. The real sensing range is 7 mm ± 10% and the operating distance on steel is 0…5.7 mm. The PNP/NPN switching output is normally open, rated at 100 mA and up to 700 Hz on 10…30 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.5 for brass, 0.4 for aluminum and 0.3 for copper. The sensor has a white-bronze-coated brass housing with a PBT sensing face, connects through an M12 connector (A-coded, 4 gold-plated contacts) and is rated IP67 for -25…70 °C ambient. It has UL approval under file E174191. Two lock nuts are included.
