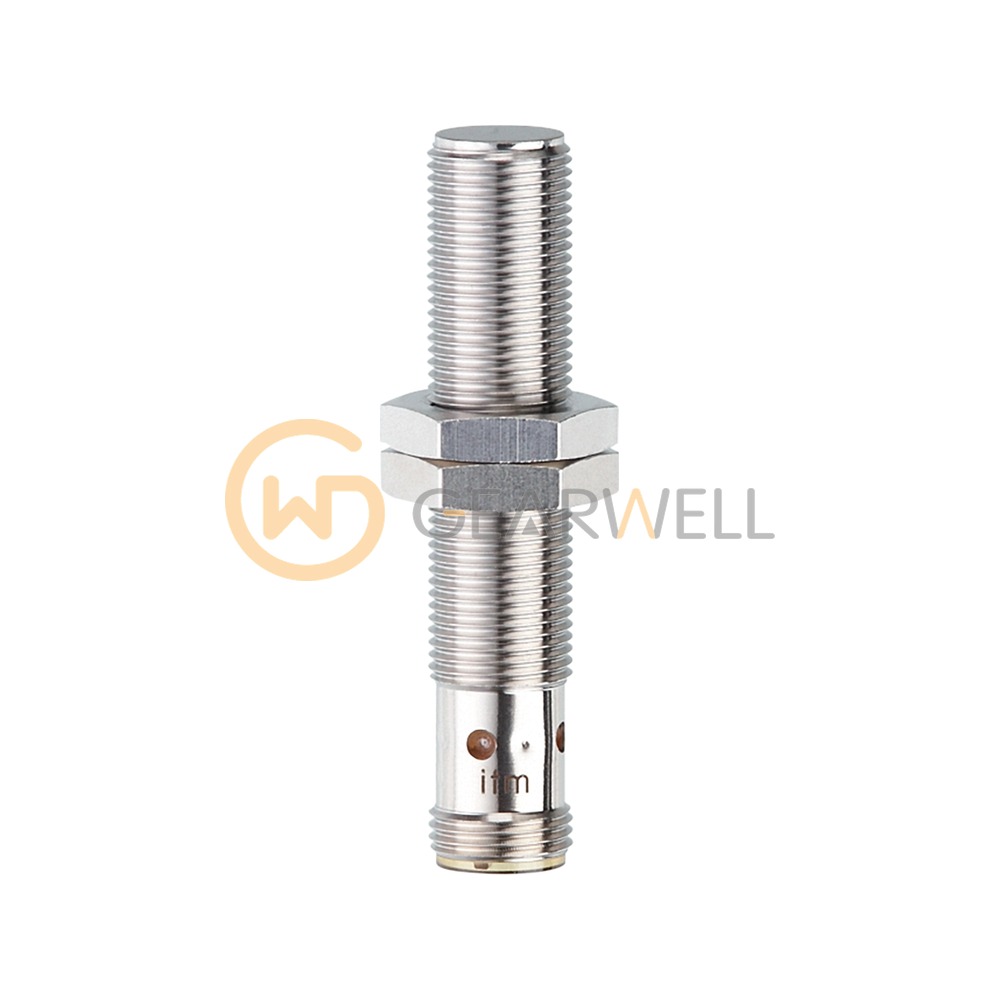

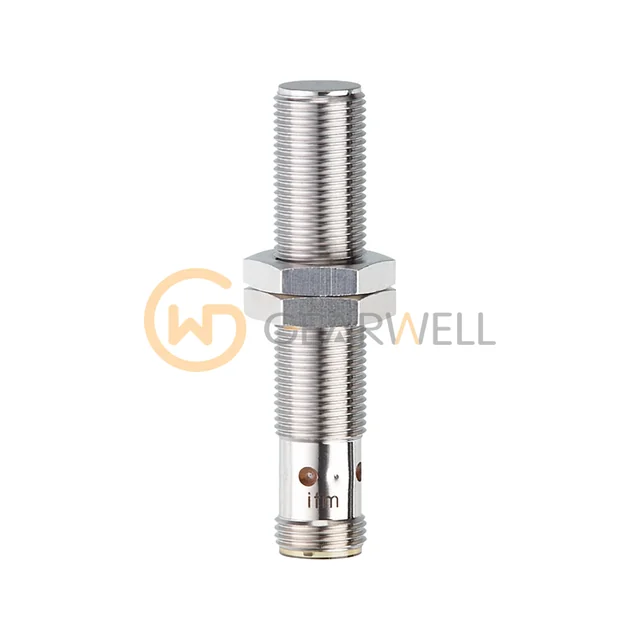

IFM IFC258 Inductive sensors Inductive full-metal sensor
- Brand
- IFM
- Model
- IFC258
- GEARWELL SKU
- GWP-000012288
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- M12 x 1 / L = 60 mm
- Protection
- IP 67; IP 68; ("Coolant")
- Sensing range
- 3 mm
- Output function
- normally open
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm IFC258 (IFK3003BBPKG/AM/V4A/US-104) is an inductive full-metal proximity sensor in an M12 x 1 threaded housing 60 mm long, for flush mounting. Its rated sensing range is 3 mm. The operating distance on steel is 0…2.4 mm. The PNP switching output is normally open, rated at 100 mA and up to 100 Hz on 10…30 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.6 for stainless steel, 0.7 for brass, 0.6 for aluminum and 0.3 for copper. The sensor has a stainless steel (1.4404 / 316L) housing with a stainless steel (1.4404 / 316L) sensing face, connects through an M12 connector (A-coded, 3 gold-plated contacts) and is rated IP67 and IP68 for -25…70 °C ambient. The sensing face withstands 100 bar, ifm lists it for use with oils and coolants and it has UL approval under file E174191. Two lock nuts are included.
Technical reference
| Product name | IFM IFC258 Inductive sensors Inductive full-metal sensor |
|---|---|
| Brand | IFM |
| Model | IFC258 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | M12 x 1 / L = 60 mm |
| Protection | IP 67; IP 68; ("Coolant") |
| Sensing range | 3 mm |
| Output function | normally open |
| Electrical design | PNP |
| Operating voltage | 10...30 DC V |
| Switching frequency DC | 100 Hz |
| Permanent current rating of switching output DC | 100 mA |
