IFM IF5751 IFK3004UBPKG/SC/US-104-DPS Inductive Sensor

Product overview

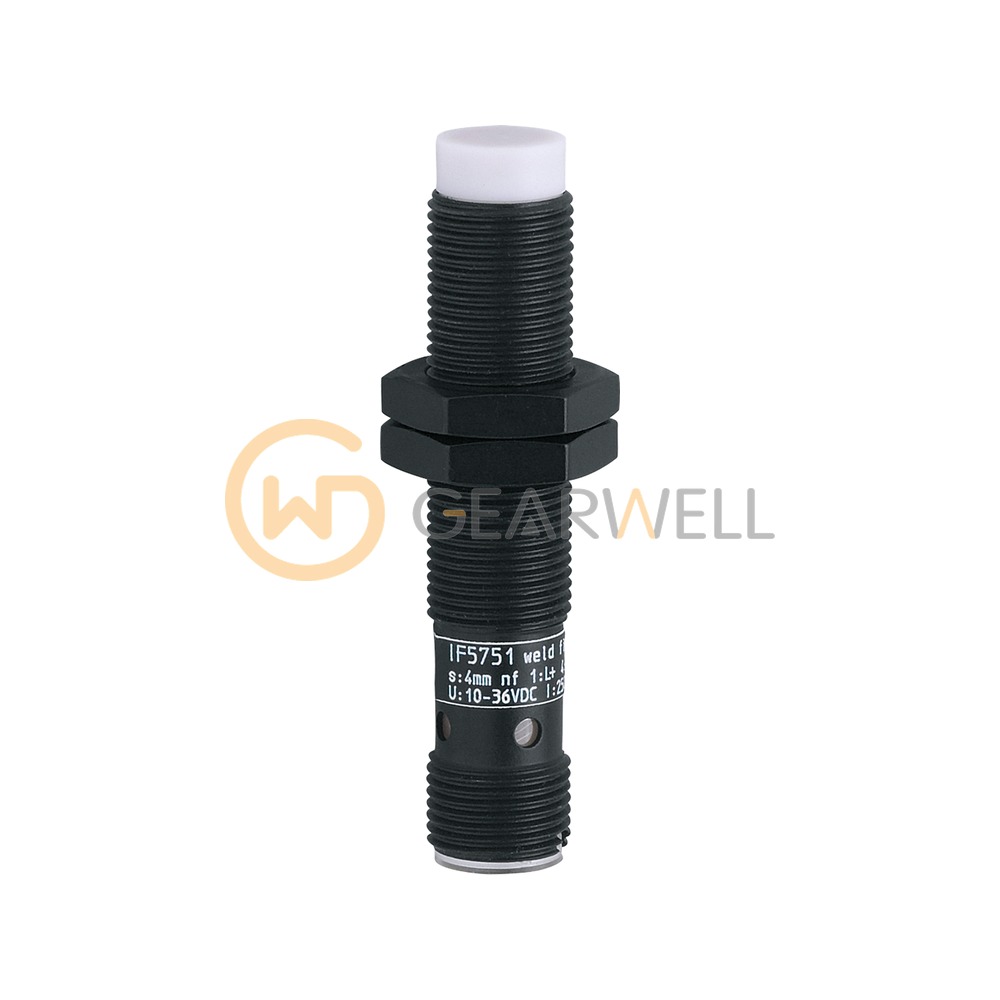

The ifm IF5751 (IFK3004UBPKG/SC/US-104-DPS) is an inductive proximity sensor in an M12 x 1 threaded housing 60 mm long, for non-flush mounting. Its rated sensing range is 4 mm. The real sensing range is 4 mm ± 10% and the operating distance on steel is 0…3.25 mm. The PNP switching output is normally open, rated at 250 mA and up to 1000 Hz on 10…36 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.4 for brass, 0.3 for aluminum and 0.2 for copper. The sensor has a PTFE-coated brass housing with a PTFE sensing face, connects through an M12 connector (A-coded, 4 contacts) and is rated IP67 for -25…70 °C ambient. It is immune to magnetic fields and it has UL approval under file E174191. Two lock nuts are included.
