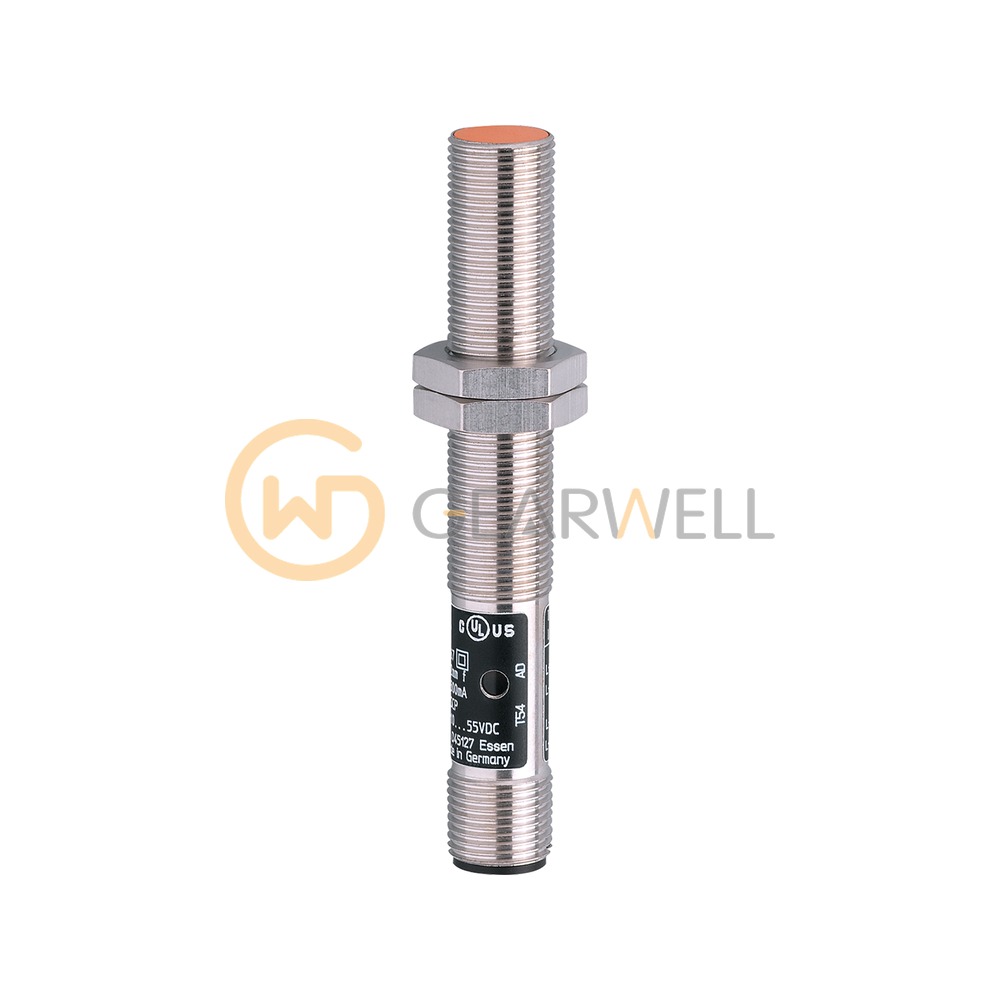

IFM IF5598 IFA2002-FRKG/US-100-IRF Inductive Sensor
- Brand
- IFM
- Model
- IF5598
- GEARWELL SKU
- GWP-000008807
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- M12 x 1 / L = 83 mm
- Protection
- IP 67
- Sensing range
- 2 mm
- Output function
- normally open / normally closed (selectable)
- Electrical design
- PNP/NPN
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm IF5598 (IFA2002-FRKG/US-100-IRF) is an inductive proximity sensor in an M12 x 1 threaded housing 83 mm long, for flush mounting. Its rated sensing range is 2 mm. The real sensing range is 2 mm ± 10% and the operating distance on steel is 0…1.6 mm. The PNP/NPN switching output is selectable as normally open or normally closed, rated at 300 mA and up to 1100 Hz on 10…55 V DC, with reverse polarity and short-circuit protection. The sensor has a white-bronze-coated brass housing with a PC sensing face, connects through an M12 connector (A-coded, 4 contacts) and is rated IP67 for -25…80 °C ambient. It has UL approval under file E174191. Two lock nuts are included.
Technical reference
| Product name | IFM IF5598 IFA2002-FRKG/US-100-IRF Inductive Sensor |
|---|---|
| Brand | IFM |
| Model | IF5598 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | M12 x 1 / L = 83 mm |
| Protection | IP 67 |
| Sensing range | 2 mm |
| Output function | normally open / normally closed (selectable) |
| Electrical design | PNP/NPN |
| Operating voltage | 10...55 DC V |
| Ambient temperature | -25...80 °C |
| Switching frequency DC | 1100 Hz |
