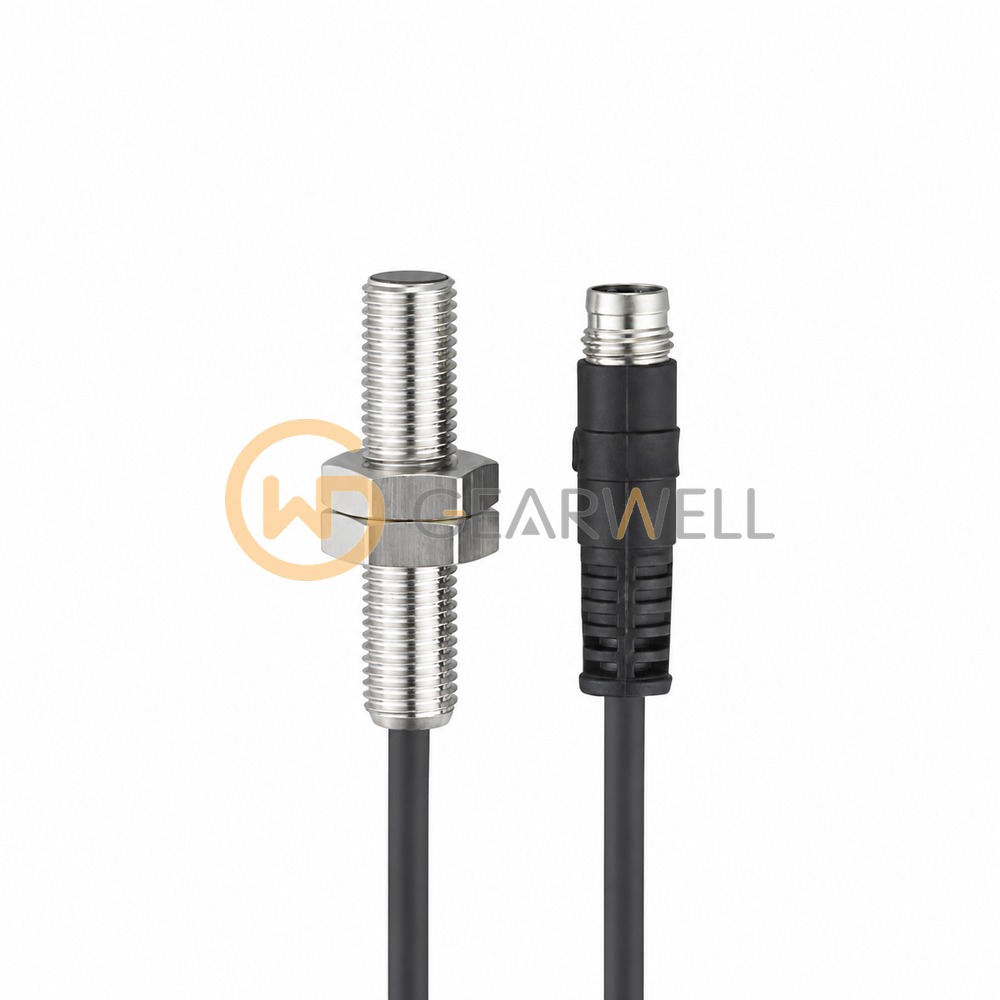

IFM IE5336 Inductive Proximity Sensor

Product overview

The ifm IE5336 (IEB3002BBPKG/0,185M/PH/AS610) is an inductive proximity sensor in an M8 x 1 threaded housing 38 mm long, for flush mounting. Its rated sensing range is 2 mm. The real sensing range is 2 mm ± 10% and the operating distance on steel is 0…1.62 mm. The PNP switching output is normally open, rated at 200 mA and up to 1000 Hz on 10…36 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.5 for brass, 0.4 for aluminum and 0.3 for copper. The sensor has a white-bronze-coated brass housing with an LCP sensing face, connects through an M8 connector (A-coded, 3 contacts, snap-fit locking) and is rated IP65 for -25…70 °C ambient. It has UL approval under file E174191. Two lock nuts are included.
