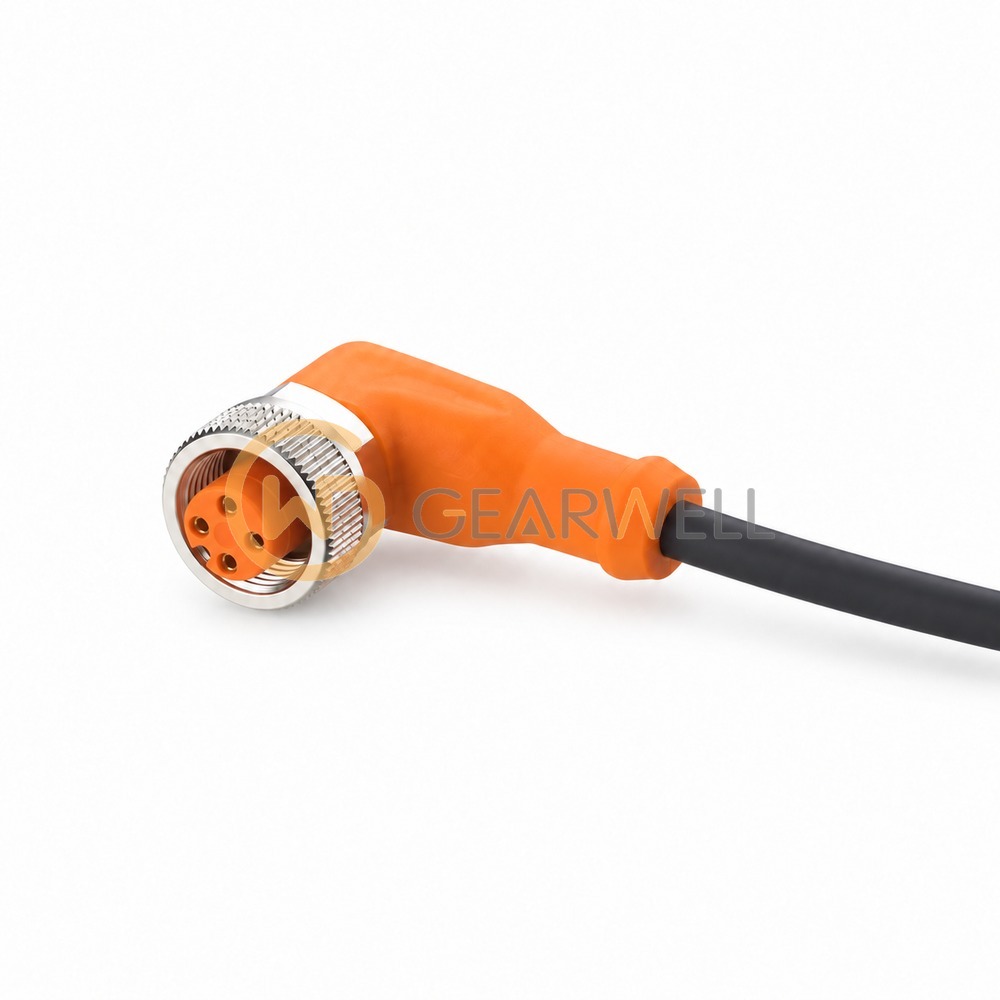

IFM EVC006 M12 4-pin Angled Female Connecting Cable, 10 m PUR
- Brand
- IFM
- Model
- EVC006
- GEARWELL SKU
- GWP-000000077
- Category
- Terminals, Cables & Connectors
Key specifications
- Contacts
- 4, gold-plated
- Connector
- M12 angled female, A-coded
- Cable length
- 10 m
- Cable material
- PUR, halogen-free, black
- Conductor cross-section
- 4 × 0.34 mm²
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm EVC006 (ADOAH040MSS0010H04) is a female cordset with an angled M12 connector (A-coded, 4 gold-plated contacts) for industrial applications and use with oils and coolants; it is halogen-free, free from silicone and suitable for drag chains. The 10 m black PUR cable is Ø 4.3 mm with 4 x 0.34 mm² conductors. It is rated for below 250 V AC / below 300 V DC and 4 A in total, has a TPU body with a nickel-plated brass nut (tightening torque 0.6…1.5 Nm) and is rated IP65, IP67, IP68 and IP69K for -25…90 °C ambient.
Technical reference
| Product name | IFM EVC006 M12 4-pin Angled Female Connecting Cable, 10 m PUR |
|---|---|
| Brand | IFM |
| Model | EVC006 |
| Category | Terminals, Cables & Connectors |
| Contacts | 4, gold-plated |
| Connector | M12 angled female, A-coded |
| Cable length | 10 m |
| Cable material | PUR, halogen-free, black |
| Conductor cross-section | 4 × 0.34 mm² |
