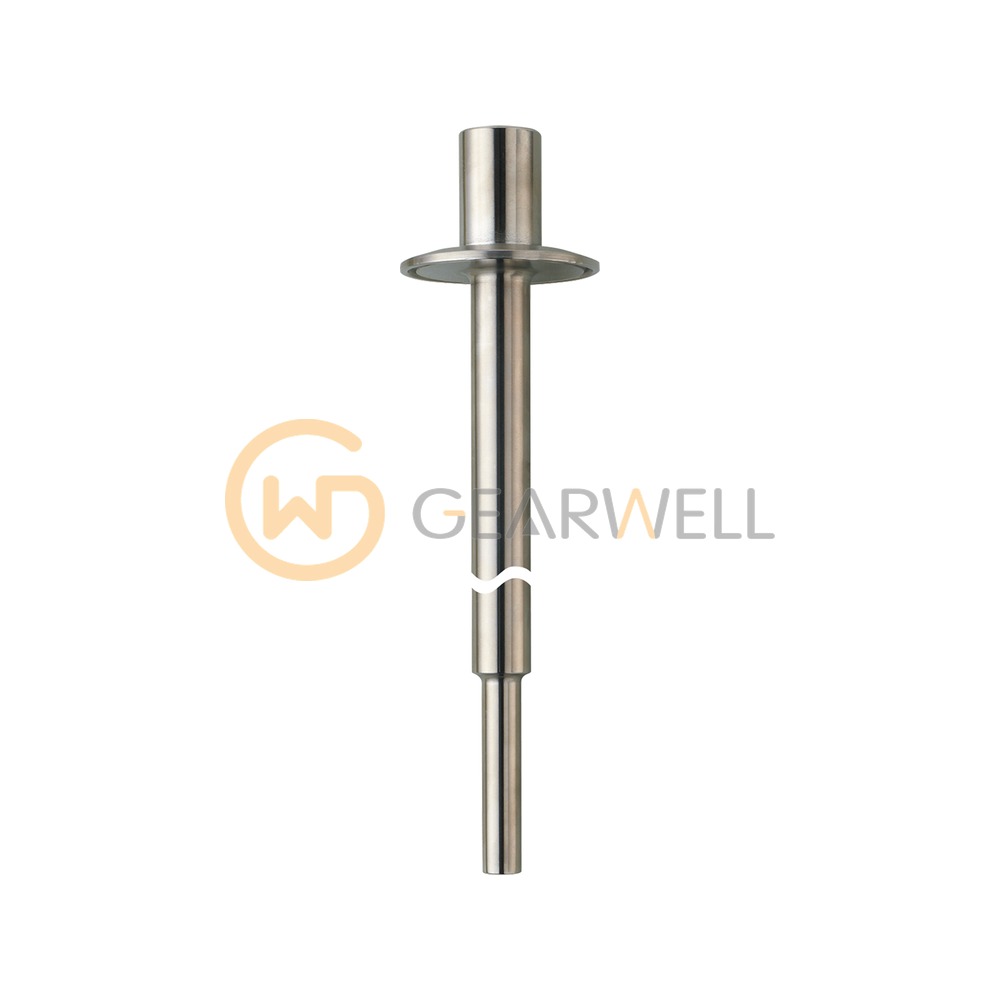

IFM E37910 Thermowell for temperature sensors
- Brand
- IFM
- Model
- E37910
- GEARWELL SKU
- GWP-000016700
- Category
- Pressure, Flow & Temperature
Key specifications
- Design
- for temperature sensors EL = 100 mm
- Weight
- 296.2 g
- Material
- stainless steel (1.4404 / 316L)
- Pressure rating
- 25 bar / 2.5 MPa
- Sensor connection
- 1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM E37910 Thermowell for temperature sensors |
|---|---|
| Brand | IFM |
| Model | E37910 |
| Category | Pressure, Flow & Temperature |
| Design | for temperature sensors EL = 100 mm |
| Weight | 296.2 g |
| Material | stainless steel (1.4404 / 316L) |
| Pressure rating | 25 bar / 2.5 MPa |
| Sensor connection | 1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT |
| Process connection | Clamp DN50 (2") DIN 32676 (ISO 2852) |
| Installation length EL | 64 mm |
| Surface characteristics Ra/Rz of the wetted parts | Ra < 0.6 µm |
