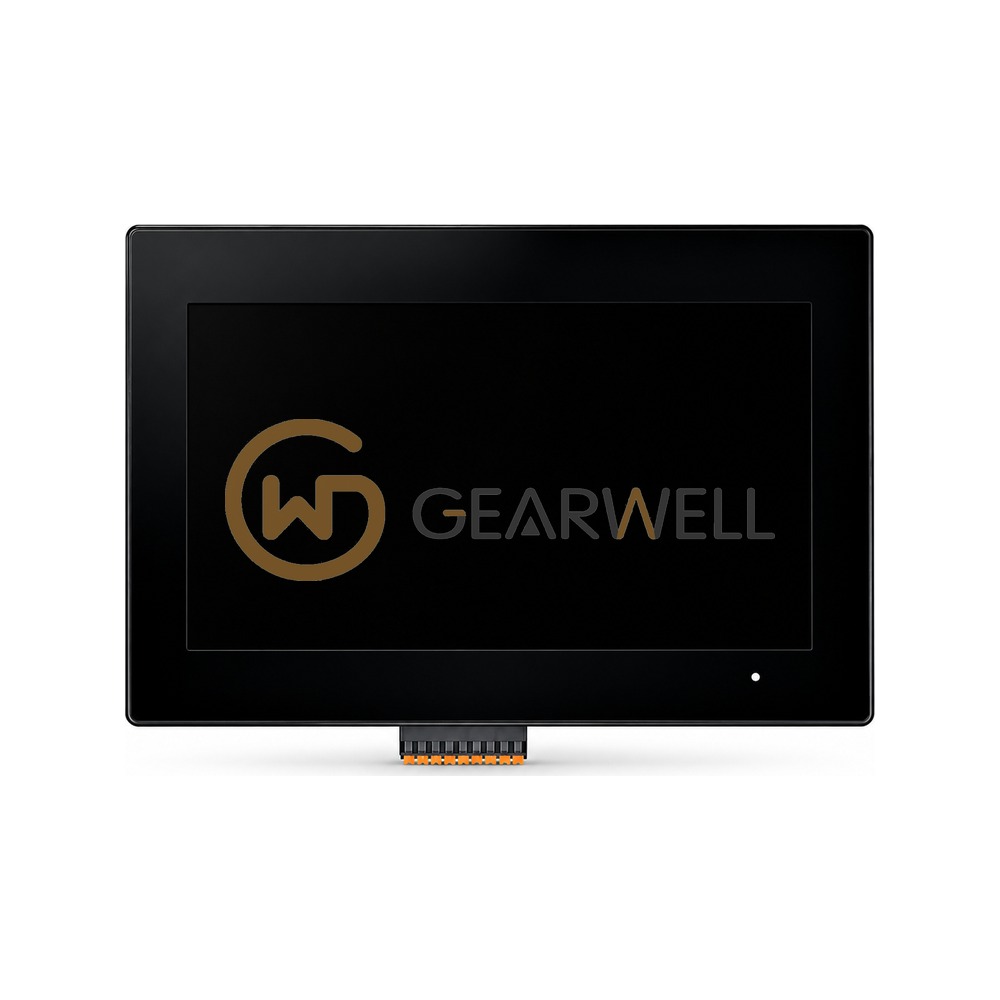

IDEC HG2J-7UT22TF-B HG2J 7-inch TFT Touchscreen HMI, Black Bezel
- Brand
- IDEC
- Model
- HG2J-7UT22TF-B
- GEARWELL SKU
- GWP-000016593
- Category
- HMIs & Industrial PCs
Key specifications
- Display
- 7.0-inch TFT colour LCD (TN type), 65,536 colours
- Interfaces
- 1 x Ethernet 10BASE-T/100BASE-TX, 1 x serial, 2 x USB
- Touch type
- Projected capacitive
- Bezel colour
- Black
- Supply voltage
- 12/24 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IDEC HG2J-7UT22TF-B HG2J 7-inch TFT Touchscreen HMI, Black Bezel |
|---|---|
| Brand | IDEC |
| Model | HG2J-7UT22TF-B |
| Category | HMIs & Industrial PCs |
| Display | 7.0-inch TFT colour LCD (TN type), 65,536 colours |
| Interfaces | 1 x Ethernet 10BASE-T/100BASE-TX, 1 x serial, 2 x USB |
| Touch type | Projected capacitive |
| Bezel colour | Black |
| Supply voltage | 12/24 V DC |
| Front protection | IP66F / IP67F |
| Power consumption | 13 W |
| Ethernet protocols | EtherNet/IP, Modbus TCP, MQTT, Email, FTP, Web Server |
| Dimensions (W x H x D) | 186 x 128 x 30.4 mm |
| Operating temperature | -20 to +60 °C |
