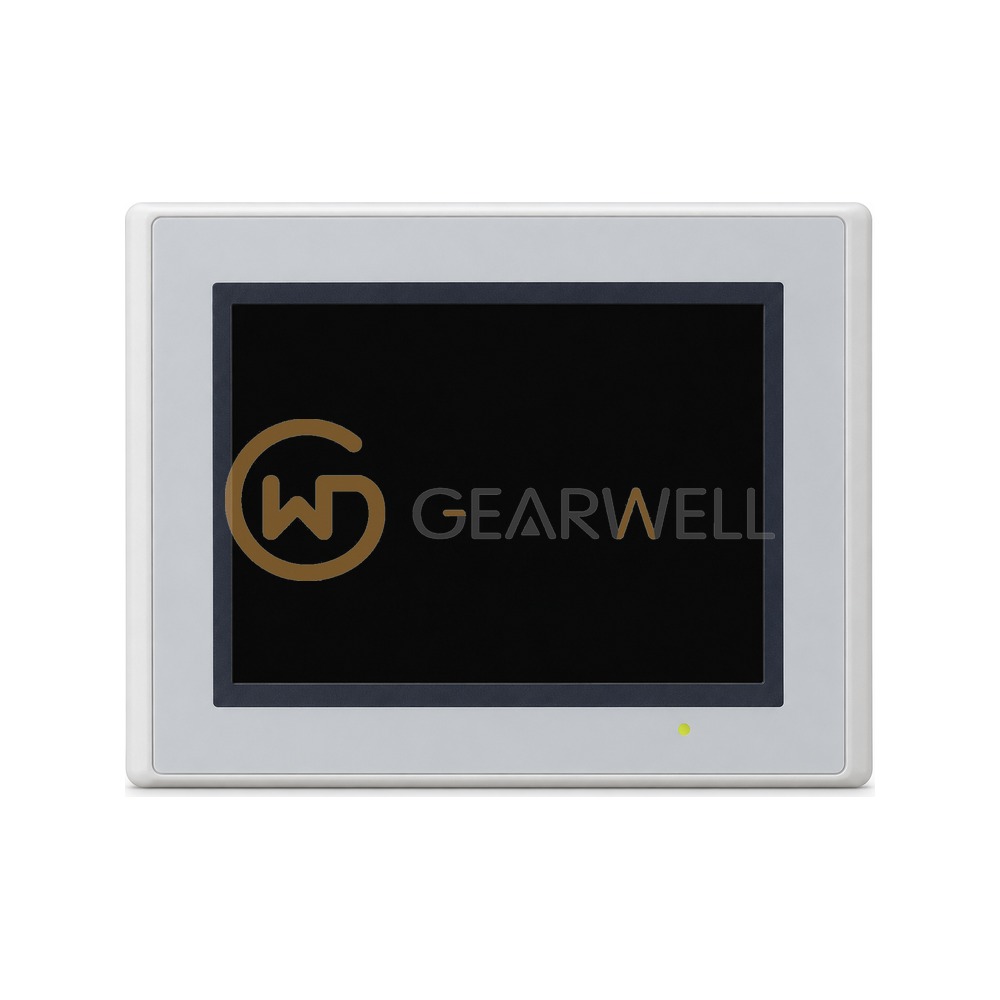

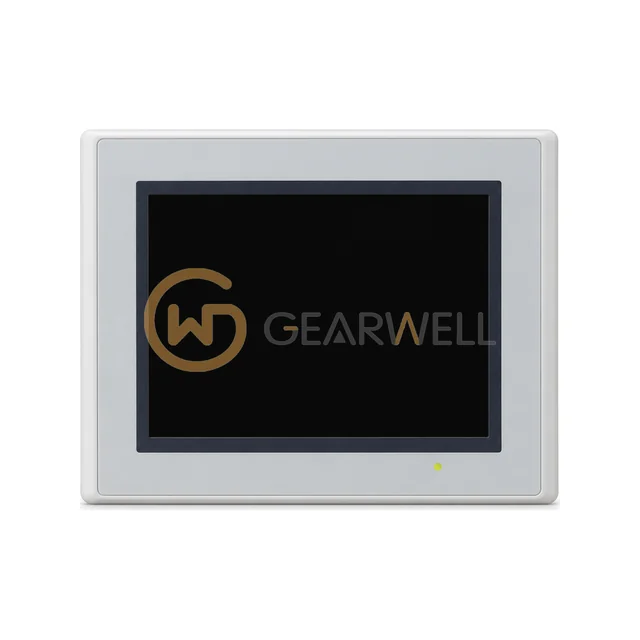

IDEC HG2G-V5FT22TF-W HG2G-V 5.7-inch TFT Touchscreen HMI, White Bezel
- Brand
- IDEC
- Model
- HG2G-V5FT22TF-W
- GEARWELL SKU
- GWP-000016592
- Category
- HMIs & Industrial PCs
Key specifications
- Display
- 5.7-inch TFT, 65K colours
- Brightness
- up to 800 cd/m²
- Bezel colour
- White
- Operating temperature
- -20 to +60 °C
- Interfaces (HG2G-V 5.7-inch)
- 1 x Ethernet, 2 x serial (RS-232/RS-422/RS-485), 2 x USB
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IDEC HG2G-V5FT22TF-W HG2G-V 5.7-inch TFT Touchscreen HMI, White Bezel |
|---|---|
| Brand | IDEC |
| Model | HG2G-V5FT22TF-W |
| Category | HMIs & Industrial PCs |
| Display | 5.7-inch TFT, 65K colours |
| Brightness | up to 800 cd/m² |
| Bezel colour | White |
| Operating temperature | -20 to +60 °C |
| Interfaces (HG2G-V 5.7-inch) | 1 x Ethernet, 2 x serial (RS-232/RS-422/RS-485), 2 x USB |
| Touch type (HG2G-V 5.7-inch) | Analog resistive |
| Panel cut-out (HG2G-V 5.7-inch) | 121 x 153 mm |
| Supply voltage (HG2G-V 5.7-inch) | 24 V DC |
| Front protection (HG2G-V 5.7-inch) | IP66F / IP67F |
| Power consumption (HG2G-V 5.7-inch) | 18 W max |
