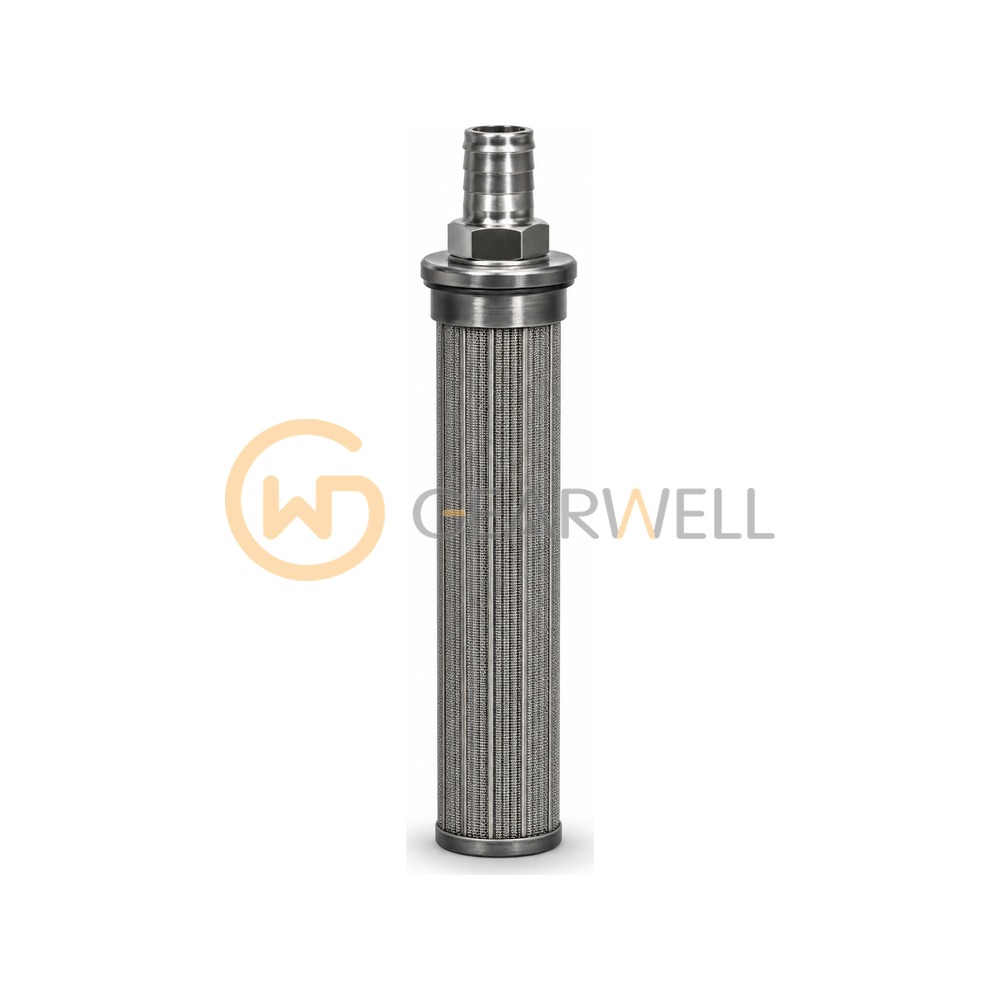

HYDAC HTMS HB 2/2.5 100 HTMS Tank-Mounted Suction Strainer
- Brand
- HYDAC
- Model
- HTMS HB 2/2.5 100
- GEARWELL SKU
- GWP-000015346
- Category
- Filtration & Accessories
Key specifications
- Options
- Standard (no bypass)
- Hex size
- 2.50 in
- Mesh size
- 149 µm / 100 mesh
- Diameter E
- 82 mm
- Model code
- HTMS HB 2.00"/SAE-48 100
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | HYDAC HTMS HB 2/2.5 100 HTMS Tank-Mounted Suction Strainer |
|---|---|
| Brand | HYDAC |
| Model | HTMS HB 2/2.5 100 |
| Category | Filtration & Accessories |
| Options | Standard (no bypass) |
| Hex size | 2.50 in |
| Mesh size | 149 µm / 100 mesh |
| Diameter E | 82 mm |
| Model code | HTMS HB 2.00"/SAE-48 100 |
| Part number | 2078488 |
| End type / size | Hose barb, 2.00 in |
| Overall length L | 275 mm |
| Tank-side thread | SAE-48 J514 (3-3/8 in.-12) |
| Nominal flow rating | 40 gpm |
