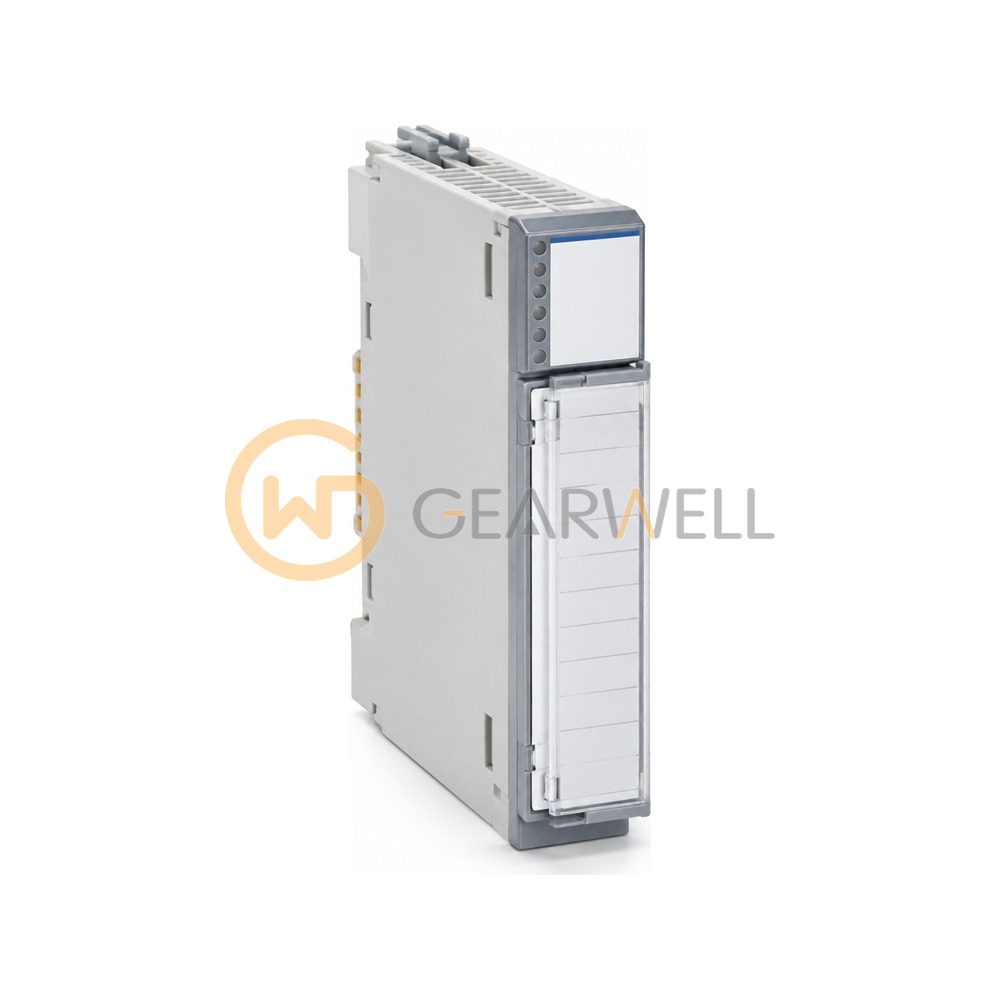

Horner HE693ADC409A Series 90-30 4-Channel Millivolt Input Module

Key specifications

Accuracy: +/-0.05 %
Channels: 4
Evidence: Horner APG MAN0040-07 HE693ADC406/409 Millivolt Input Module (hornerautomation.com)
Resolution: 14 bit (3 / 6 / 9 uV per range)
Update rate: 35 channels per second

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Horner HE693ADC409A Series 90-30 4-Channel Millivolt Input Module
Brand	Horner
Model	HE693ADC409A
Category	PLCs & I/O
Accuracy	+/-0.05 %
Channels	4
Evidence	Horner APG MAN0040-07 HE693ADC406/409 Millivolt Input Module (hornerautomation.com)
Resolution	14 bit (3 / 6 / 9 uV per range)
Update rate	35 channels per second
Input ranges	+/-25 mV, +/-50 mV, +/-100 mV (selectable)
Code suffix "A"	as collected; not listed in the official manual
Input impedance	>20 Mohm
Power consumption	100 mA at 5 VDC
I/O points required	4 %AI
Operating temperature	0 to 60 °C
