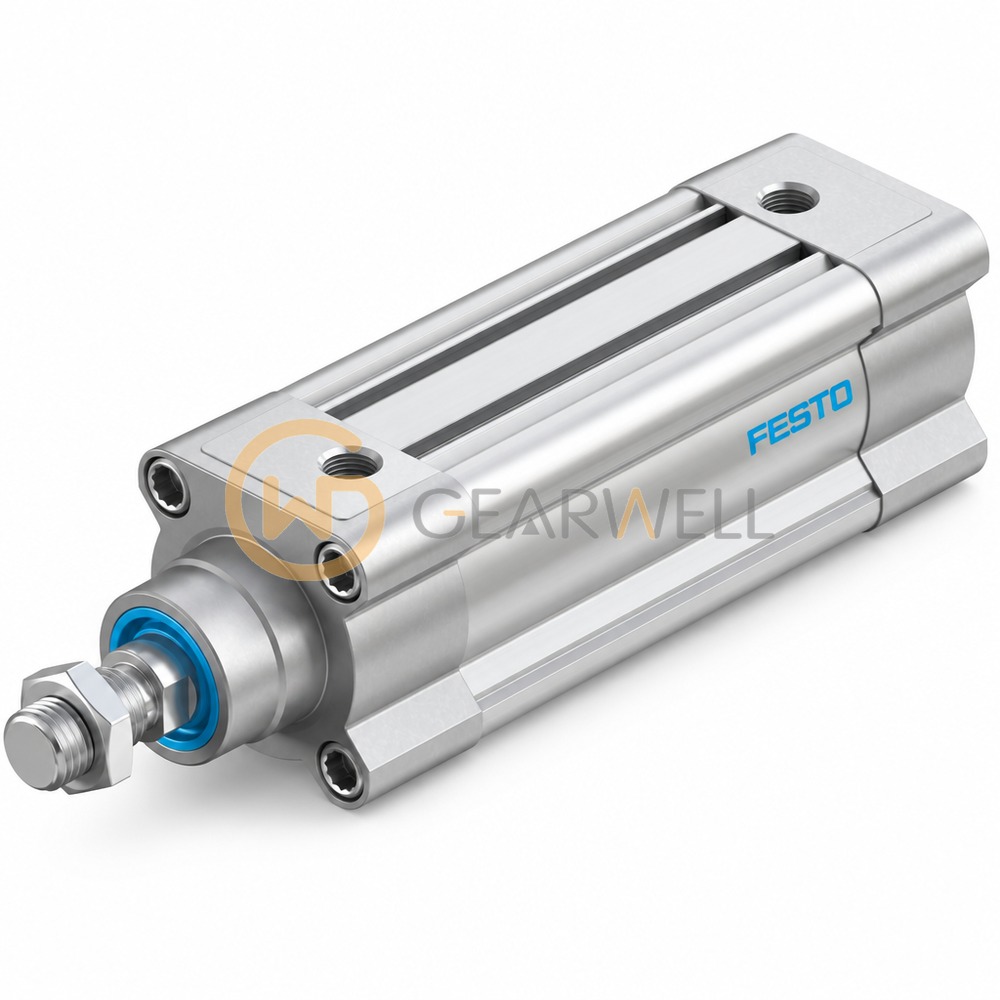

FESTO 1366951 DSBC Standard Cylinder
- Brand
- FESTO
- Model
- 1366951
- GEARWELL SKU
- GWP-000027533
- Category
- Cylinders & Actuators
Key specifications
- Stroke
- 80 mm
- Variant
- Single-ended piston rod
- Moving mass
- 565 g
- Cover material
- Coated die-cast aluminium
- Materials note
- RoHS-compliant
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FESTO 1366951 DSBC Standard Cylinder |
|---|---|
| Brand | FESTO |
| Model | 1366951 |
| Category | Cylinders & Actuators |
| Stroke | 80 mm |
| Variant | Single-ended piston rod |
| Moving mass | 565 g |
| Cover material | Coated die-cast aluminium |
| Materials note | RoHS-compliant |
| Product weight | 1638 g |
| PWIS conformity | VDMA24364-B1/B2-L |
| Position sensing | Via proximity sensor |
| Mounting position | Any |
| Specification note | Specifications from supplier data; please verify against the nameplate before ordering. |
| Ambient temperature | -20 to +80 °C |
| Pneumatic connection | G1/4 |
| Basic weight at 0 mm stroke | 1190 g |
| Corrosion resistance class (CRC) | 2 - moderate corrosion stress |
| Additional weight per 10 mm stroke | 56 g |
| Additional moving mass per 10 mm stroke | 25 g |
