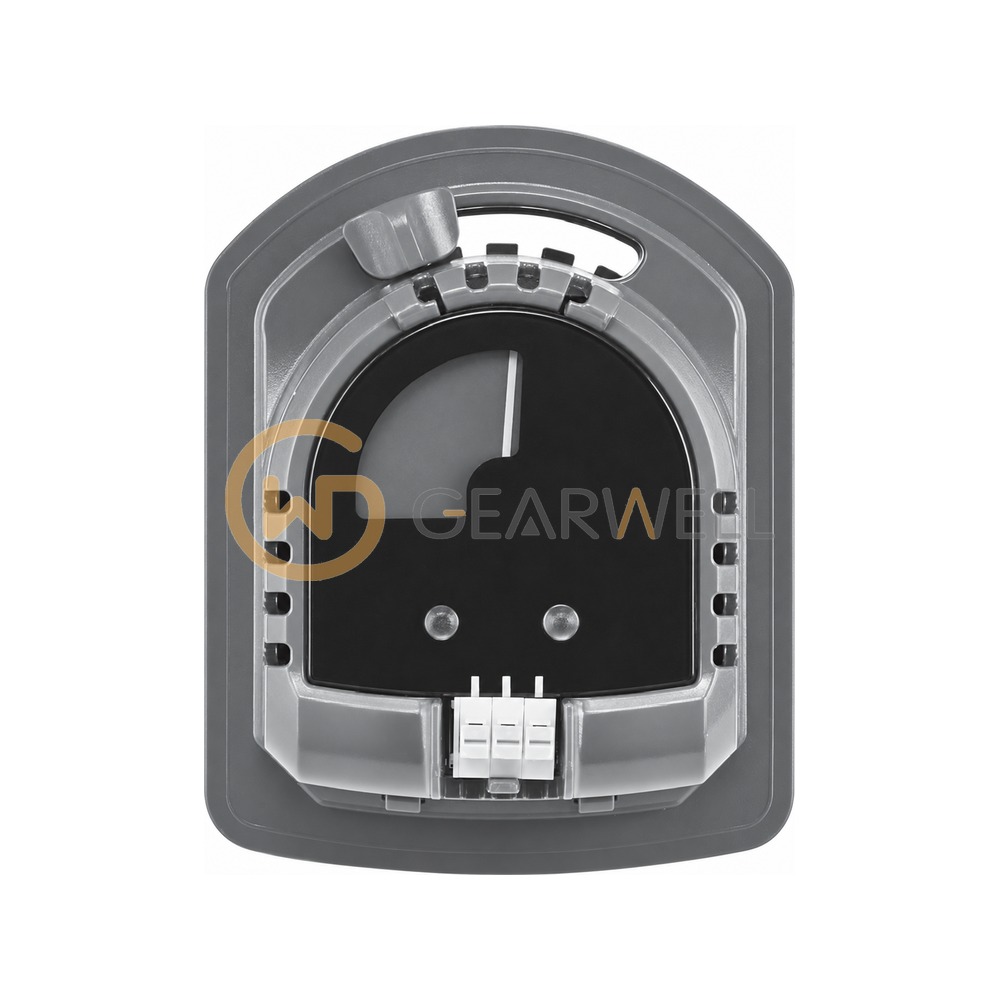

Honeywell M847D-ZONE TrueZONE Spring Return Zone Damper Actuator
- Brand
- HONEYWELL
- Model
- M847D-ZONE
- GEARWELL SKU
- GWP-000015752
- Category
- Cylinders & Actuators
Key specifications
- Use
- ARD and ZD zone dampers (power closed / spring open)
- Supply
- 24 Vac, 50/60 Hz, 0.32 A motor
- Timing
- 30 s energized / 10 s spring return
- Torque
- 60 in-oz (0.423 Nm)
- Wiring
- M1 and M6 power; M4 optional LED
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Honeywell M847D-ZONE TrueZONE Spring Return Zone Damper Actuator |
|---|---|
| Brand | HONEYWELL |
| Model | M847D-ZONE |
| Category | Cylinders & Actuators |
| Use | ARD and ZD zone dampers (power closed / spring open) |
| Supply | 24 Vac, 50/60 Hz, 0.32 A motor |
| Timing | 30 s energized / 10 s spring return |
| Torque | 60 in-oz (0.423 Nm) |
| Wiring | M1 and M6 power; M4 optional LED |
| Ambient temperature | 5 to 60 °C |
| Nominal angular rotation | 90 (max. 105) ° |
