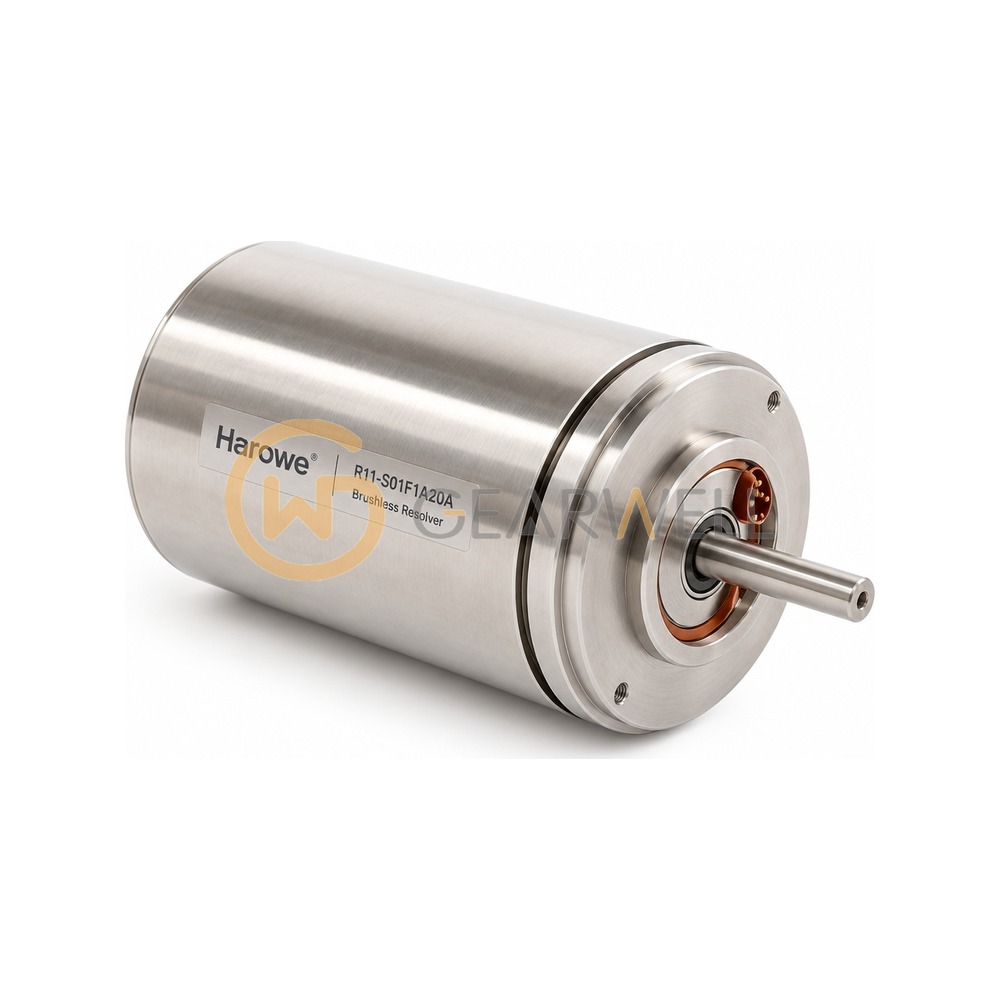

Harowe R11-S01F1A20A Series 11/R11 Heavy Duty Brushless Resolver
- Brand
- Harowe
- Model
- R11-S01F1A20A
- GEARWELL SKU
- GWP-000034435
- Category
- Encoders & Position
Key specifications
- Speed
- 1 (single speed)
- Brand note
- Seller listed under HENGSTLER; Harowe is a Dynapar brand
- Input current
- 21.0 mA
- Input voltage
- 1.88 Vrms
- Code suffix "20A"
- as collected; datasheet lists base codes only (complete part number set by shaft, leads, accuracy options)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Harowe R11-S01F1A20A Series 11/R11 Heavy Duty Brushless Resolver |
|---|---|
| Brand | Harowe |
| Model | R11-S01F1A20A |
| Category | Encoders & Position |
| Speed | 1 (single speed) |
| Brand note | Seller listed under HENGSTLER; Harowe is a Dynapar brand |
| Input current | 21.0 mA |
| Input voltage | 1.88 Vrms |
| Code suffix "20A" | as collected; datasheet lists base codes only (complete part number set by shaft, leads, accuracy options) |
| Input frequency | 2,250 Hz |
| Primary winding | Rotor |
| Maximum accuracy | 20 arc-min |
| Base model (datasheet) | R11-S01F-1A |
| Transformation ratio | 1.40 |
| Temperature range (series) | up to 125 °C |
