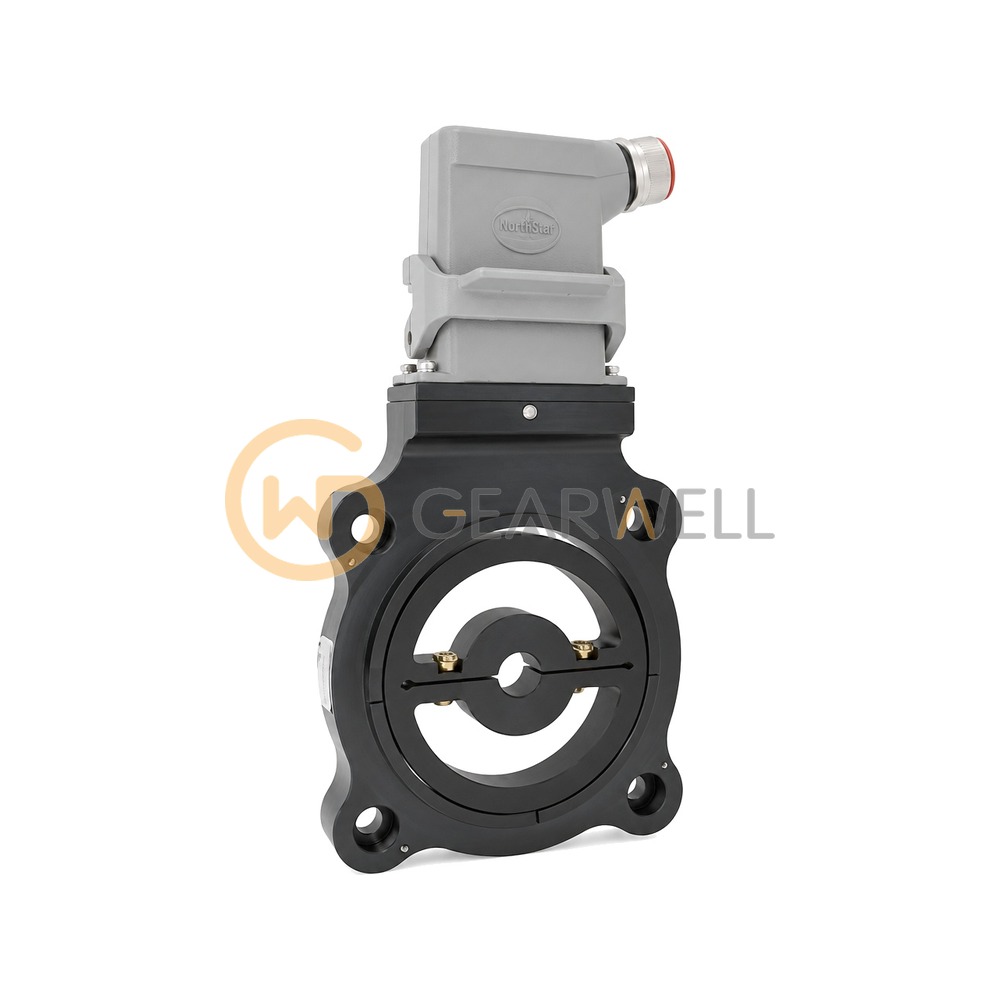

NorthStar ST50128LC06QHCC ST56 Magnetic Hollow Shaft Encoder
- Brand
- NorthStar
- Model
- ST50128LC06QHCC
- GEARWELL SKU
- GWP-000034740
- Category
- Encoders & Position
Key specifications
- Sensing
- Magnetic, bearingless
- Mounting
- NEMA 4.5" 56 C-Face & 140 C-Face
- Bore size
- 25.4 mm
- Brand note
- Seller listed under HENGSTLER; NorthStar is a Dynapar brand
- Resolution
- 128 PPR
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | NorthStar ST50128LC06QHCC ST56 Magnetic Hollow Shaft Encoder |
|---|---|
| Brand | NorthStar |
| Model | ST50128LC06QHCC |
| Category | Encoders & Position |
| Sensing | Magnetic, bearingless |
| Mounting | NEMA 4.5" 56 C-Face & 140 C-Face |
| Bore size | 25.4 mm |
| Brand note | Seller listed under HENGSTLER; NorthStar is a Dynapar brand |
| Resolution | 128 PPR |
| Termination | 18 in cable with latching industrial connector |
| Input voltage | 5-26 VDC |
| Maximum speed | 7000 rpm |
| Incremental signals | A, A', B, B' |
| Operating temperature | -40 to +120 °C |
