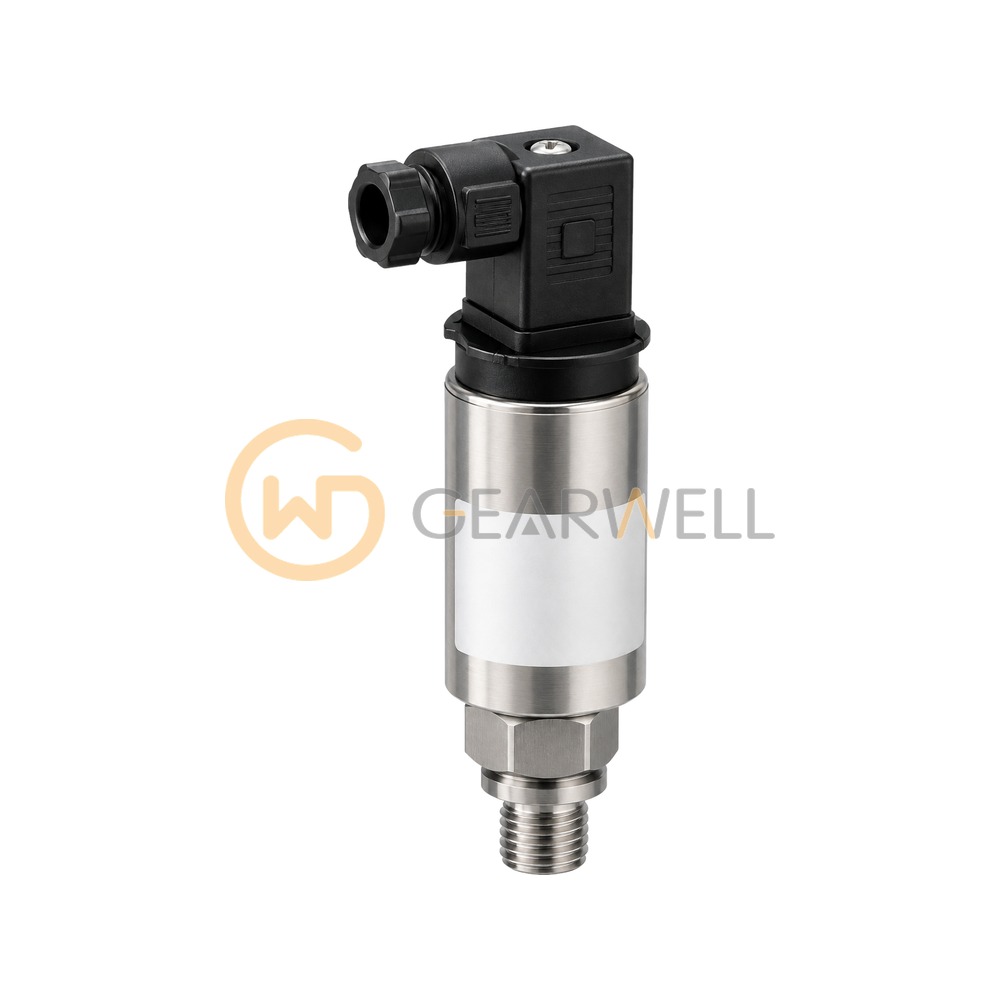

Gems 2200BGH3001A3UA 2200 Series Industrial Pressure Transducer
- Brand
- Gems
- Model
- 2200BGH3001A3UA
- GEARWELL SKU
- GWP-000015190
- Category
- Pressure, Flow & Temperature
Key specifications
- Output
- 4-20 mA
- Series
- 2200
- Cable length
- No cable fitted
- Pressure port
- G 1/4 External
- Pressure datum
- Gauge
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Gems 2200BGH3001A3UA 2200 Series Industrial Pressure Transducer |
|---|---|
| Brand | Gems |
| Model | 2200BGH3001A3UA |
| Category | Pressure, Flow & Temperature |
| Output | 4-20 mA |
| Series | 2200 |
| Cable length | No cable fitted |
| Pressure port | G 1/4 External |
| Pressure datum | Gauge |
| Pressure range | 0-3000 psi |
| Apparatus protection | Amplified only, RFI protected, CE mark, UR |
| Electrical connection | 4 pin DIN (Micro), mating connector supplied |
| Performance (accuracy/thermal) | 0.25% / 1.5% |
