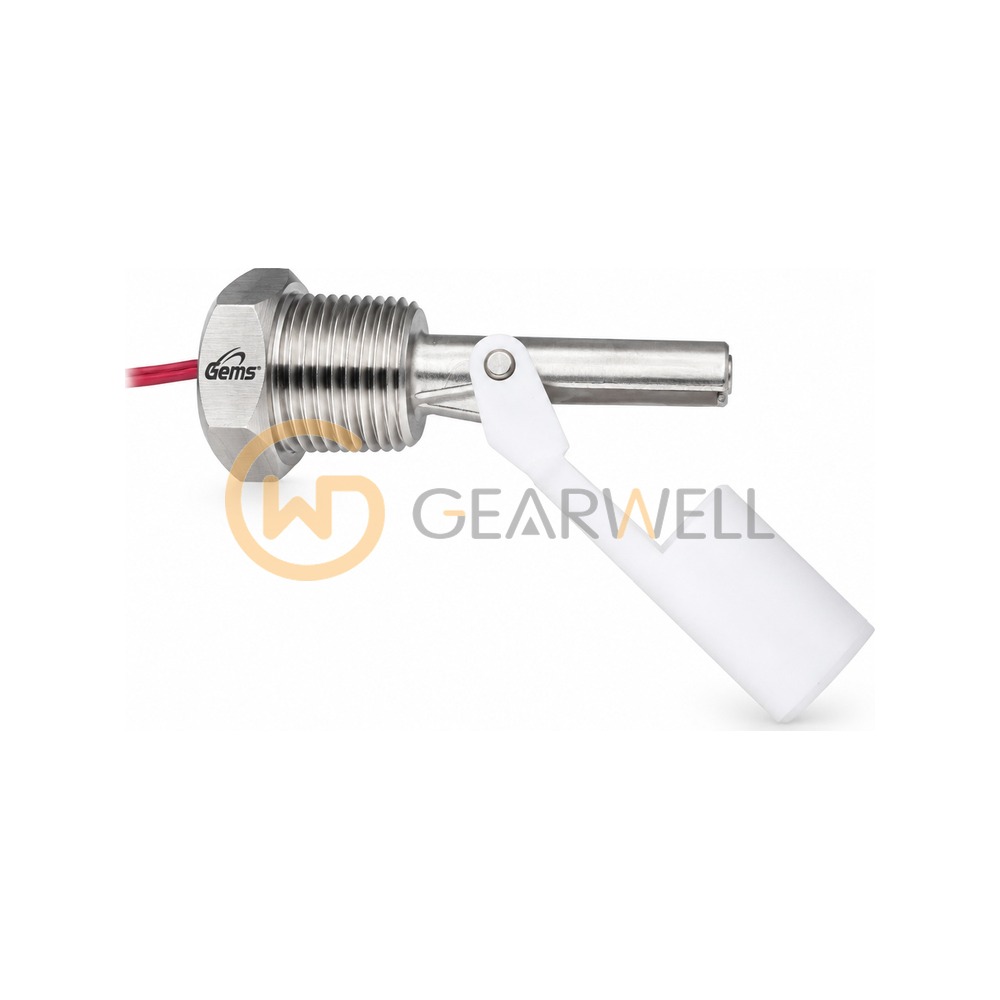

Gems 164520 LS-7 Side-Mount Float Level Switch
- Brand
- Gems
- Model
- 164520
- GEARWELL SKU
- GWP-000034427
- Category
- Pressure, Flow & Temperature
Key specifications
- Mounting
- Horizontal; internal mount, jam nut & gasket sealed
- Part number
- 164520
- Sensor type
- Float, single point
- Switch type
- SPST, 20 VA
- Float diameter
- 0.6875 in
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Gems 164520 LS-7 Side-Mount Float Level Switch |
|---|---|
| Brand | Gems |
| Model | 164520 |
| Category | Pressure, Flow & Temperature |
| Mounting | Horizontal; internal mount, jam nut & gasket sealed |
| Part number | 164520 |
| Sensor type | Float, single point |
| Switch type | SPST, 20 VA |
| Float diameter | 0.6875 in |
| Maximum pressure | 100 psi |
| Switch operation | Normally open (reversible) |
| Type designation | LS-7 Type 3 |
| Factory description | LS-7 TYP3P PP 20VA RD(STK4) |
| Operating temperature | -40 to 225 °F |
| Wetted / float / stem material | Polypropylene |
| Minimum liquid specific gravity | 0.55 |
