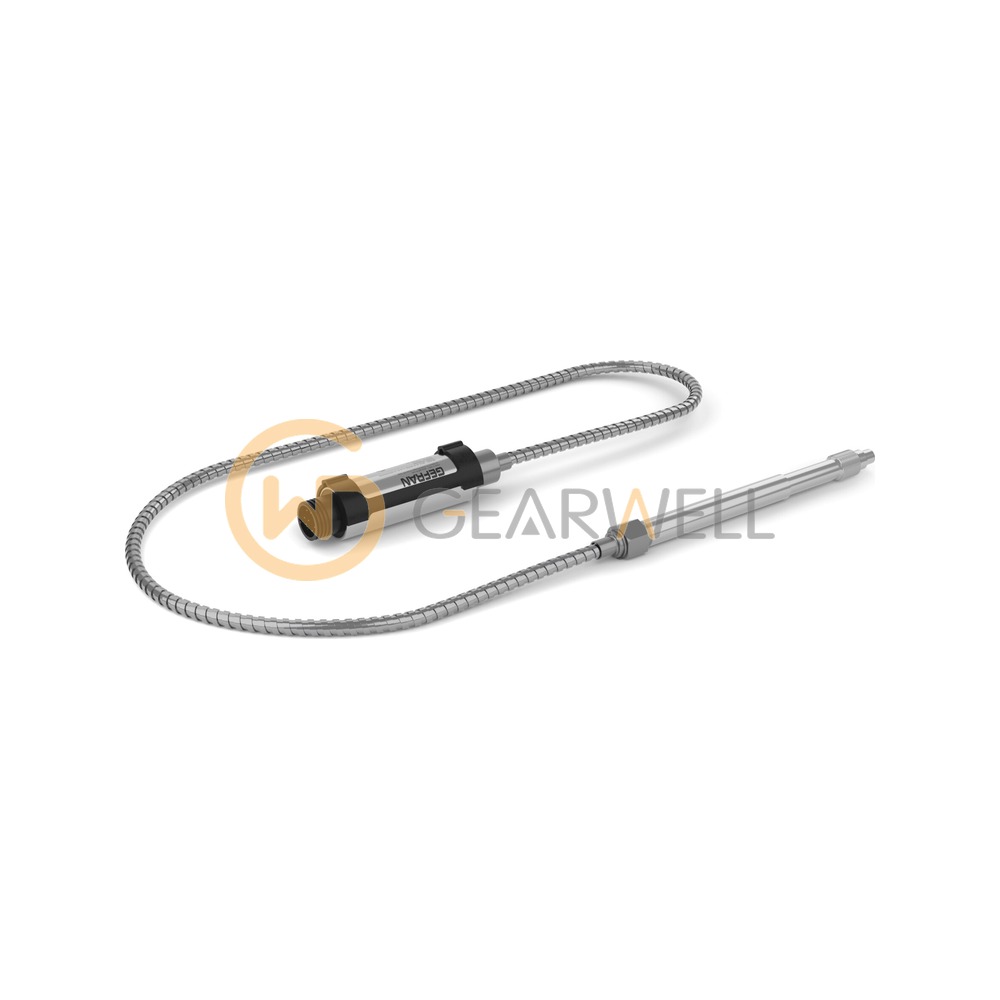

GEFRAN F034080 M20-6-H-B04C-1-4-0 Melt Pressure Transducer
- Brand
- GEFRAN
- Model
- F034080
- GEARWELL SKU
- GWP-000014009
- Category
- Pressure, Flow & Temperature
Key specifications
- Series
- M3
- Version
- Rigid stem
- Output signal
- 2.5 mV/V
- Accuracy class
- <±0.25% FSO (H)
- Process thread
- 1/2-20 UNF
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GEFRAN F034080 M20-6-H-B04C-1-4-0 Melt Pressure Transducer |
|---|---|
| Brand | GEFRAN |
| Model | F034080 |
| Category | Pressure, Flow & Temperature |
| Series | M3 |
| Version | Rigid stem |
| Output signal | 2.5 mV/V |
| Accuracy class | <±0.25% FSO (H) |
| Process thread | 1/2-20 UNF |
| Type designation | M20-6-H-B04C-1-4-0 2130X000X00 |
| Measurement range | 0-400 bar |
| Electrical connection | 6-pin connector VPT07RA10-6PT2 |
| Rigid stem / flexible length | 153 mm (6 in) / None |
| Product ID (Gefran order number) | F034080 |
