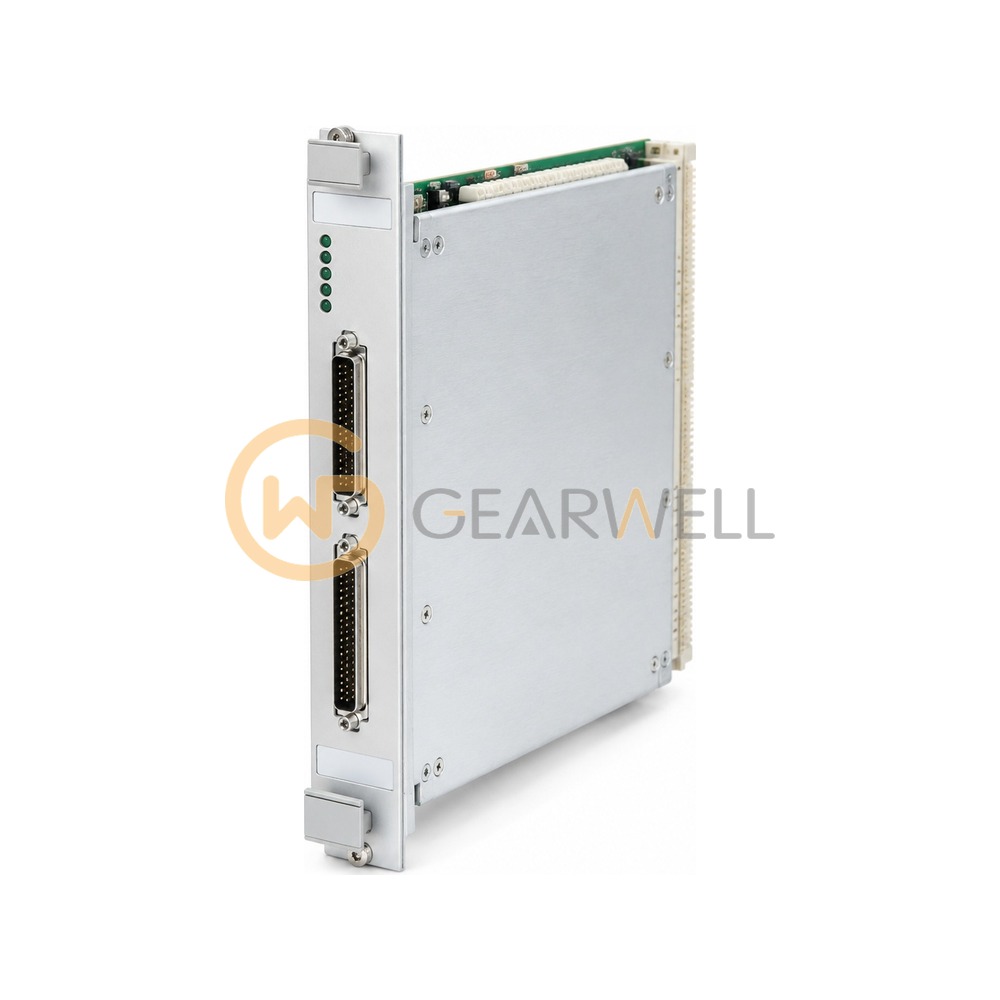

GE IC697BEM733 Series 90-70 Genius Remote I/O Scanner
- Brand
- GE
- Model
- IC697BEM733
- GEARWELL SKU
- GWP-000034326
- Category
- Industrial Communication
Key specifications
- Size
- single slot in IC697 remote rack
- Ports
- one 15-pin RS-422/485 serial port; one 9-pin IC66* Hand-held Monitor port
- Evidence
- GE Fanuc GFK-0539C, Series 90-70 Data Sheet Manual GFK-0600F (hosted at qualitrol.com)
- Baud rate
- 153.6 Kbaud std/ext, 76.8 Kbaud or 38.4 Kbaud (configurable)
- Module type
- IC697 Remote I/O Scanner (IC697BEM733/735)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC697BEM733 Series 90-70 Genius Remote I/O Scanner |
|---|---|
| Brand | GE |
| Model | IC697BEM733 |
| Category | Industrial Communication |
| Size | single slot in IC697 remote rack |
| Ports | one 15-pin RS-422/485 serial port; one 9-pin IC66* Hand-held Monitor port |
| Evidence | GE Fanuc GFK-0539C, Series 90-70 Data Sheet Manual GFK-0600F (hosted at qualitrol.com) |
| Baud rate | 153.6 Kbaud std/ext, 76.8 Kbaud or 38.4 Kbaud (configurable) |
| Module type | IC697 Remote I/O Scanner (IC697BEM733/735) |
| Catalog number | IC697BEM733 |
| Maximum bus length | 7500 ft (2275 m) at 38.4 Kbaud |
| I/O per remote drop | 128 bytes inputs and 128 bytes outputs |
| Current from +5 V bus | 0.8 A |
