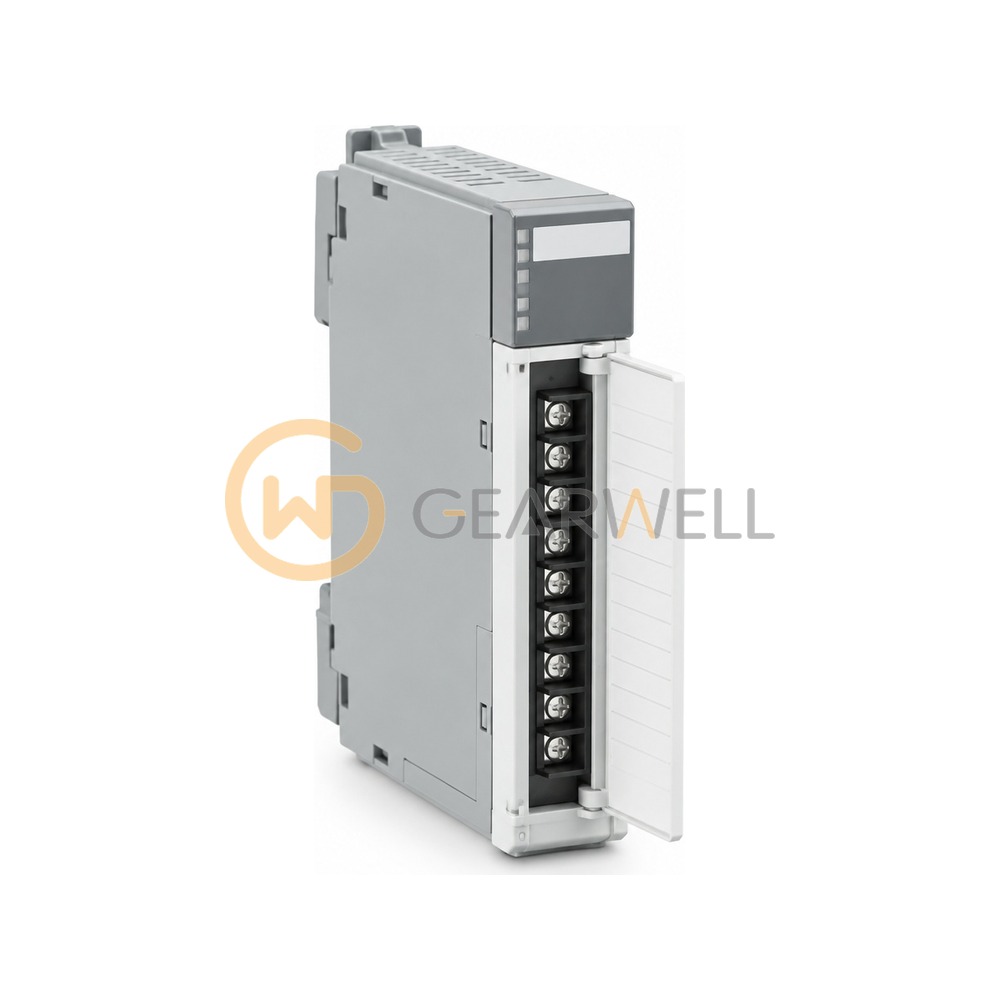

GE IC693MDL340 Series 90-30 120 VAC 16-Point Output Module
- Brand
- GE
- Model
- IC693MDL340
- GEARWELL SKU
- GWP-000034272
- Category
- PLCs & I/O
Key specifications
- Outputs
- 16 (two groups of 8)
- Evidence
- GE Fanuc GFK-0898F Series 90-30 PLC I/O Module Specifications page (maker document hosted at qualitrol.com)
- Isolation
- 1500 V field to logic; 500 V between groups
- Rated voltage
- 120 VAC
- Catalog number
- IC693MDL340
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC693MDL340 Series 90-30 120 VAC 16-Point Output Module |
|---|---|
| Brand | GE |
| Model | IC693MDL340 |
| Category | PLCs & I/O |
| Outputs | 16 (two groups of 8) |
| Evidence | GE Fanuc GFK-0898F Series 90-30 PLC I/O Module Specifications page (maker document hosted at qualitrol.com) |
| Isolation | 1500 V field to logic; 500 V between groups |
| Rated voltage | 120 VAC |
| Catalog number | IC693MDL340 |
| Output current | 0.5 A per point, 3 A per group |
| Backplane power | 315 mA from 5 V bus (all outputs on) |
| Output voltage range | 85 to 132 VAC, 50/60 Hz |
