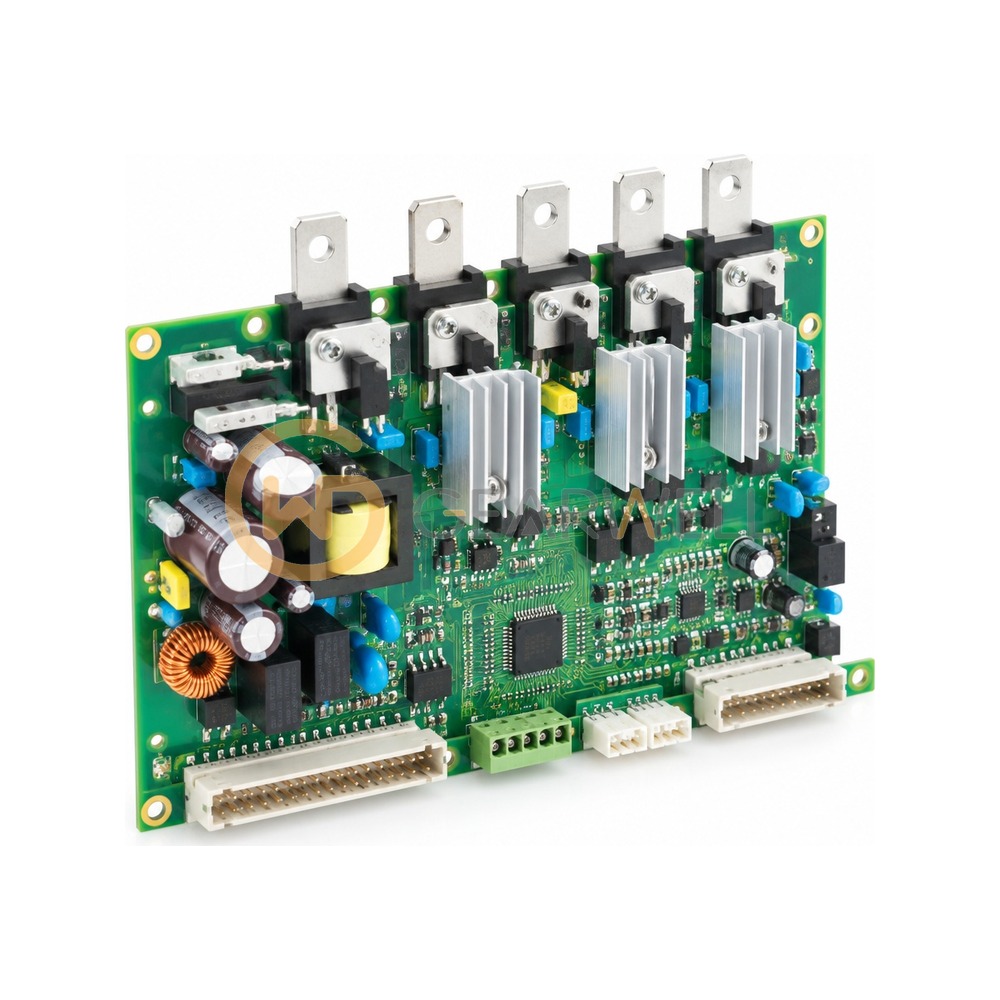

GE DS200SHVMG1A DS200 SCR High Voltage M-Frame Interface Board
- Brand
- GE
- Model
- DS200SHVMG1A
- GEARWELL SKU
- GWP-000025295
- Category
- Variable Frequency Drives
Key specifications
- Output
- 0-500 kHz
- Evidence
- World of Controls (no current official GE page or archived GE PDF found)
- Function
- interfaces SCR bridge signals of an M-frame drive to the DCFB or SDCI power supply board
- Connectors
- 8 plug connectors (PL), 18 stab connectors
- Product type
- SCR High Voltage M-Frame Interface Board
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE DS200SHVMG1A DS200 SCR High Voltage M-Frame Interface Board |
|---|---|
| Brand | GE |
| Model | DS200SHVMG1A |
| Category | Variable Frequency Drives |
| Output | 0-500 kHz |
| Evidence | World of Controls (no current official GE page or archived GE PDF found) |
| Function | interfaces SCR bridge signals of an M-frame drive to the DCFB or SDCI power supply board |
| Connectors | 8 plug connectors (PL), 18 stab connectors |
| Product type | SCR High Voltage M-Frame Interface Board |
| Shunt input range | -500 to +500 mV |
| Current transformers | jumper-selectable 10:1 |
| LEDs / fuses / testpoints / switches | none |
