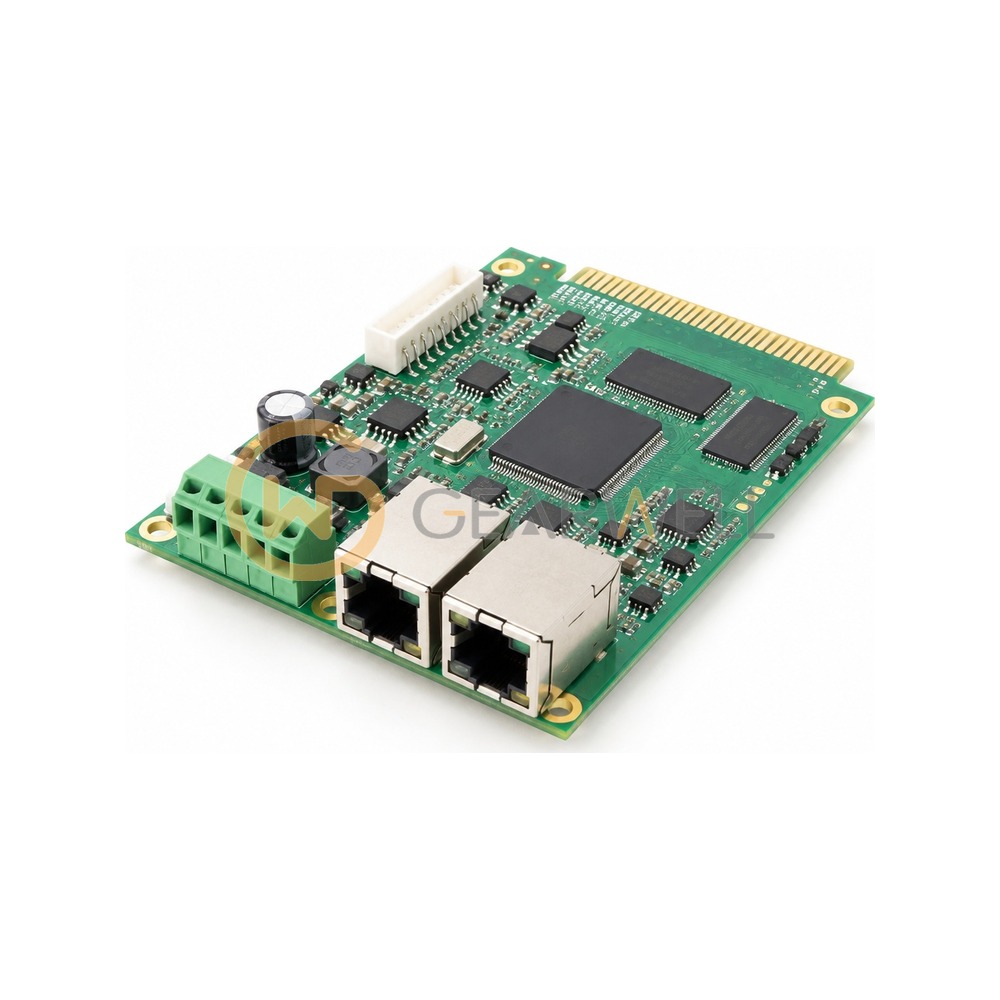

GE 531X307LTBAJG1 LTB LAN Terminal Board
- Brand
- GE
- Model
- 531X307LTBAJG1
- GEARWELL SKU
- GWP-000025226
- Category
- Variable Frequency Drives
Key specifications
- Group
- G1
- Inputs
- 8 (IN1-IN8): 24-230 V ac 60 Hz, 115-230 V ac 50 Hz, 24-250 V dc
- Manual
- GEI-100022B
- Base number
- 531X307LTB
- Control outputs
- 7 form C relay contact connectors (OT1-OT7)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE 531X307LTBAJG1 LTB LAN Terminal Board |
|---|---|
| Brand | GE |
| Model | 531X307LTBAJG1 |
| Category | Variable Frequency Drives |
| Group | G1 |
| Inputs | 8 (IN1-IN8): 24-230 V ac 60 Hz, 115-230 V ac 50 Hz, 24-250 V dc |
| Manual | GEI-100022B |
| Base number | 531X307LTB |
| Control outputs | 7 form C relay contact connectors (OT1-OT7) |
| Type designation | LAN Terminal Board (LTB) |
| Configuration / revision | A / J (per GE board identification key 531X307LTBcrG#) |
| Input thresholds (rev. AG and later) | turn-on 9 V / 4.6 mA; turn-off 6 V / 1.0 mA |
