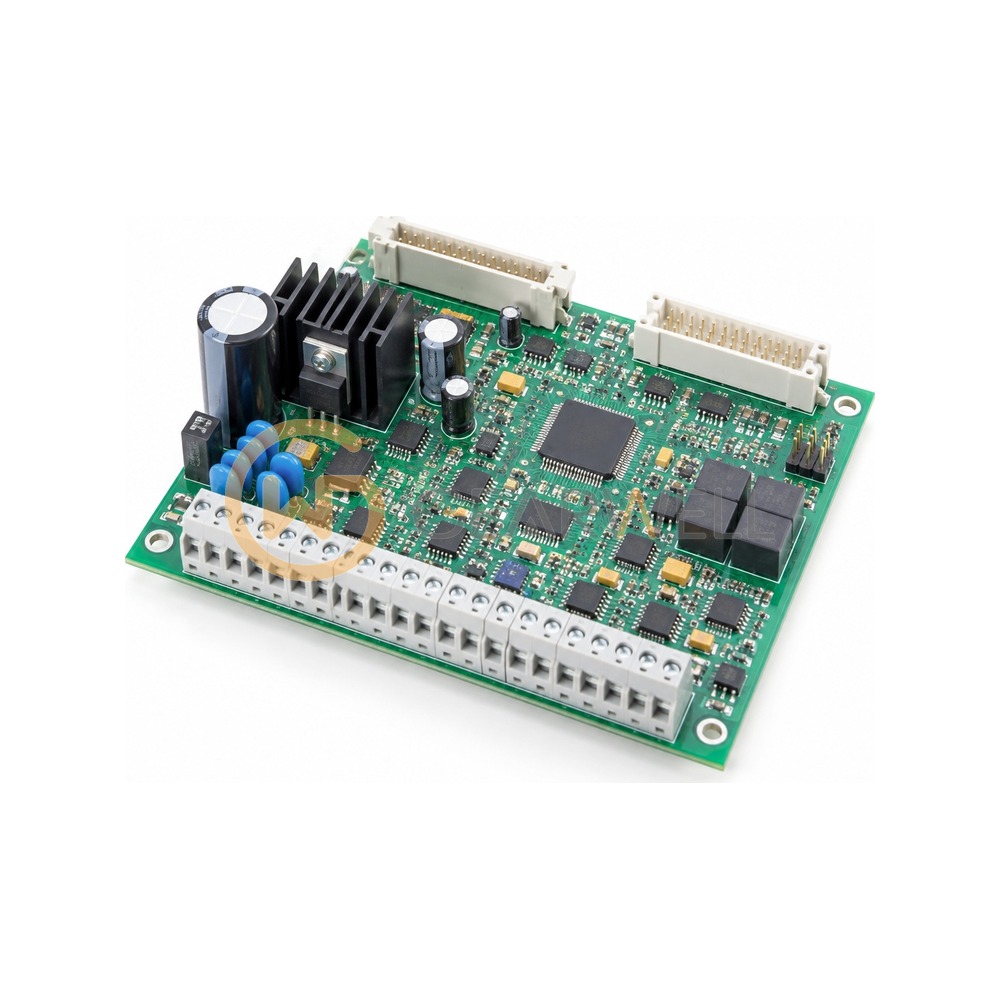

GE 531X305NTBAPG1 NTB/3TB Drive Terminal Board
- Brand
- GE
- Model
- 531X305NTBAPG1
- GEARWELL SKU
- GWP-000025225
- Category
- Variable Frequency Drives
Key specifications
- Group
- G1
- Manual
- GEI-100020B
- Base number
- 531X305NTB
- Relay outputs
- 7 relays, 120 V ac, 1 A contacts
- Type designation
- NTB/3TB terminal board
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE 531X305NTBAPG1 NTB/3TB Drive Terminal Board |
|---|---|
| Brand | GE |
| Model | 531X305NTBAPG1 |
| Category | Variable Frequency Drives |
| Group | G1 |
| Manual | GEI-100020B |
| Base number | 531X305NTB |
| Relay outputs | 7 relays, 120 V ac, 1 A contacts |
| Type designation | NTB/3TB terminal board |
| Encoder interface | differential A-quad-B with marker, +5 V or ±15 V by jumper |
| Regulated outputs | +5 V dc and ±15 V dc, 300 mA each |
| Serial interfaces | RS-232C, RS-422 |
| Unregulated outputs | ±24 V dc 500 mA; 120 V ac 0.5 A |
| Configuration / revision | A / P (per GE board identification key 531X305NTBcrG1) |
