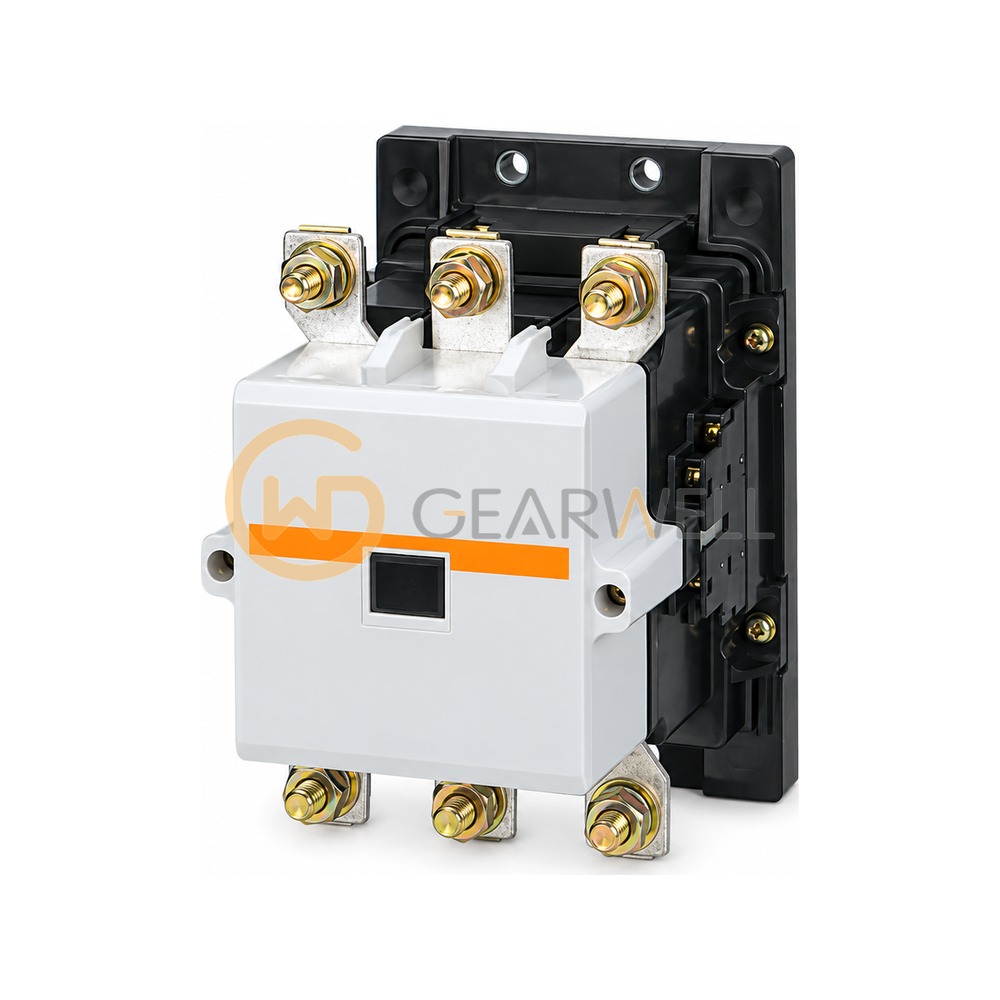

Fuji Electric SC-N84-C SC-N8 Magnetic Contactor
- Brand
- Fuji Electric
- Model
- SC-N84-C
- GEARWELL SKU
- GWP-000016501
- Category
- Contactors & Starters
Key specifications
- Base type
- SC-N8 (Fuji Electric China SC series)
- Code suffix "4"
- as collected; not listed in the official model-number table
- Conventional free-air thermal current
- 260 A
- Rated operational current AC-3, 200-240 V
- 180 A
- Rated operational current AC-3, 380-440 V
- 180 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Fuji Electric SC-N84-C SC-N8 Magnetic Contactor |
|---|---|
| Brand | Fuji Electric |
| Model | SC-N84-C |
| Category | Contactors & Starters |
| Base type | SC-N8 (Fuji Electric China SC series) |
| Code suffix "4" | as collected; not listed in the official model-number table |
| Conventional free-air thermal current | 260 A |
| Rated operational current AC-3, 200-240 V | 180 A |
| Rated operational current AC-3, 380-440 V | 180 A |
| Rated capacity AC-3, 3-phase motor, 200-240 V | 55 kW |
| Rated capacity AC-3, 3-phase motor, 380-440 V | 90 kW |
