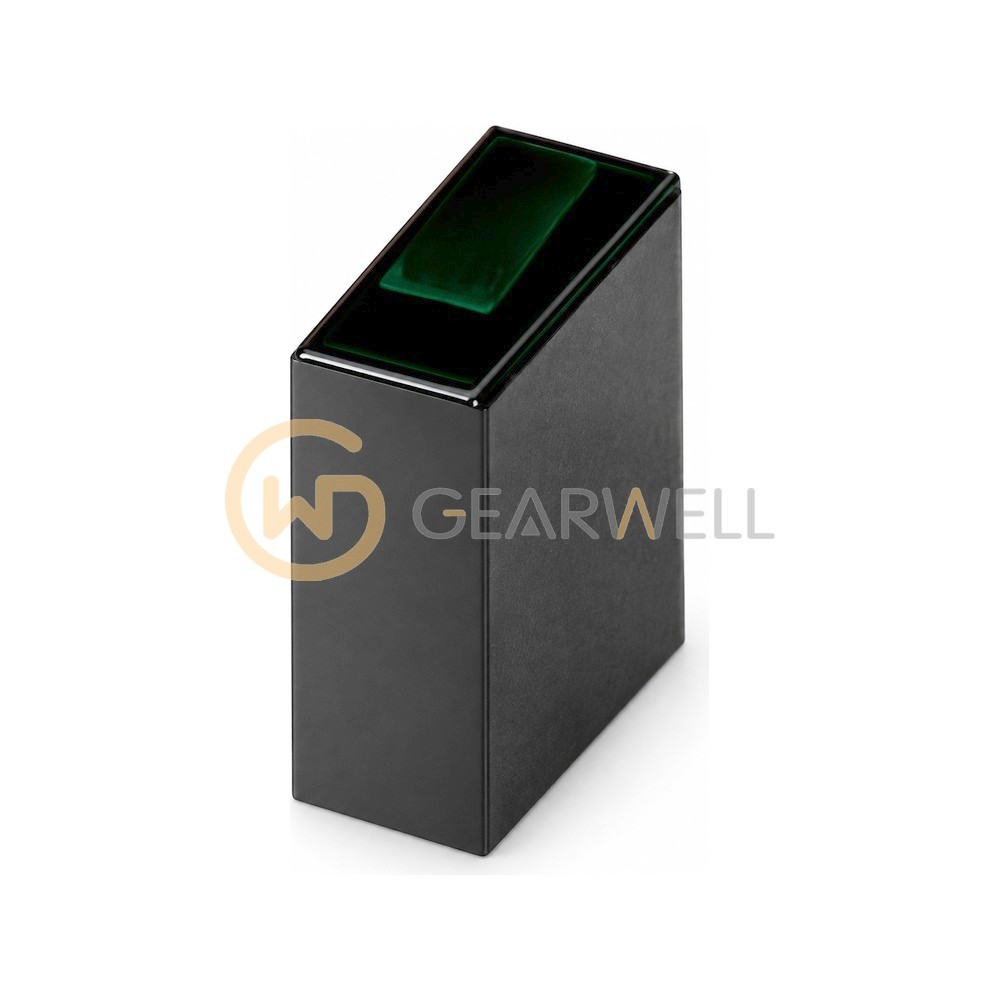

FOTEK SSR-R05DD SSR-R Relay Type DC to DC Solid State Relay
- Brand
- FOTEK
- Model
- SSR-R05DD
- GEARWELL SKU
- GWP-000012979
- Category
- Contactors & Starters
Key specifications
- Input voltage
- 4-32 VDC
- Response time
- 1.0 ms
- Surge current
- 15 A min.
- Control method
- Random
- Output voltage
- 5-60 VDC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FOTEK SSR-R05DD SSR-R Relay Type DC to DC Solid State Relay |
|---|---|
| Brand | FOTEK |
| Model | SSR-R05DD |
| Category | Contactors & Starters |
| Input voltage | 4-32 VDC |
| Response time | 1.0 ms |
| Surge current | 15 A min. |
| Control method | Random |
| Output voltage | 5-60 VDC |
| Leakage current | 1.0 mA max. |
| Trigger current | 12 mA max. |
| Application temperature | Ta < 50 °C |
| Rated current (resistive load) | 5 A max. |
