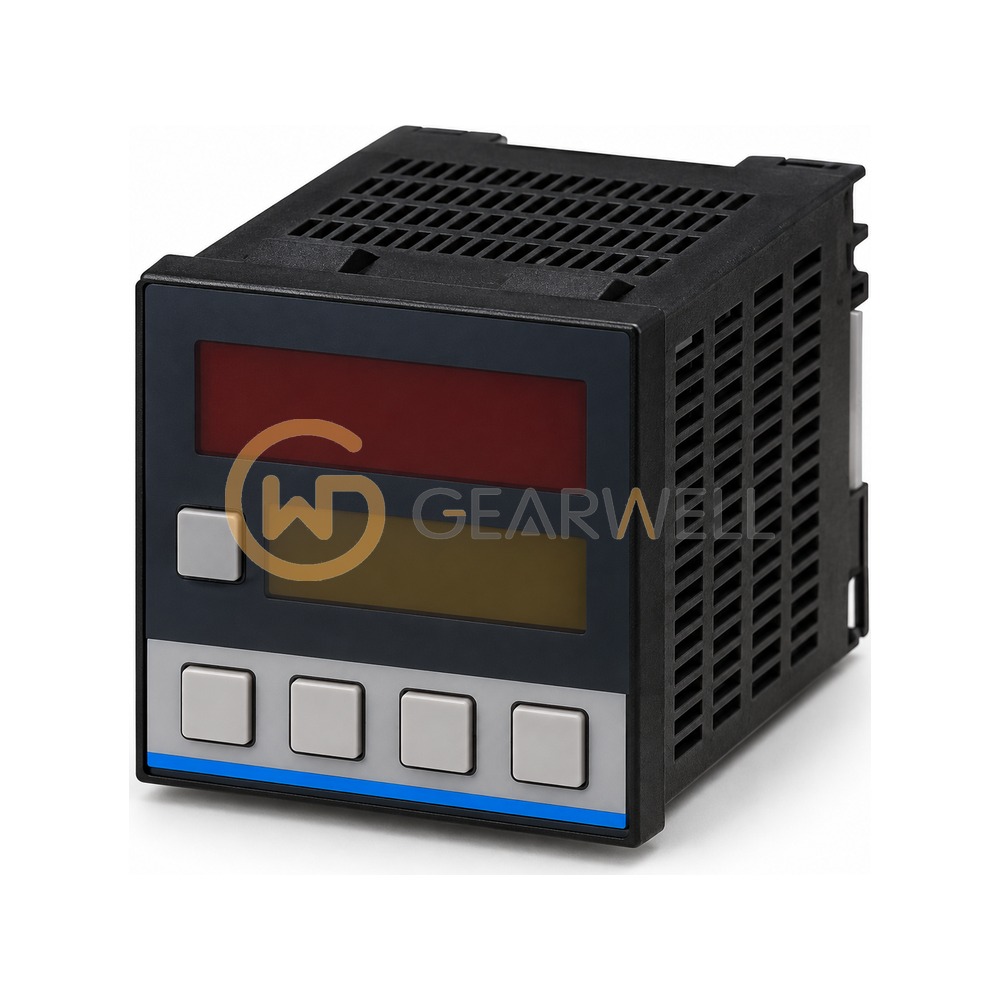

FOTEK MC-362 MC Series DIN 72x72 Dual Preset Multi-function Counter
- Brand
- FOTEK
- Model
- MC-362
- GEARWELL SKU
- GWP-000012971
- Category
- Test & Measurement
Key specifications
- Digits
- 6
- Memory
- EEPROM
- Output
- Two relay, 3 A / 250 VAC
- Preset
- Dual
- Outline
- DIN 72 x 72
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FOTEK MC-362 MC Series DIN 72x72 Dual Preset Multi-function Counter |
|---|---|
| Brand | FOTEK |
| Model | MC-362 |
| Category | Test & Measurement |
| Digits | 6 |
| Memory | EEPROM |
| Output | Two relay, 3 A / 250 VAC |
| Preset | Dual |
| Outline | DIN 72 x 72 |
| DC output | 12 V / 100 mA max. |
| Input method | NPN single or two phase selectable |
| Power supply | 90-265 VAC 50/60 Hz |
| Response time | 0.1 ms - 999.9 ms settable |
| Operating temperature/humidity | -20 to +80 °C; 35-85% RH |
