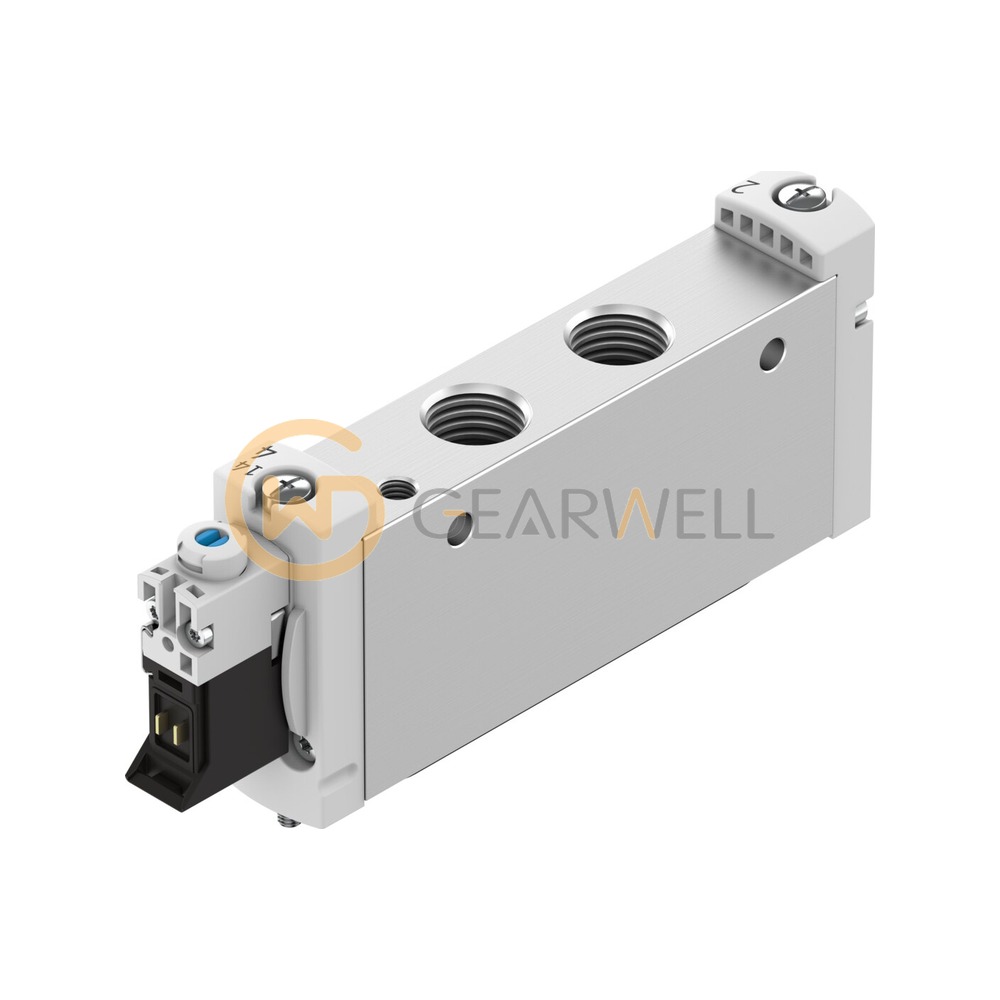

FESTO VUVG-L18-M52-G14-1P3 Solenoid Valve
- Brand
- FESTO
- Model
- VUVG-L18-M52-G14-1P3
- GEARWELL SKU
- GWP-000011605
- Category
- Valves & Manifolds
Key specifications
- Size
- 18
- Valve type (L)
- In-line valve
- Valve function (M52)
- 5/2-way valve, single solenoid/monostable
- Reset method options
- A / M / R (specify on order)
- Manual override options
- None / H / S / Y / T (specify on order)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FESTO VUVG-L18-M52-G14-1P3 Solenoid Valve |
|---|---|
| Brand | FESTO |
| Model | VUVG-L18-M52-G14-1P3 |
| Category | Valves & Manifolds |
| Size | 18 |
| Valve type (L) | In-line valve |
| Valve function (M52) | 5/2-way valve, single solenoid/monostable |
| Reset method options | A / M / R (specify on order) |
| Manual override options | None / H / S / Y / T (specify on order) |
| Electrical connection (P3) | Without electrical sub-base |
| Pneumatic connection (G14) | G1/4 |
| Related Festo part number | 574429 (VUVG-L18-M52-MT-G14-1P3) |
| Nominal operating voltage (1) | 24 V DC |
